Screen printing UV varnish/ Cold foil stamping/Hologram transfer (Cast&cure)

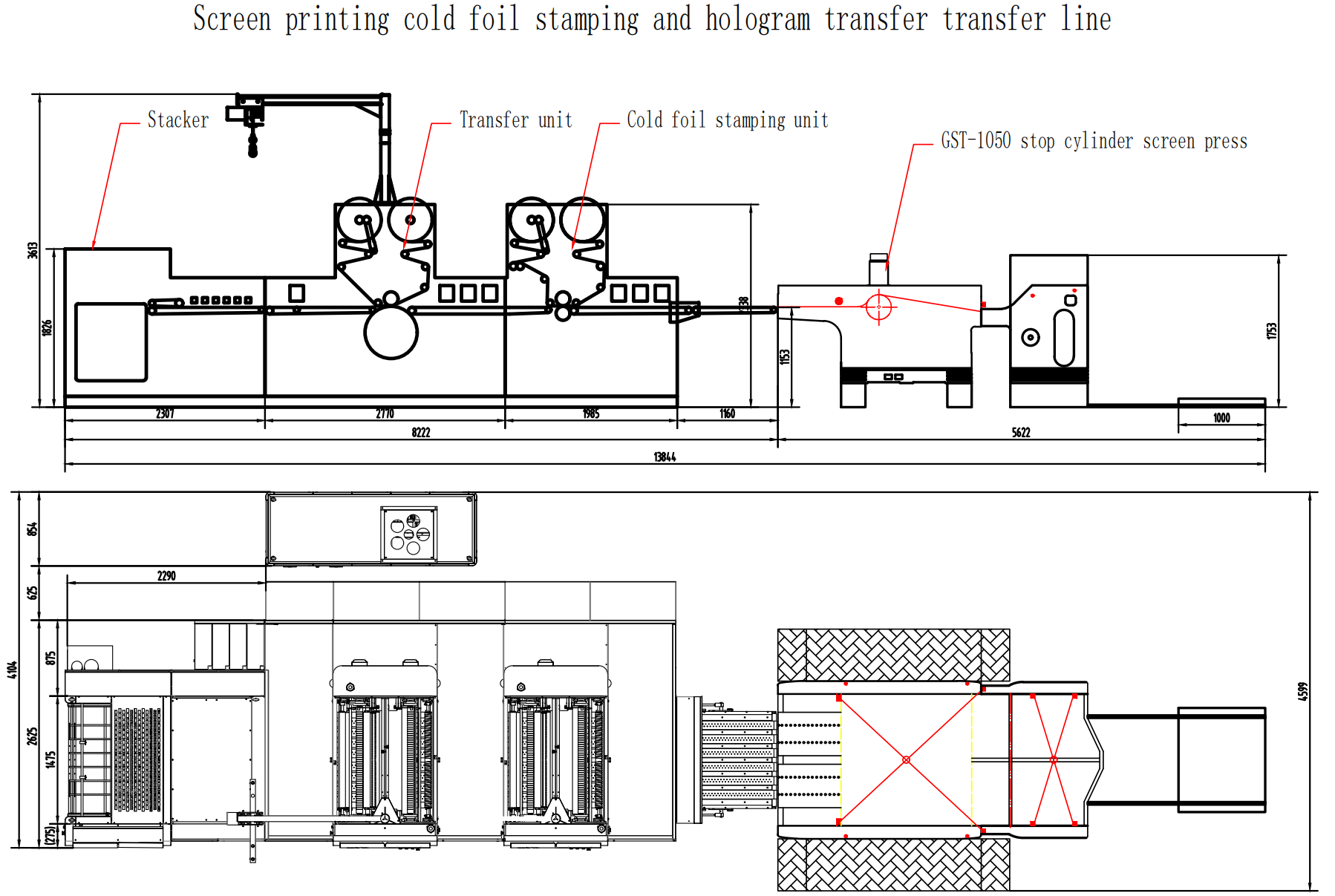

Producing line photo
Floor Plan

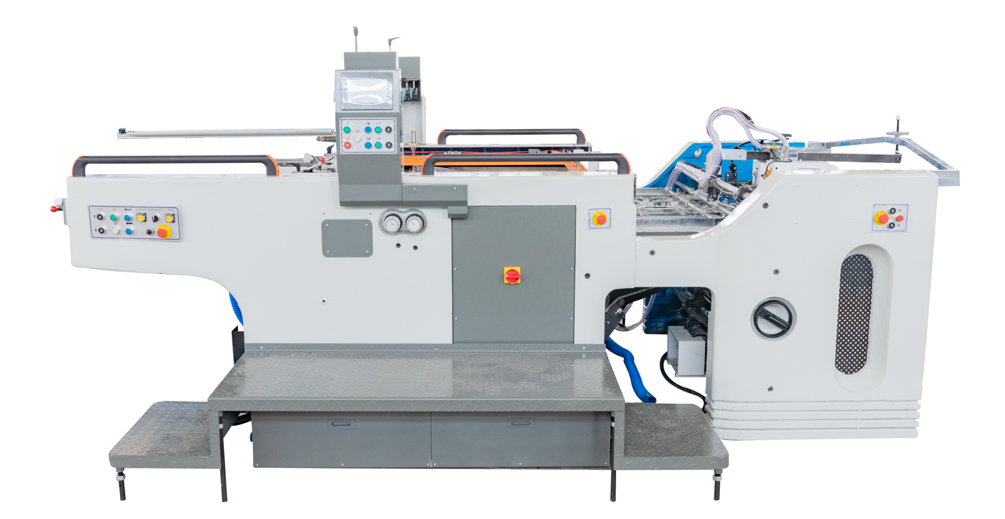

GST1050 Automatic stop cylinder screen printing machine
Main features:
1. Driven by a special brake motor for frequency conversion, the whole machine is centrally controlled and operated by Mitsubishi PLC programmable controller, 7-inch color touch screen operation interface, displaying all functional data, printing operation is simpler and more convenient;
2. Automatic optical fiber positioning detection throughout the process, line failure, paperless, jammed scraper automatically rise and stop or not, reduce the waste of printing paper;
3. Set up a perfect alarm bell alarm system to prompt the operator to carry out targeted troubleshooting, so that maintenance is easy and fast;
4. The whole set of electrical components are imported products from Schneider and Yaskawa, which greatly improves the stability of the electrical system and reduces the frequency and difficulty of maintenance and overhaul;
5. The cast iron frame and some components precision processed by the CNC "machining center" ensure the accuracy of key parts and ensure the stable and long-term rapid operation of the machine;
6. The printing cylinder is made of stainless steel 316L material, which is precise and durable; The flexible range of the paper tooth is designed to be flexible, which is convenient to adjust at any time when printing on different thicknesses and thin papers;
7. The paper output table that can be flipped 90 degrees, double conveying adjustable speed belt, practical size paper, convenient for screen cleaning, loading and unloading; Screen plate fine-tuning device, which can be adjusted in all directions up and down, front and back, left and right;
8. Good gray cast iron (HT250), wall plate and base cast by aluminum mold, after aging treatment, and then processed by imported large-scale three-dimensional machining center, high precision level requirements, smaller processing error, the operation of the whole machine is more stable and reliable.
9. Centralized lubrication control system: automatic lubrication of main transmission components, effectively prolonging the use accuracy and machine life;
10. The appearance is made of environmentally friendly primer, which is carefully polished and painted, and finally the outer surface cover varnish;
11. All pneumatic components adopt Taiwan Airtac brand, and the air pump adopts Becker vacuum pump;
12. Printing knife and feeder platform are precisely controlled by separate brakes, and the pressure is uniform;
13. The machine automatically detects whether there is paper or not, and automatically increases and lowers the speed;
14. One-button pneumatic switching device for pulling&pushing side lay
15. Mesh frame drawer design, can be pulled out as a whole, which is convenient for cleaning and loading and unloading of screen plates, and convenient for the calibration and adjustment of screen plates and prints.
Main technical parameter
Model | GST-1050 |
Max. paper size | 1050 X 750mm |
Min. paper size | 500 X 350mm |
Max. Printing size | 1050 X 740mm |
Paper thickness*1 | 90-420gsm |
Registration accuracy | ≤0.10mm |
Frame size | 1300 x 1170mm |
Margin | ≤12mm |
Printing speed*2 | 600-4000pcs/h |
Power | 3P 380V 50HZ 11.0KW |
Weight | 5500KGS |
Overall size | 3750X3100X1750mm |
*1 Depends on the material hardness
*2 Depends on the kind of printing substrate and printing conditions, figures may be changed
Remark:
Equipped with independent single sheet paper reduction mechanism, feeding is more stable and reliable
Front gauge, pull gauge Japanese Keyence fiber inspection;
The paper conveying table photoelectric detection of whether there is material, deceleration and shutdown;
The latest double sheet detector
Details

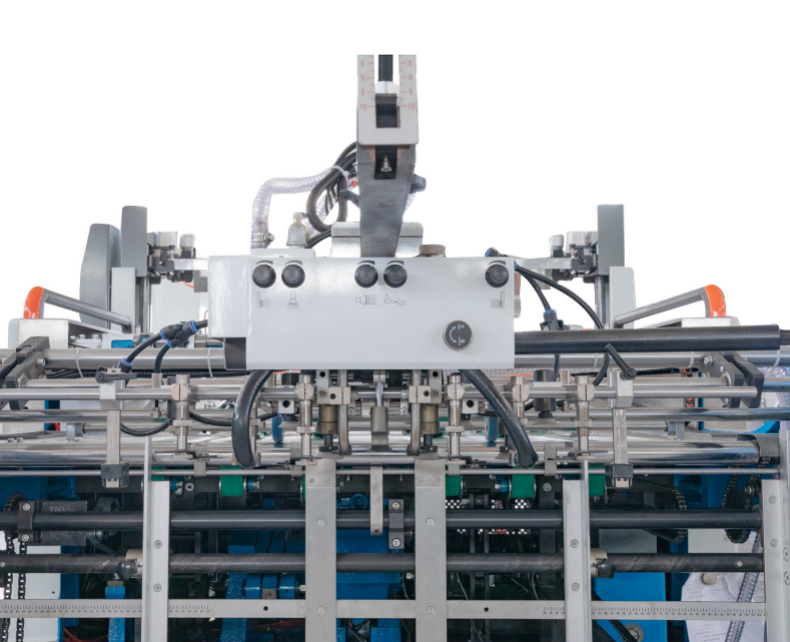

1. Feeder
The original rear pick-up feeder technology taken from the offset Press, ensures stable and smooth feeding of various types of substrate. Dependent on the substrate, overlapped or single sheet feed can be selected easily. Four suck and four delivery feeding system.
2. Delivery board
Imported stain steel delivery board, less static and friction. Rubber and the nylon wheel are suitable for the thin and thick paper adjustment

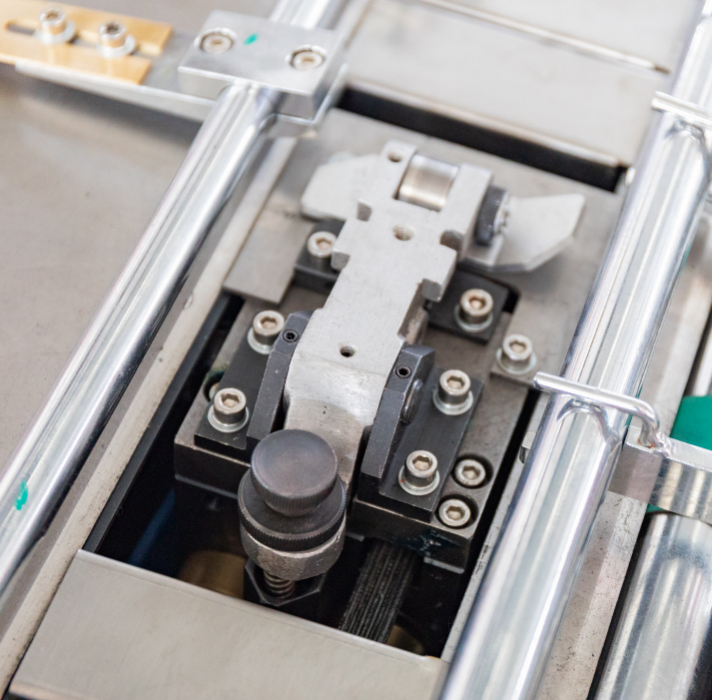

3. New designed pull and push lay
Controlled by the pneumatic switch, easy to switch the thin paper and thick paper, specially suitable for E-corrugated board printing
4. Paper output table

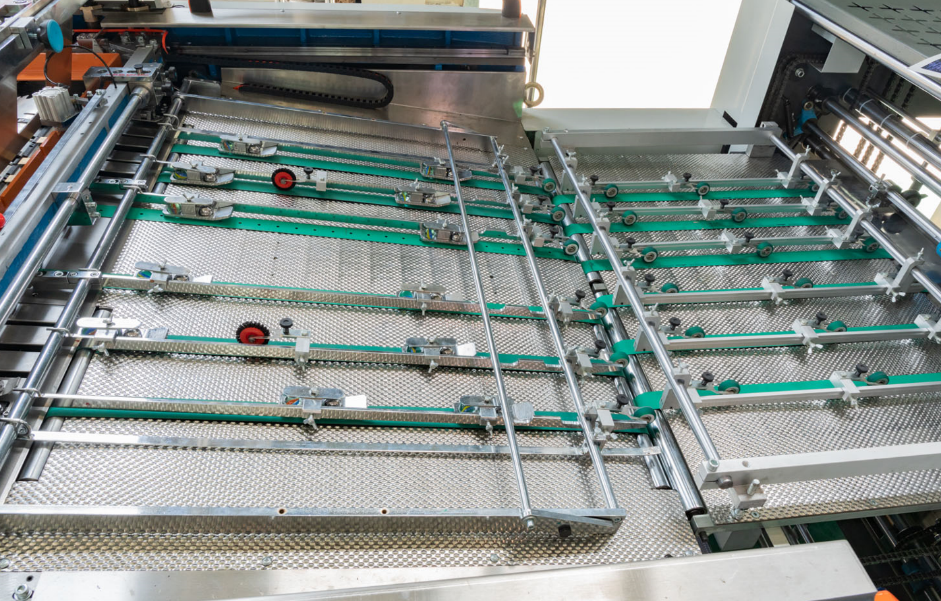

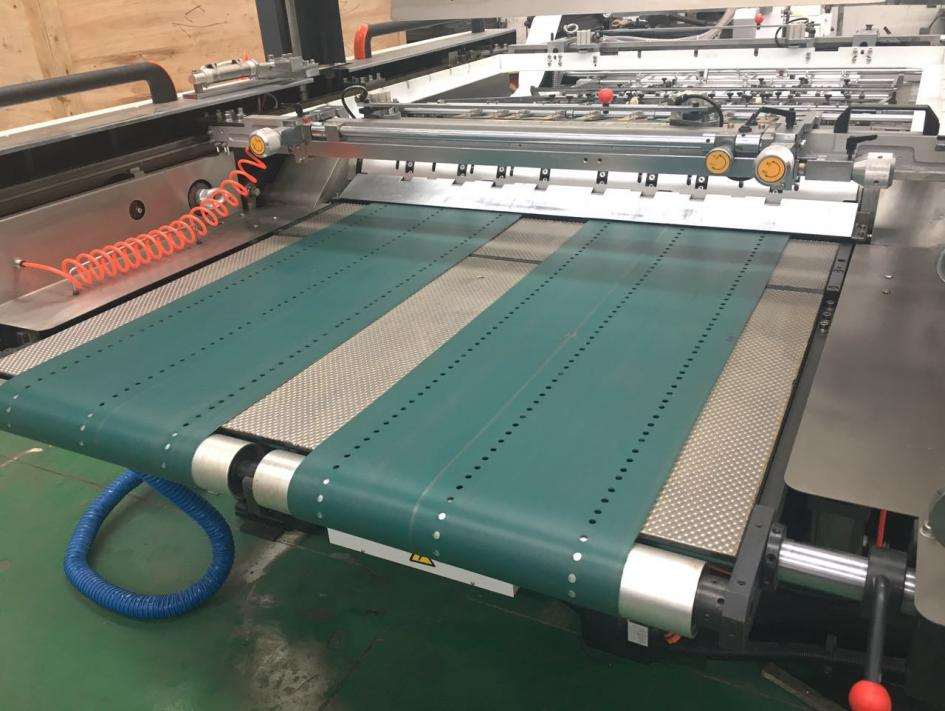

Double vacuum conveyor belt, controlled by the independent frequency. Suitable for different sheet size, avoid the damage to sheets and prevent the paper stuck,
The paper output table that can be flipped 90 degrees, convenient for screen cleaning, loading and unloading

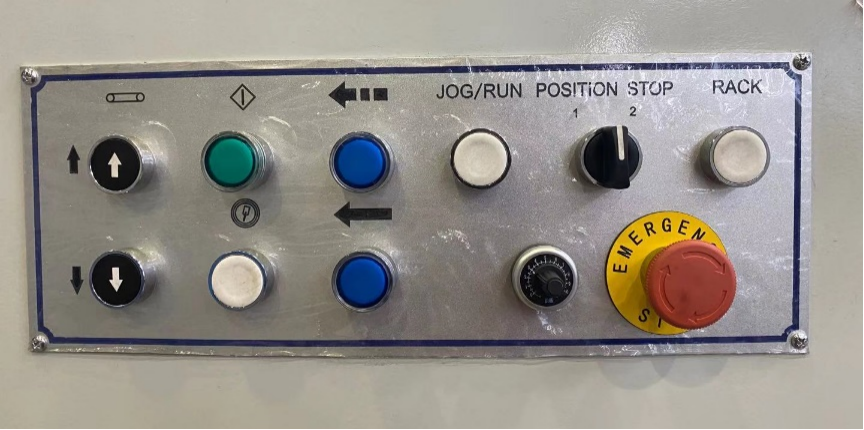

5. Mitsubishi PLC, Yaskawa Frequency components, to ensure the system reliability and stability, the redesigned operation panel operation is more convenient and humanized

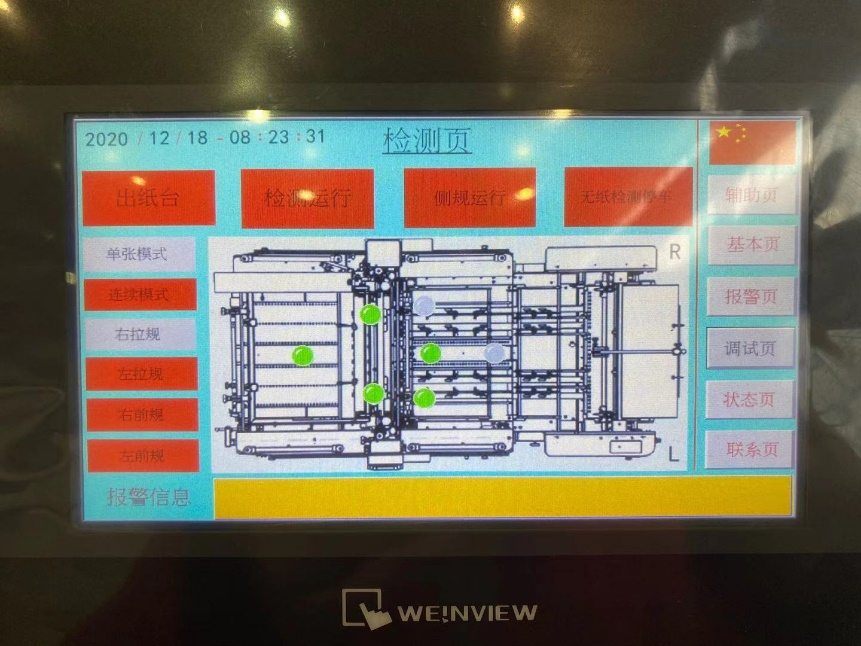

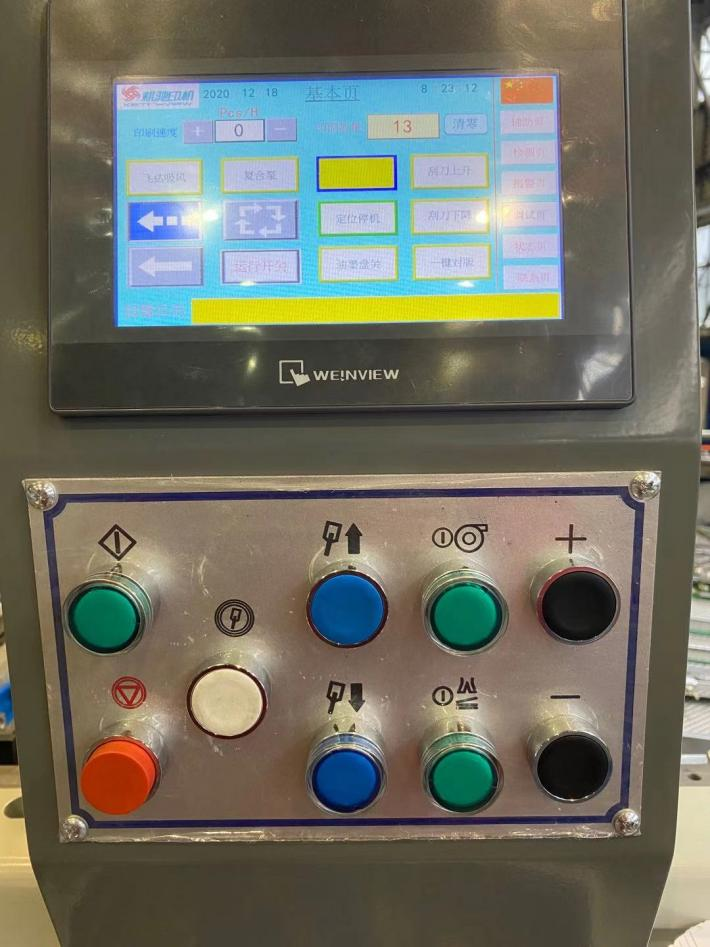

6.The operating system is equipped with a 7-inch touch screen, and the redesigned interface makes it more convenient and faster, and the operation is more intuitive.

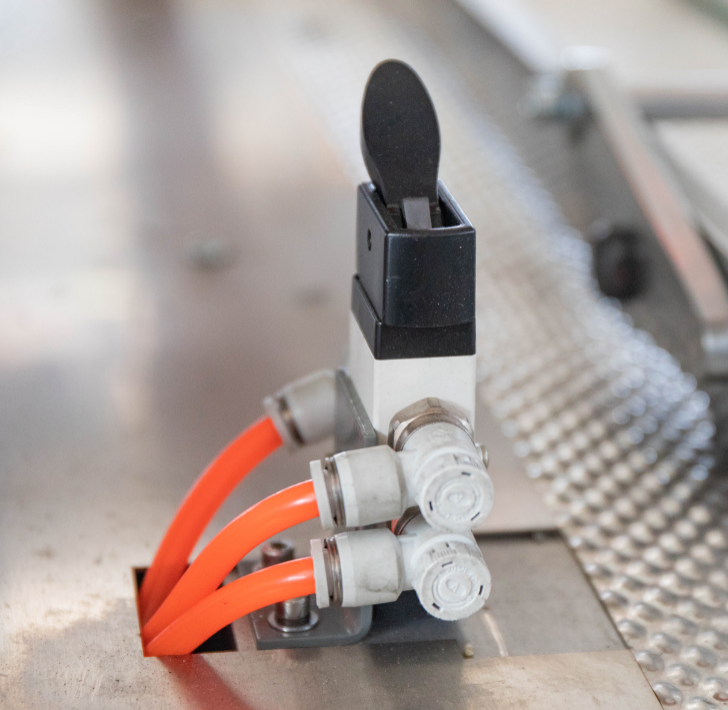

7. The complete set of AirTAC pneumatic system reliable pressure holding performance and long service life.
GUVY-1060ACS Cold foil Stamping machine with cast&cure
Cold Foil Stamping+ Hologram Transfer + Paper Collection with Cold Wind + Snowflake+Wrinkles
This unit can be connected with full automatic screen printing machine, UV spot varnishing machine, Offset printing machine, Single Color Gravure printing machine etc. Aiming to achieve Hologram transferring effect, different type of Cold foil effect.
It is widely used in high-grade anticounterfeiting printing substrate such as cigarette, wine, medicine, cosmetic, food, digital product, toys, books etc. Different types of paper sheet, plastic sheet packaging.
Functional modular splicing design
Both single machine and combination of high performance, to achieve cold foil stamping, hologram transfer, UV glazing, snowflake and other multi-process combination effect, one-time completion of post-press processing production.
The splicing design has the advantages of compact structure and strong compatibility. It can be used in single machine or multi-module combination, flexible expansion and easy maintenance on demand.
The height can be customized according to the supporting equipment and site environment to achieve the effect of superposition of process, reduce the feeding times and logistics transfer between processes, reduce operators and improve production efficiency. The machine is equipped with safety switch or sensor to ensure production safety.
Features
Material saving
It has good protective effect on the printed products which can avoid glazing process, the laser film can be recycled without any treatment. Comparing with the composite process, it can save money.
Environmental protection
The process adopts a post-processing method of embossing on semi-finished printed products, only leaving laser text and patterns on the product which is conducive to the recycling or natural degradation of wasting printed products.
Anti-fake
A、The process can use special laser anti-counterfeiting graphics, customers can recognize it easy.
B、Our machine can achieve the laser effect locally in a specific pattern position easily.
C、This process has an obvious feature of tearing and no film, which is also impossible to achieve with the current composite method.
Beauty
The machine can set off the transparent laser pattern and the printed matter together, and nicer than normal.
Technical parameter
Model | 106AS | 106CS | 106ACS |
Hologram transfer (cast &cure) | √ | √ | |
Cold foil stamping | √ | √ | |
Cold air paper receiving unit | √ | √ | √ |
Maximum working size(mm) | 740*1060 | 740*1060 | 740*1060 |
Minimum working size(mm) | 393*546 | 393*546 | 393*546 |
Maximum transfer size(mm) | 730*1030 | 730*1030 | 730*1030 |
Paper weight(g) | 90-450 | 128-450 | 90-450 |
Maximum diameter of film material(mm) | Φ500 | Φ500 | Φ500 |
Maximum width of film material(mm) | 1060 | 1060 | 1060 |
Name of membrane material | BOPP | BOPP/PET | BOPP/PET |
Maximum speed(sheet/h) (Depends on paper size, UV varnish and transfer film) | 4000 (When the paper is 90-150g, its working format ≤600mm*500mm, printing speed ≤4000 sheets) | 2200 (When the paper is 128-150g, its working format ≤600mm*500mm, printing speed ≤1000 sheets) | |
SIZE(m) | 6.2*4.1*3.8 | 6.2*4.1*3.8 | 8.2*4.1*3.8 |
Total weight(T) | ≈6.3 | ≈6 | ≈10.4 |
1.The highest mechanical speed depends on paper specifications, UV varnish, cold stamping glue, transfer film, cold stamping film.
2.When doing cold stamping function, the gram weight of paper is 150-450g.
Samples

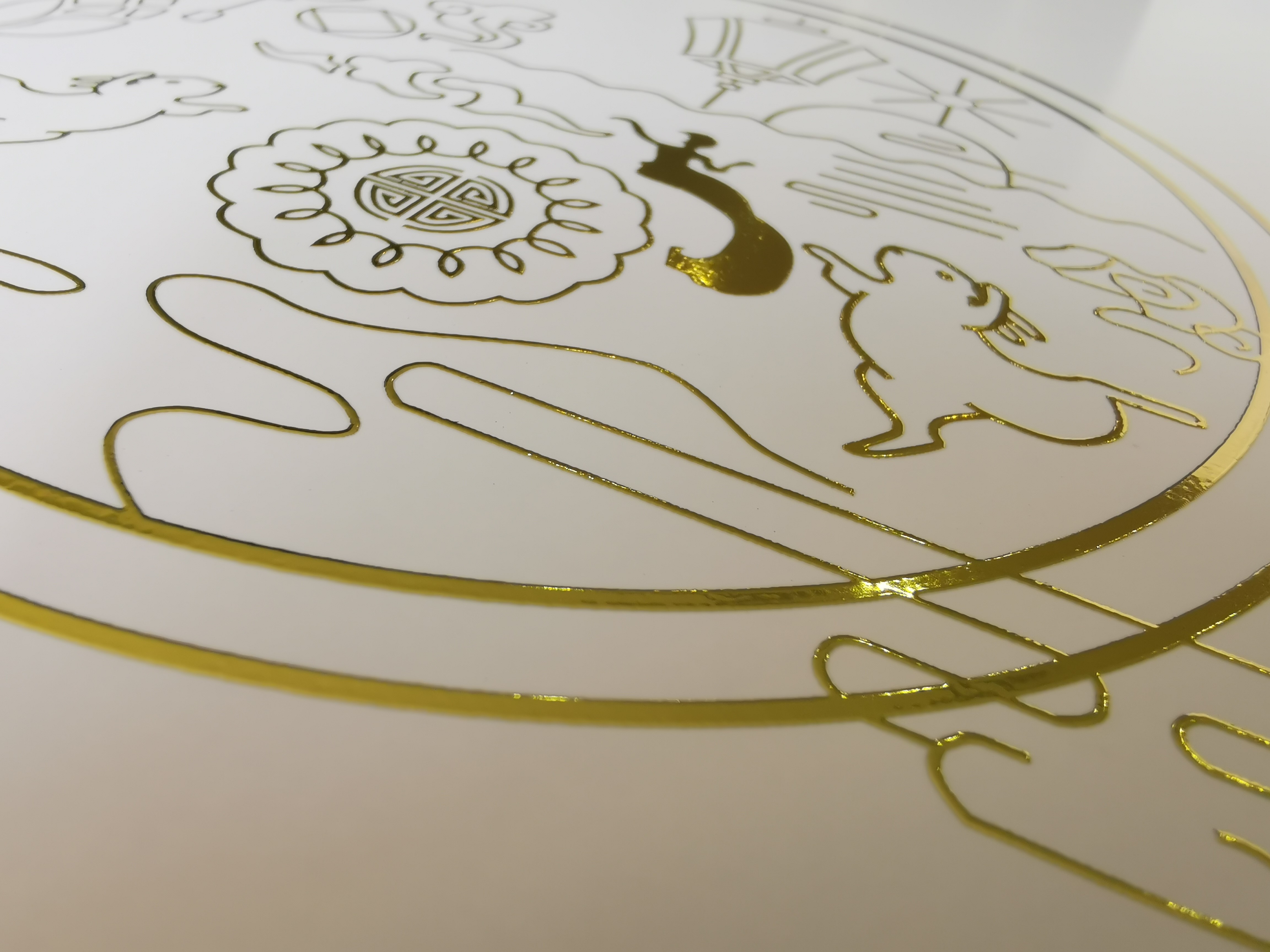

Cold foil Stamping
Hologram images transferring (cast& cure)
