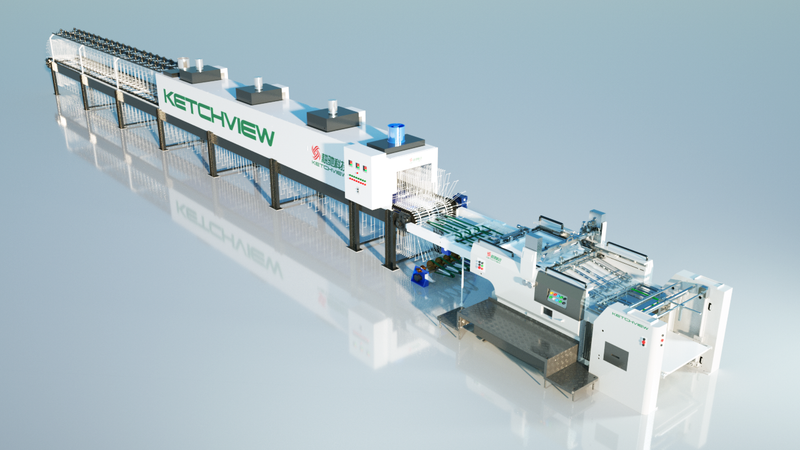

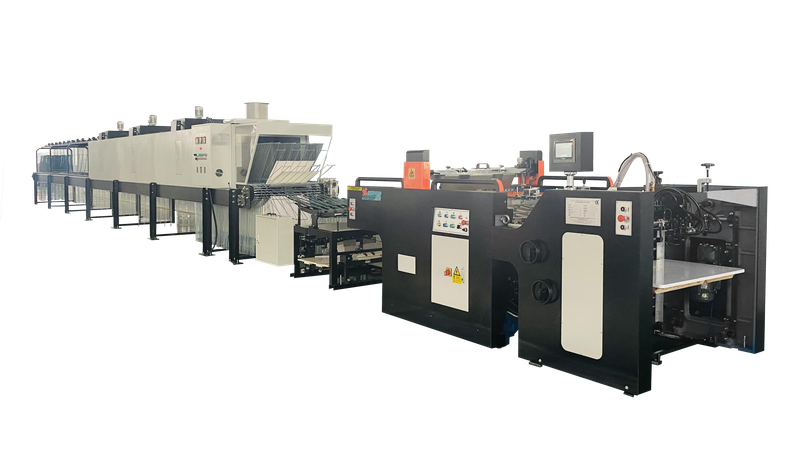

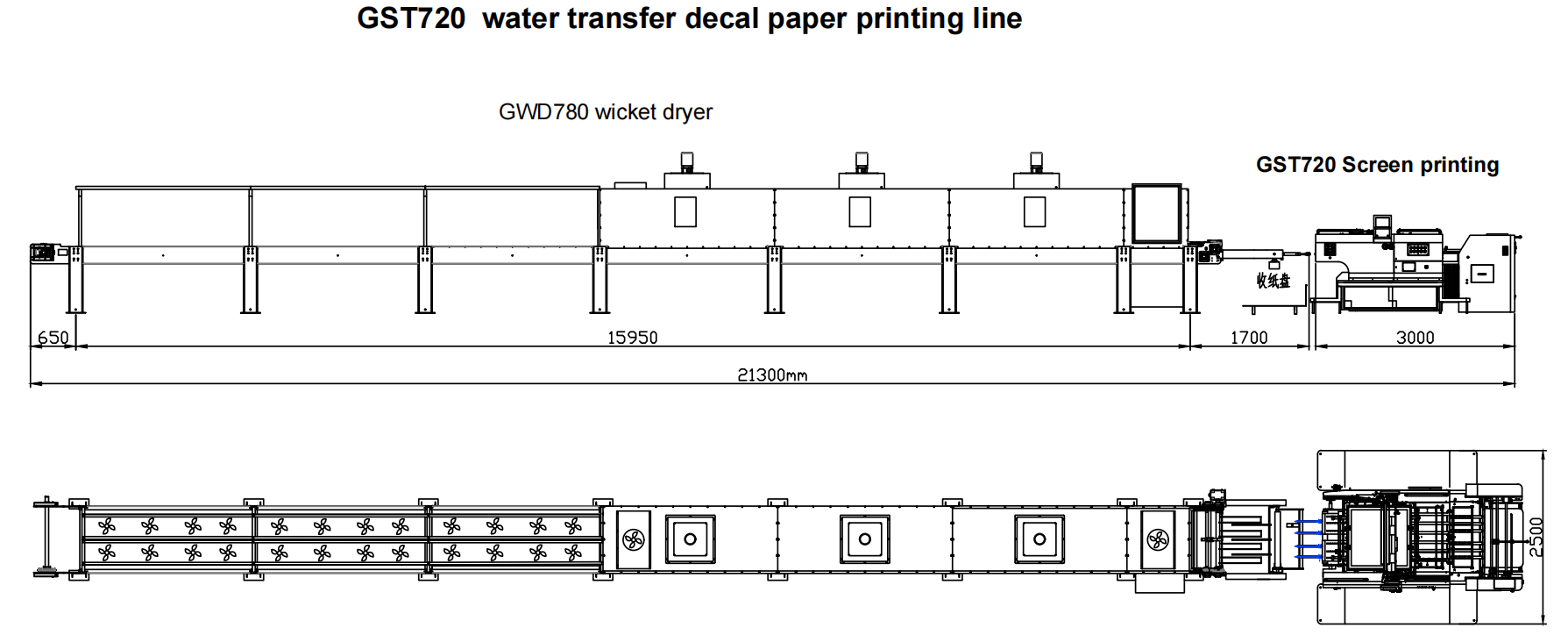

Automatic water transfer decal paper screen printing line

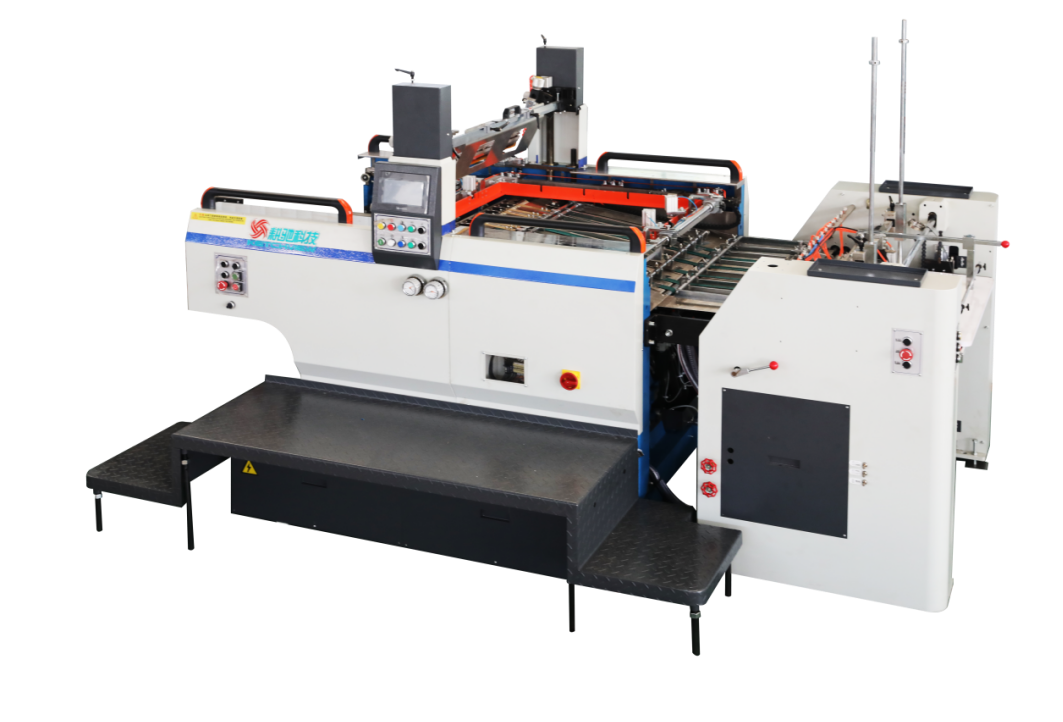

1. Automatic screen printing machine
Brief Introduction
GST Series Automatic Stop-cylinder Screen Printing Machine are upgrade models from Rotary Cylinder Printing Machine recent years. This kind of machine has adopted classical "Stop-cylinder" printing movement instead of the original "reciprocating movement". Therefore, it not only ensures the paper accurate position before scratch- print, but also reduce the producing waster rate. Besides, there is little impact with such high speeds and revolving, which also improves the register precision.
Technical Parameters
MODEL | GST-720 |
Max.Paper Size（mm） | 720×520 |
Min.Paper Size（mm） | 350×270 |
Max.Printing Size（mm） | 720×510 |
*Paper Thickness(g/m2 ) | 90-250 |
*Printing Speed(p/h) | 500--2000 |
Screen Frame Size: (mm) | 880×880 |
Total Power:(kw) | 8 |
Total Weight:(kg) | 3500 |
Dimension(mm) | 3000×2300×1700 |
Main Features
1. Driven by variable frequency brake motor, the whole machine is operated under the centralized control of Mitsubishi PLC. The WEINVIEW-touch screen operation interface displays all functional data, making printing operation more simple and convenient;
2. Adapt the Japan KEYENCE automatic optical fiber positioning detection, in case of, paperless and paper stuck, automatically rises and stops to reduce printing paper waste;
3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;
4. The whole electrical components are imported from Schneider, Mitsubishi, Omron, which greatly improves the stability of the electrical system and reduces the maintenance and overhaul
5. The printing cylinder is made of stainless steel 316L, which is precise and durable. Flexible design of the elastic range of the paper teeth, convenient for the printing of different thickness of paper at any time;
6. The exit paper board can be turned 90 degrees, which is easy to clean screen. Screen can be adjusted up and down, front and back, right and left position

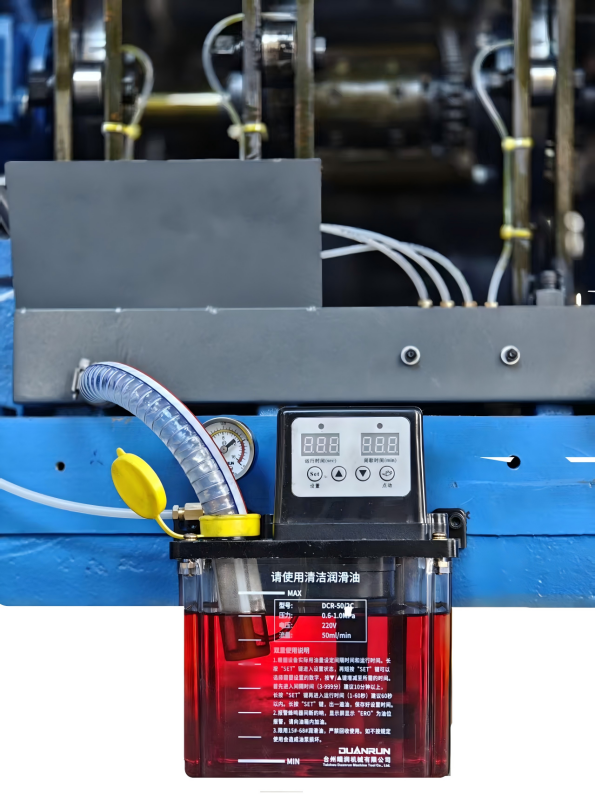

7. Centralized lubrication control system: main drive parts are lubricated automatically, which can effectively extend the service precision and machine life. Most of the bearings are used from NTN and NSK brand
Detail

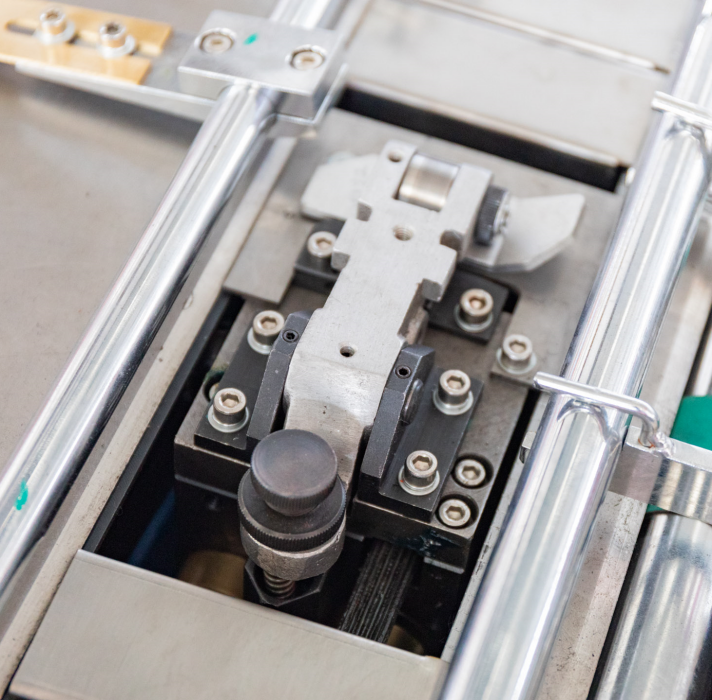

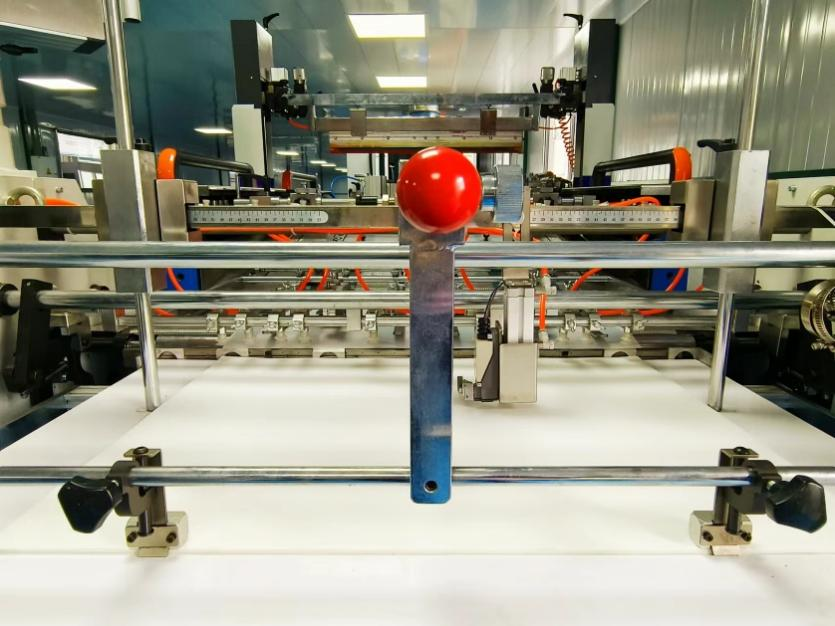

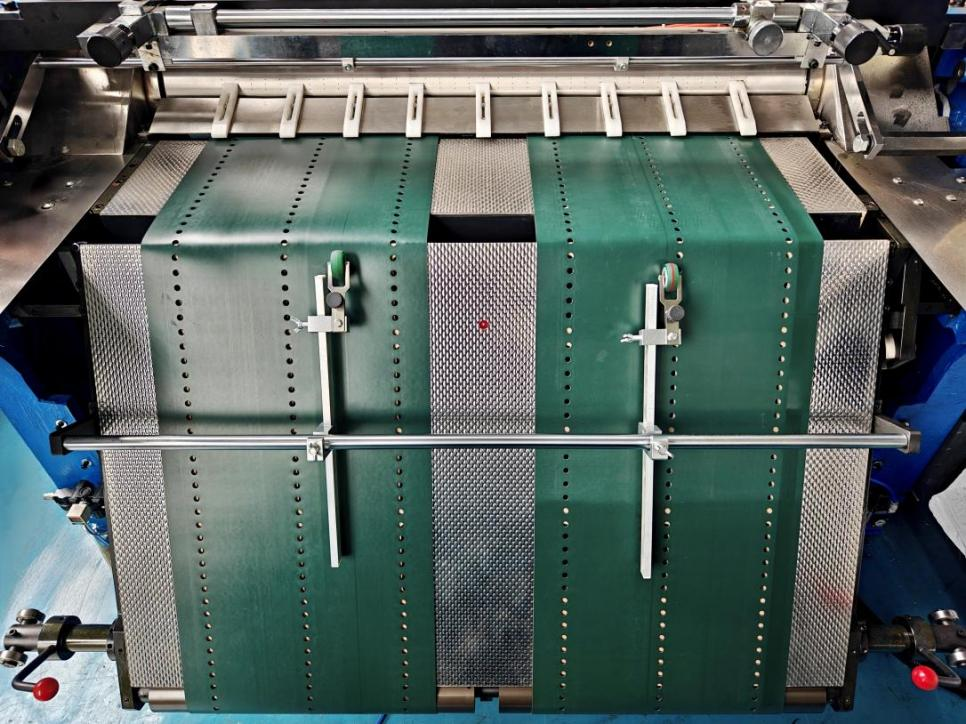

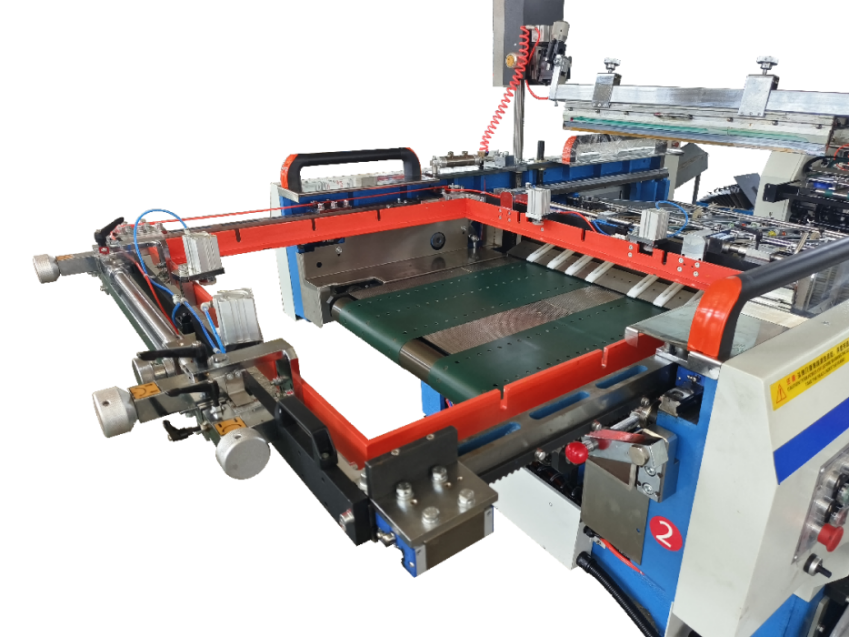

Front pickup feeder, more suitable for the film substrate delivery, smooth and stable
MISUMI pressure wheel, SMC Pneumatic control switch

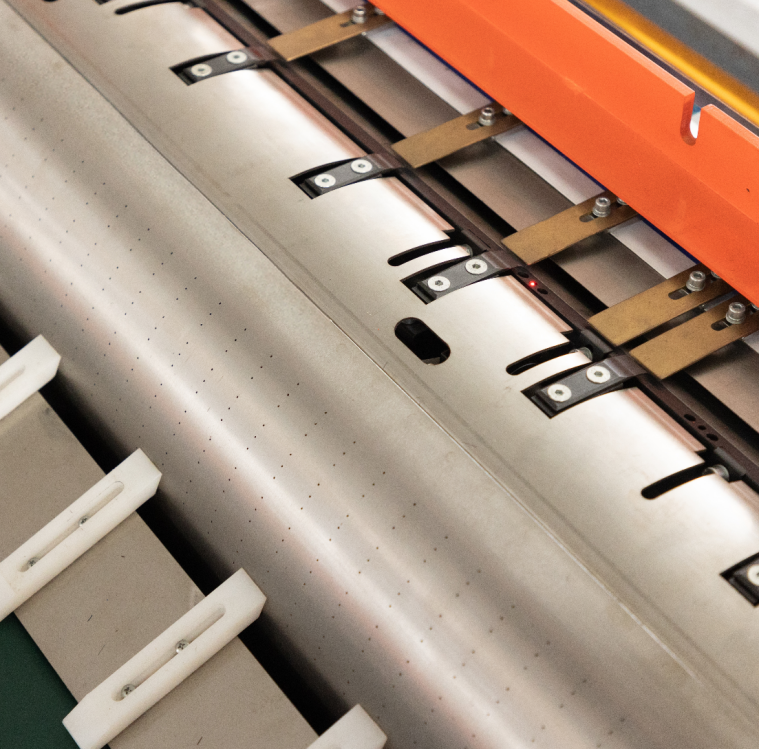

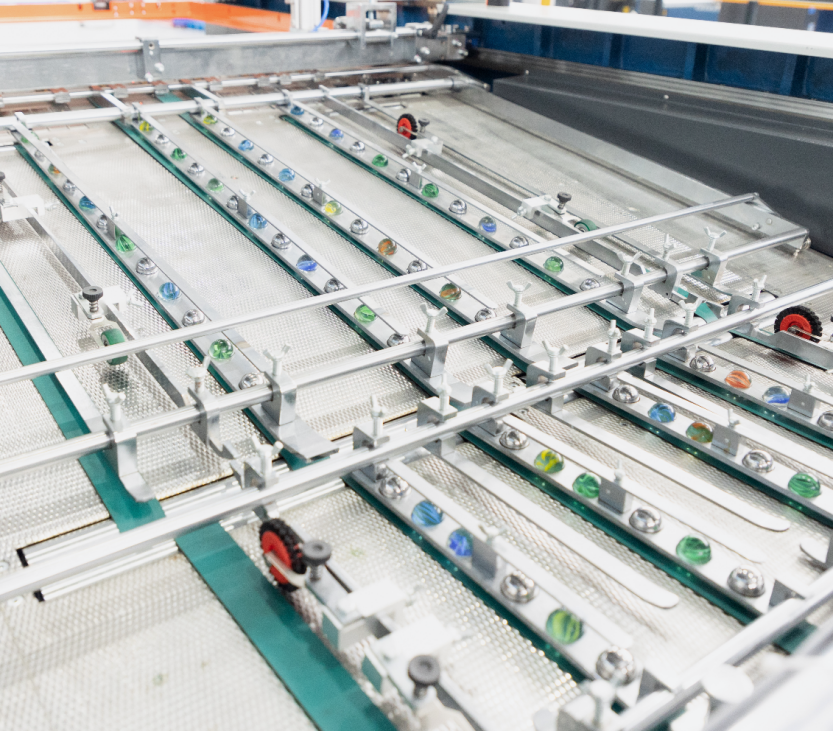

Vacuum paper delivery board, Stainless steel surface

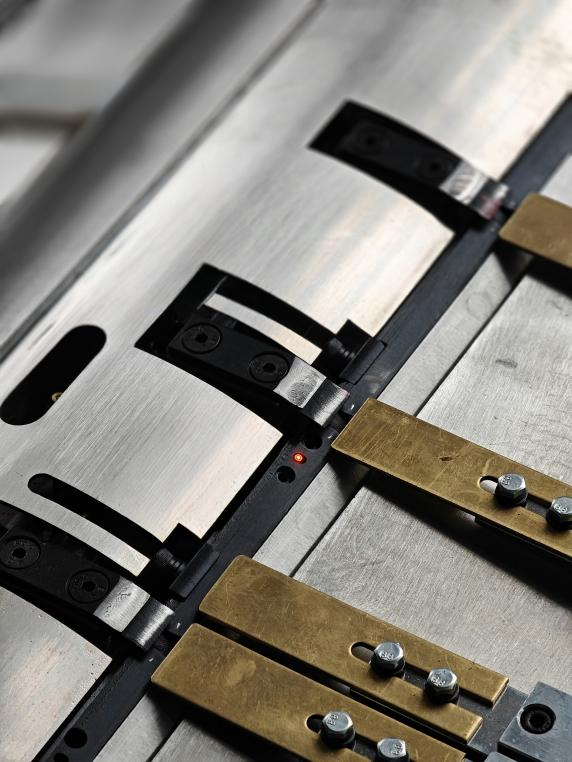

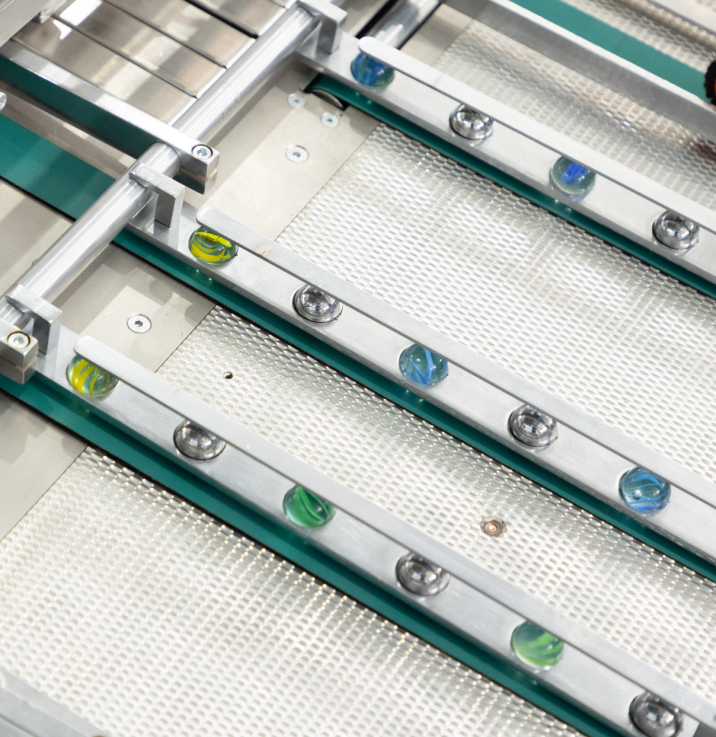

Nylon block protects the cylinder surface, paper table suction can be adjusted, suitable for thick and thin paper
German import handle. Japan THK linear guide
The screen frame can be pulled out of the structure, easy to clean
Mesh screen hook to make mesh tension more even
Schneider low voltage electric appliance and button switch, Mitsubishi PLC, Omron optoelectronic switch, KEYENCE fiber amplifier and other imported accessories ensure the stable operation of the system

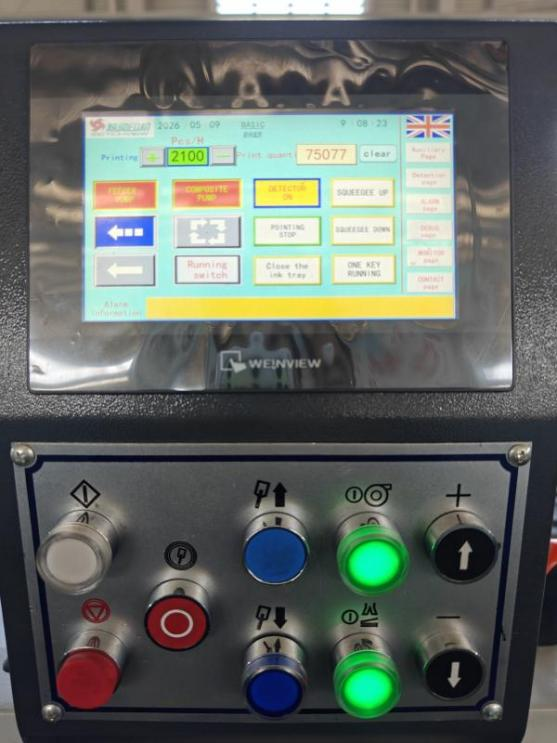

WEINVIEW-touch screen, easy operation

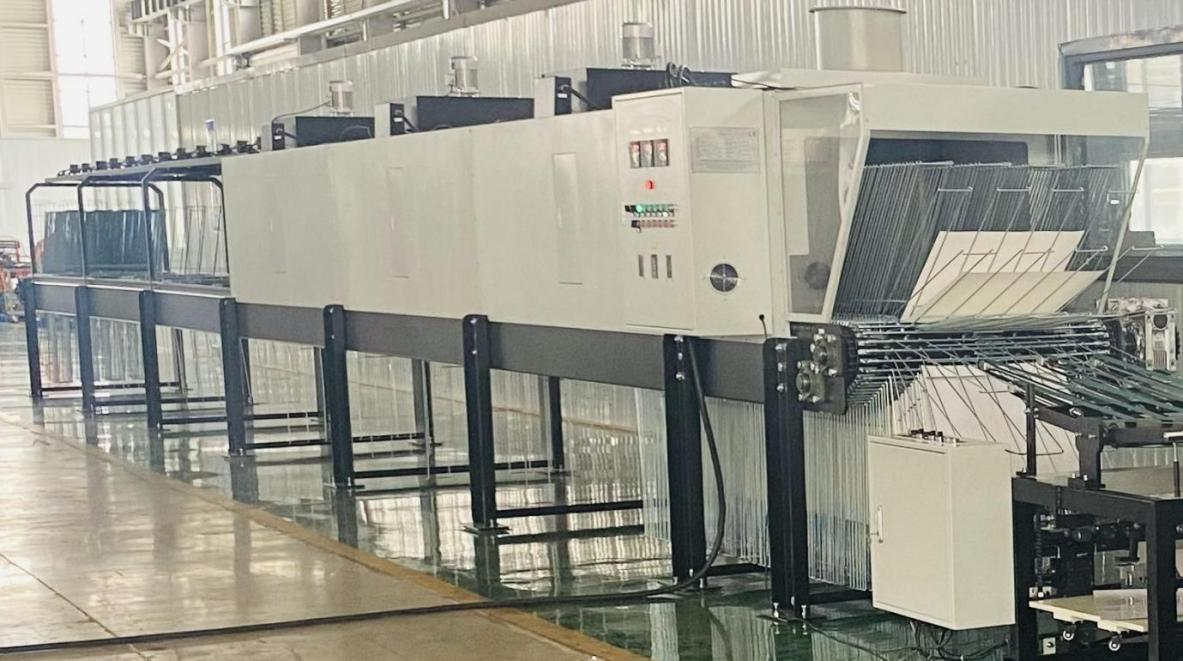

GWD720 Wicket Dryer
1．There are 3 groups of heating, 1 heating box for each group, 3 cooling sections, and 8 fans for each group.
2．Drying box internal circulation air box, side insulation board reinforcement.
3．The left and right two sides of insulation isolation layer.
4．Machine overall color high temperature spray factory standard color.
5．Paper clip with Q235 material, two point chuck, surface polishing galvanized.
6．The button is made of schneider, and the temperature control and low voltage appliances are made of autonix brand.
7．The feeding port is suitable for the height of 860-890mm, domestic and imported automata, this machine does not include the bridge between the main engine and the drying channel.
8．This machine does not include equipment for receiving after drying.
Technical Parameters：
Max. Conveying Width（mm） | 720×540 |
Max.Setting Temperatur（℃） | 50 |
Number of Clamps（pcs） | 1360pcs |
Total Power（kw） | About 26 |
Total weight（kg） | 5500 |
Exterior Dimension (mm) | 19000×2235×2000 |

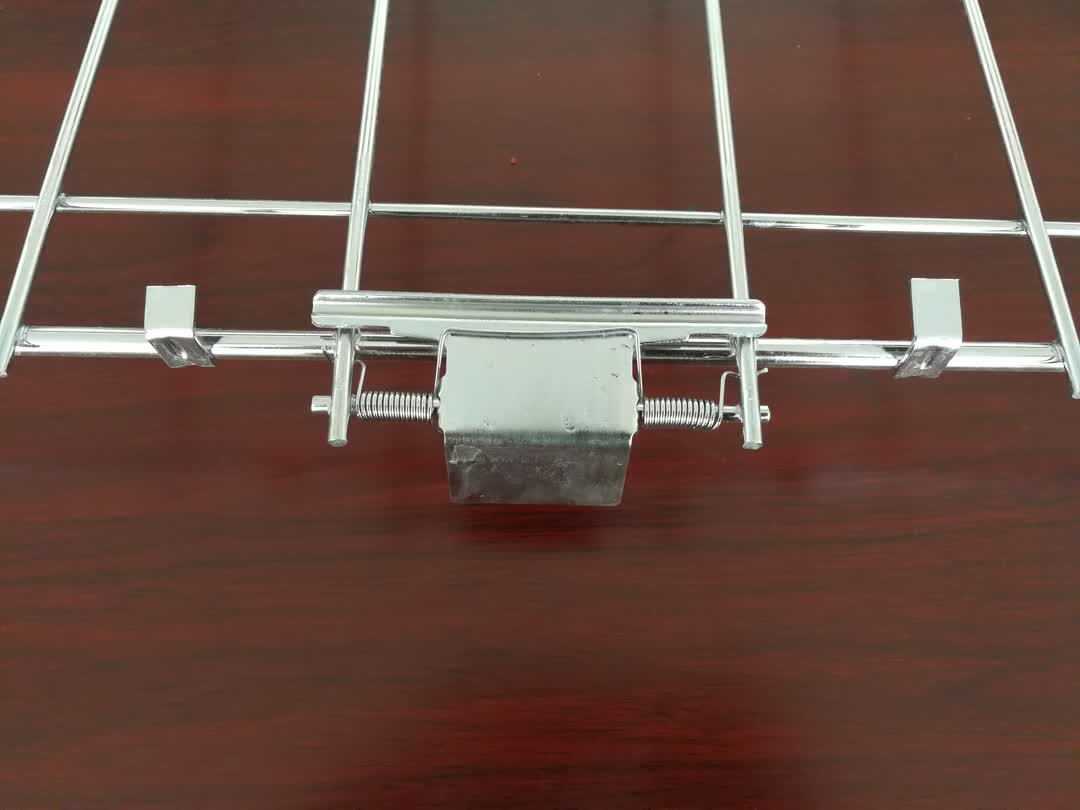

Clamp
Powder coated wicket
GSZ720 sheet stacker (double layer type)
Deliver the sheet on the top and stack the sheet at the bottom
Automatic water transfer decal paper screen printing line
1. Automatic screen printing machine
Brief Introduction
GST Series Automatic Stop-cylinder Screen Printing Machine are upgrade models from Rotary Cylinder Printing Machine recent years. This kind of machine has adopted classical "Stop-cylinder" printing movement instead of the original "reciprocating movement". Therefore, it not only ensures the paper accurate position before scratch- print, but also reduce the producing waster rate. Besides, there is little impact with such high speeds and revolving, which also improves the register precision.
Technical Parameters
MODEL | GST-720 |
Max.Paper Size（mm） | 720×520 |
Min.Paper Size（mm） | 350×270 |
Max.Printing Size（mm） | 720×510 |
*Paper Thickness(g/m2 ) | 90-250 |
*Printing Speed(p/h) | 500--2000 |
Screen Frame Size: (mm) | 880×880 |
Total Power:(kw) | 8 |
Total Weight:(kg) | 3500 |
Dimension(mm) | 3000×2300×1700 |
Main Features
1. Driven by variable frequency brake motor, the whole machine is operated under the centralized control of Mitsubishi PLC. The WEINVIEW-touch screen operation interface displays all functional data, making printing operation more simple and convenient;
2. Adapt the Japan KEYENCE automatic optical fiber positioning detection, in case of, paperless and paper stuck, automatically rises and stops to reduce printing paper waste;
3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;
4. The whole electrical components are imported from Schneider, Mitsubishi, Omron, which greatly improves the stability of the electrical system and reduces the maintenance and overhaul
5. The printing cylinder is made of stainless steel 316L, which is precise and durable. Flexible design of the elastic range of the paper teeth, convenient for the printing of different thickness of paper at any time;
6. The exit paper board can be turned 90 degrees, which is easy to clean screen. Screen can be adjusted up and down, front and back, right and left position
7. Centralized lubrication control system: main drive parts are lubricated automatically, which can effectively extend the service precision and machine life. Most of the bearings are used from NTN and NSK brand
Detail
Front pickup feeder, more suitable for the film substrate delivery, smooth and stable
MISUMI pressure wheel, SMC Pneumatic control switch
Vacuum paper delivery board, Stainless steel surface
Nylon block protects the cylinder surface, paper table suction can be adjusted, suitable for thick and thin paper
German import handle. Japan THK linear guide
The screen frame can be pulled out of the structure, easy to clean
Mesh screen hook to make mesh tension more even
Schneider low voltage electric appliance and button switch, Mitsubishi PLC, Omron optoelectronic switch, KEYENCE fiber amplifier and other imported accessories ensure the stable operation of the system
WEINVIEW-touch screen, easy operation
GWD720 Wicket Dryer
1．There are 3 groups of heating, 1 heating box for each group, 3 cooling sections, and 8 fans for each group.
2．Drying box internal circulation air box, side insulation board reinforcement.
3．The left and right two sides of insulation isolation layer.
4．Machine overall color high temperature spray factory standard color.
5．Paper clip with Q235 material, two point chuck, surface polishing galvanized.
6．The button is made of schneider, and the temperature control and low voltage appliances are made of autonix brand.
7．The feeding port is suitable for the height of 860-890mm, domestic and imported automata, this machine does not include the bridge between the main engine and the drying channel.
8．This machine does not include equipment for receiving after drying.
Technical Parameters：
Max. Conveying Width（mm） | 720×540 |
Max.Setting Temperatur（℃） | 50 |
Number of Clamps（pcs） | 1360pcs |
Total Power（kw） | About 26 |
Total weight（kg） | 5500 |
Exterior Dimension (mm) | 19000×2235×2000 |
Clamp
Powder coated wicket
GSZ720 sheet stacker (double layer type)
Deliver the sheet on the top and stack the sheet at the bottom
