Automatic Screen Printing Machine

GST Series Automatic Stop-cylinder Screen Printing Machine are upgrade models from Rotary Cylinder Printing Machine recent years. This kind of machine has adopted classical "Stop-cylinder" printing movement instead of the original "reciprocating movement". Therefore, it not only ensures the paper accurate position before scratch- print, but also reduce the producing waster rate. Besides, there is little impact with such high speeds and revolving, which also improves the register precision.

Technical Parameters

MODEL GST-720 GST-800 GST-1020 GST-1050
Max.Paper Sizemm 720×520 800×600 1020×720 1050×750
Min.Paper Sizemm 350×270 350×270 560×350 560×350
Max.Printing Sizemm 720×510 800×590 1020×710 1050×720
*Paper Thickness(g/m2 ) 90-250 120-250 90-350 90-420
*Printing Speed(p/h) 500--3000 6003000 6003000 6004000
Screen Frame Size: (mm) 880×880 1070×1070 1280×1140 1300×1170
Total Power:(kw) 8 11 15 15
Total Weight:(kg) 3500 4000 5500 5500
Dimension(mm) 3000×2300×1700 3500×2480×1710 3900×2900×1800 3800×3100×1800

Main Features

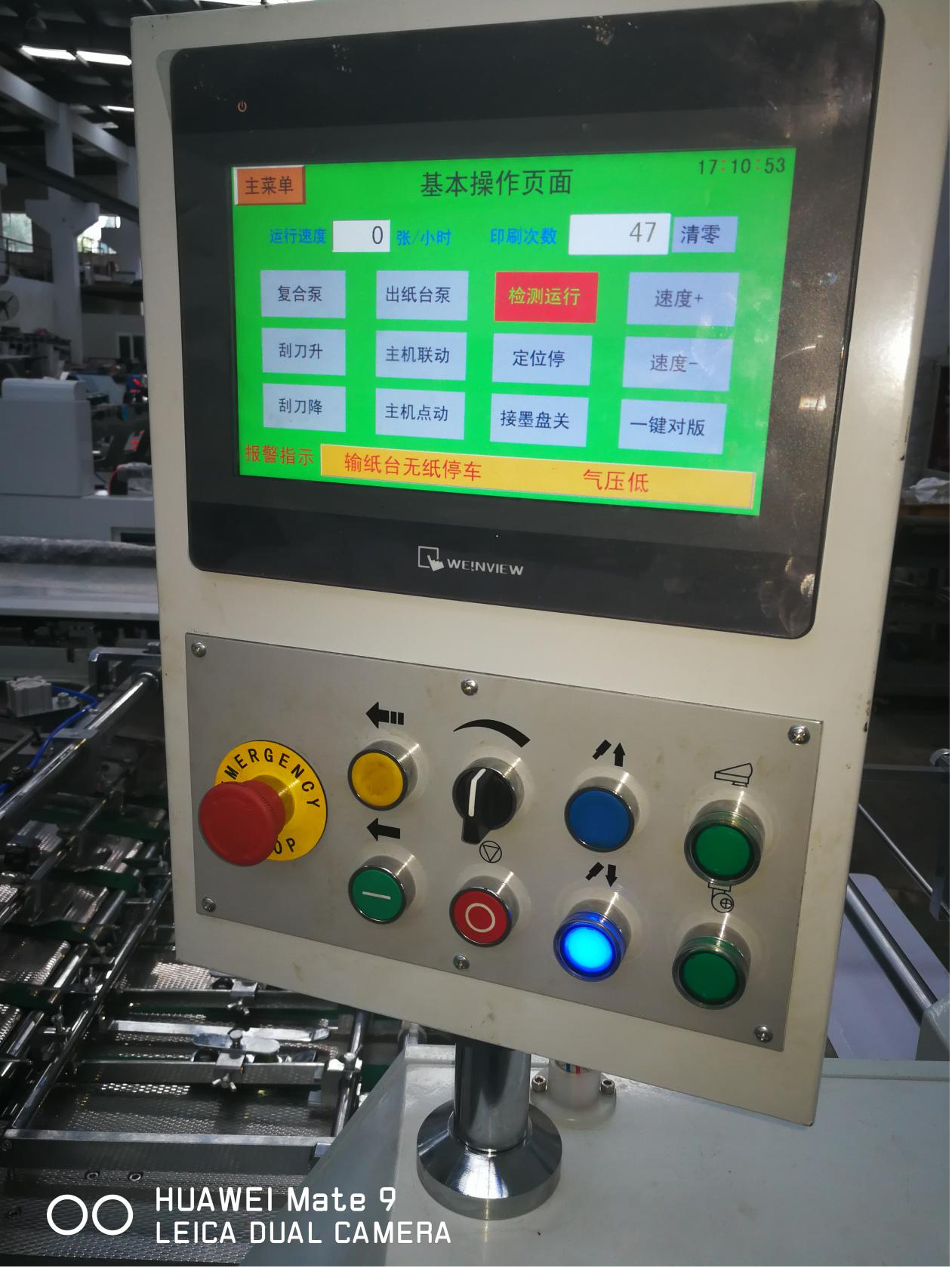

1. Driven by variable frequency brake motor, the whole machine is operated under the centralized control of Mitsubishi PLC. The WEINVIEW-touch screen operation interface displays all functional data, making printing operation more simple and convenient;

2. Adapt the Japan KEYENCE automatic optical fiber positioning detection, in case of, paperless and paper stuck, automatically rises and stops to reduce printing paper waste;

3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;

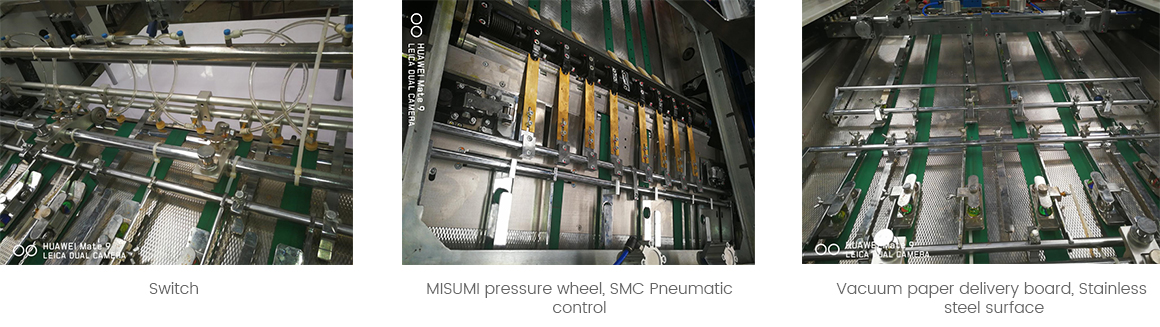

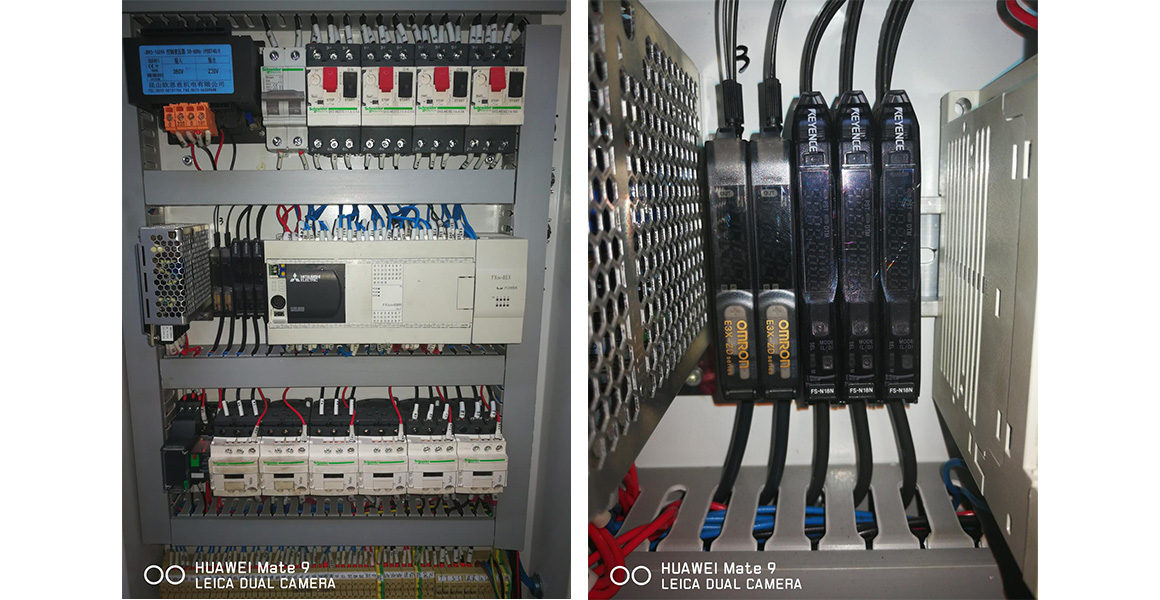

4. The whole electrical components are imported from Schneider, Mitsubishi, Omron, which greatly improves the stability of the electrical system and reduces the maintenance and overhaul

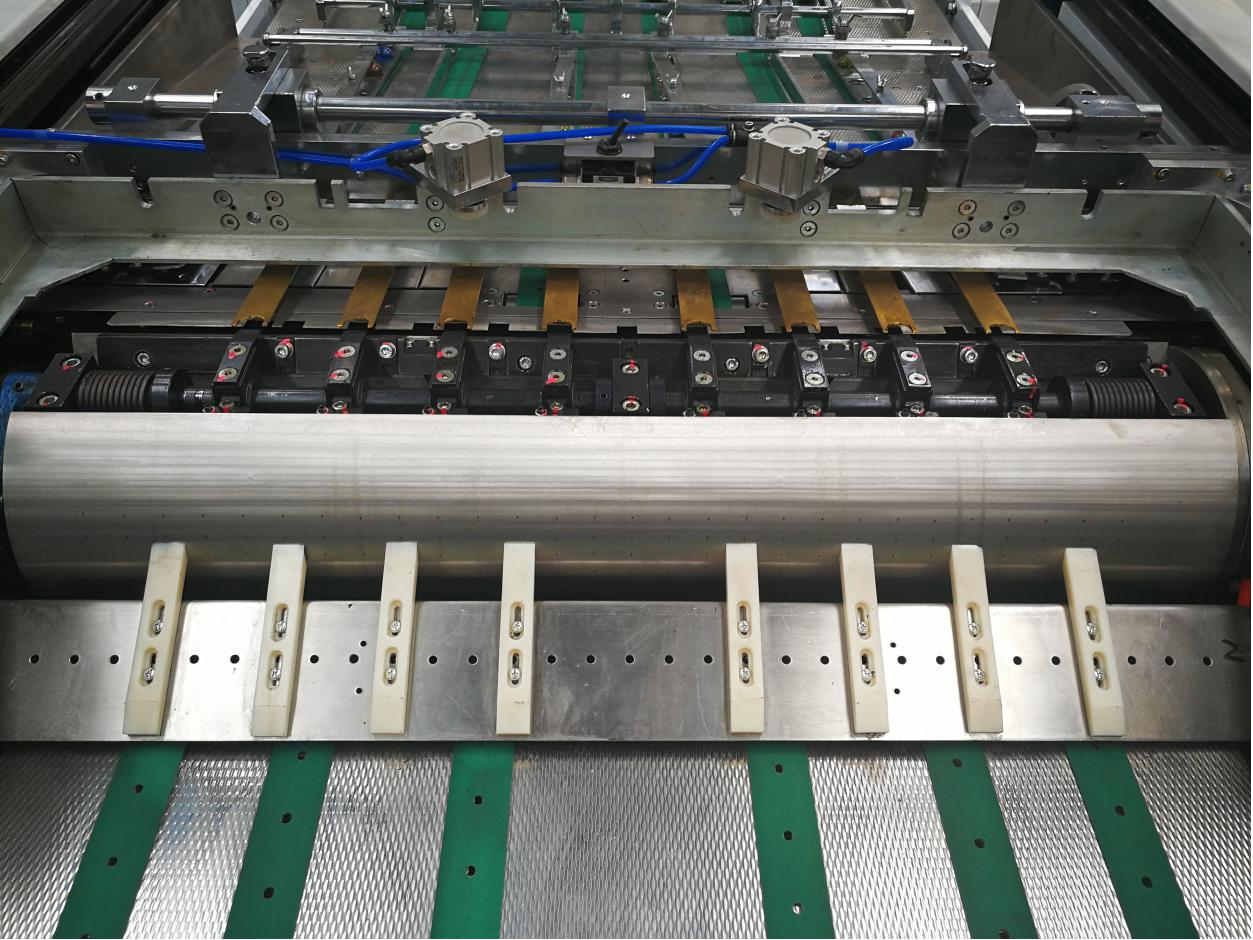

5. The printing cylinder is made of stainless steel 316L, which is precise and durable. Flexible design of the elastic range of the paper teeth, convenient for the printing of different thickness of paper at any time;

6. The exit paper board can be turned 90 degrees, which is easy to clean screen. Screen can be adjusted up and down, front and back, right and left position

7. Centralized lubrication control system: main drive parts are lubricated automatically, which can effectively extend the service precision and machine life. Most of the bearings are used from NTN and NSK brand

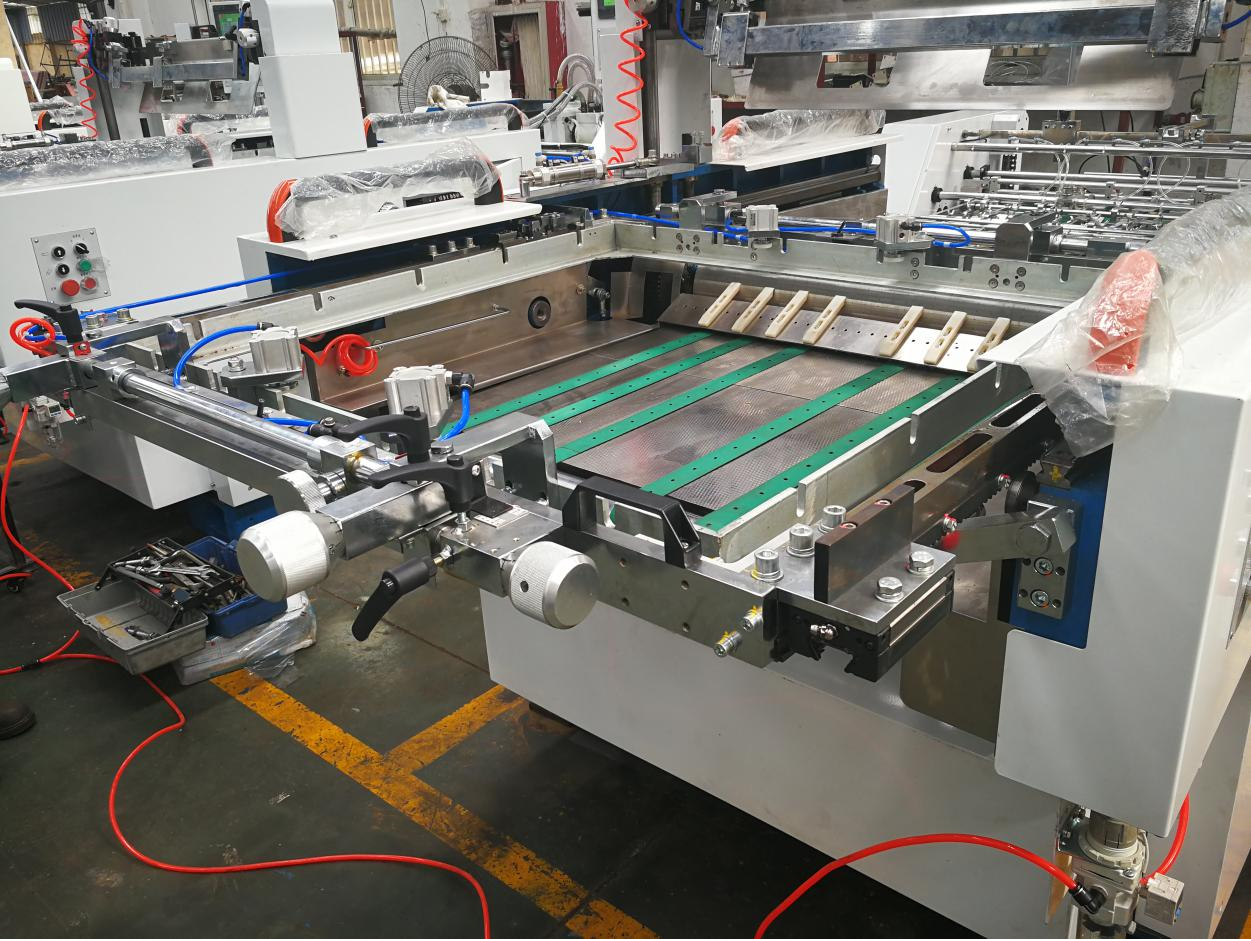

Nylon block protects the cylinder surface, paper table suction can be adjusted, suitable for thick and thin paper

German import handle. Japan THK linear guide

The screen frame can be pulled out of the structure, easy to clean

Mesh screen hook to make mesh tension more even

Schneider low voltage electric appliance and button switch, Mitsubishi PLC, Omron optoelectronic switch, KEYENCE fiber amplifier and other imported accessories ensure the stable operation of the system

WEINVIEW-touch screen, easy operation

GWD720 Wicket Dryer

1.GWD-720 SERIES WICKET DRYER is widely used for drying all kinds of printing solvent ink and               paint such as ceramic decal , credit cards and other package printing etc.

2.The machine is consisted of heating parts and cooling parts; Heating parts are full close tunnel construct, and cooling parts are open construct without side boards;

3.There are electric heating lamps fixed on the top of heating parts. Through the fans and lead bar fixed in two of the wind boxes, hot air can circulate and the temperature can keep steadily;

4.The machine has digital temperature controller. There are one layer installing on the side board for insulation using;

5.There are two sets of exhausting devices which are fixed separately on the beginning and the end of the heating parts;

6.There are fans fixed on the top of cooling parts, which are used to blow dry the paper surface through the lead bars;

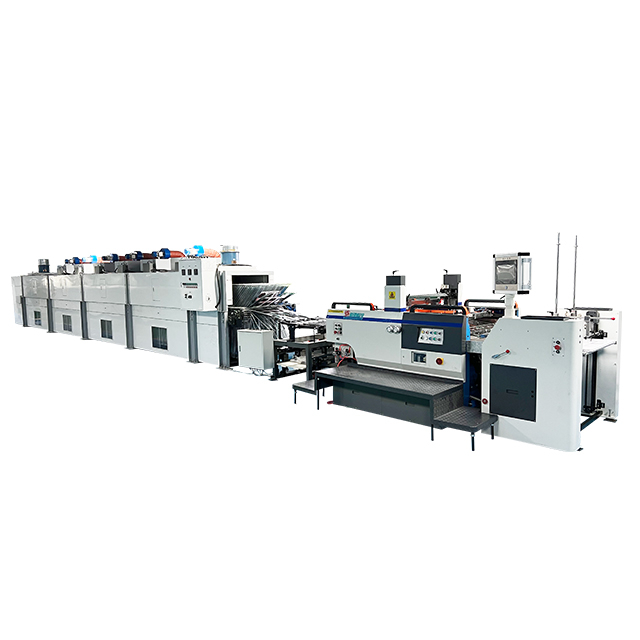

7.The machine can be combined with automatic printing machine. Through the moving clamps it can build up an automatic producing line: Printing – Drying – Conveying – Stacking.

Technical Parameters

Sheet size 720×520mm
Max setting temperature 50°C
Number of wicket 1480pcs
Heating unit 3 sections
Cooling unit 3 sections
Wicket coating Zinc Coated
Total Power:(kw) 22
Total Weight:(kg) 5500
Dimension(mm) 19000×2000×2400mm
