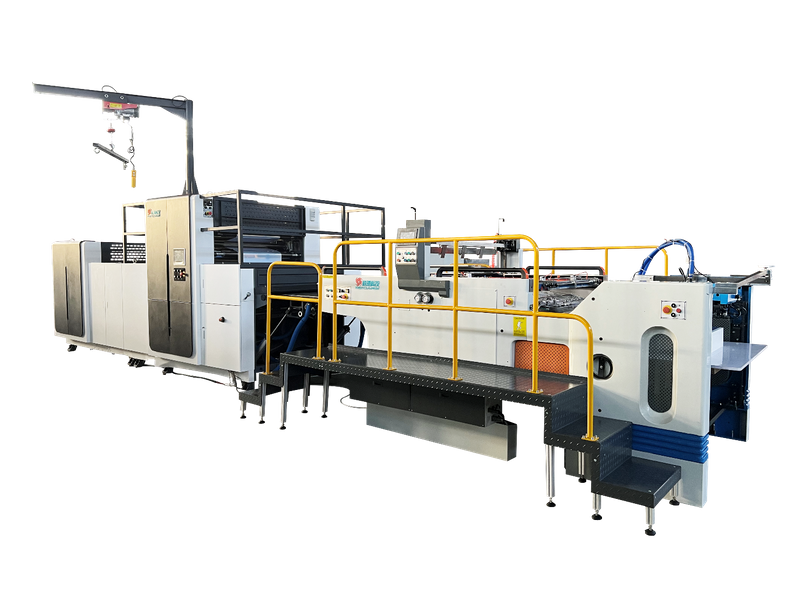

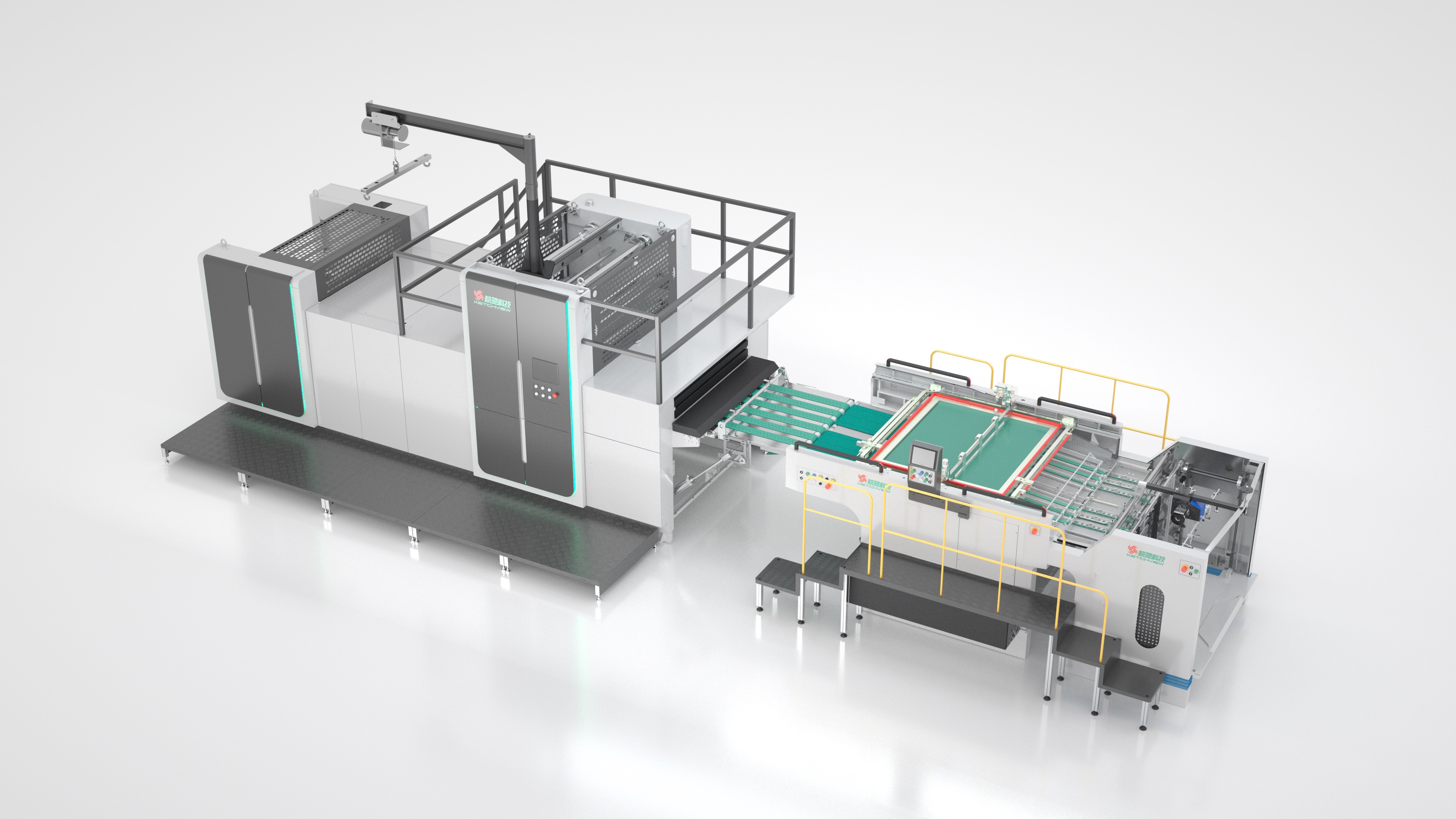

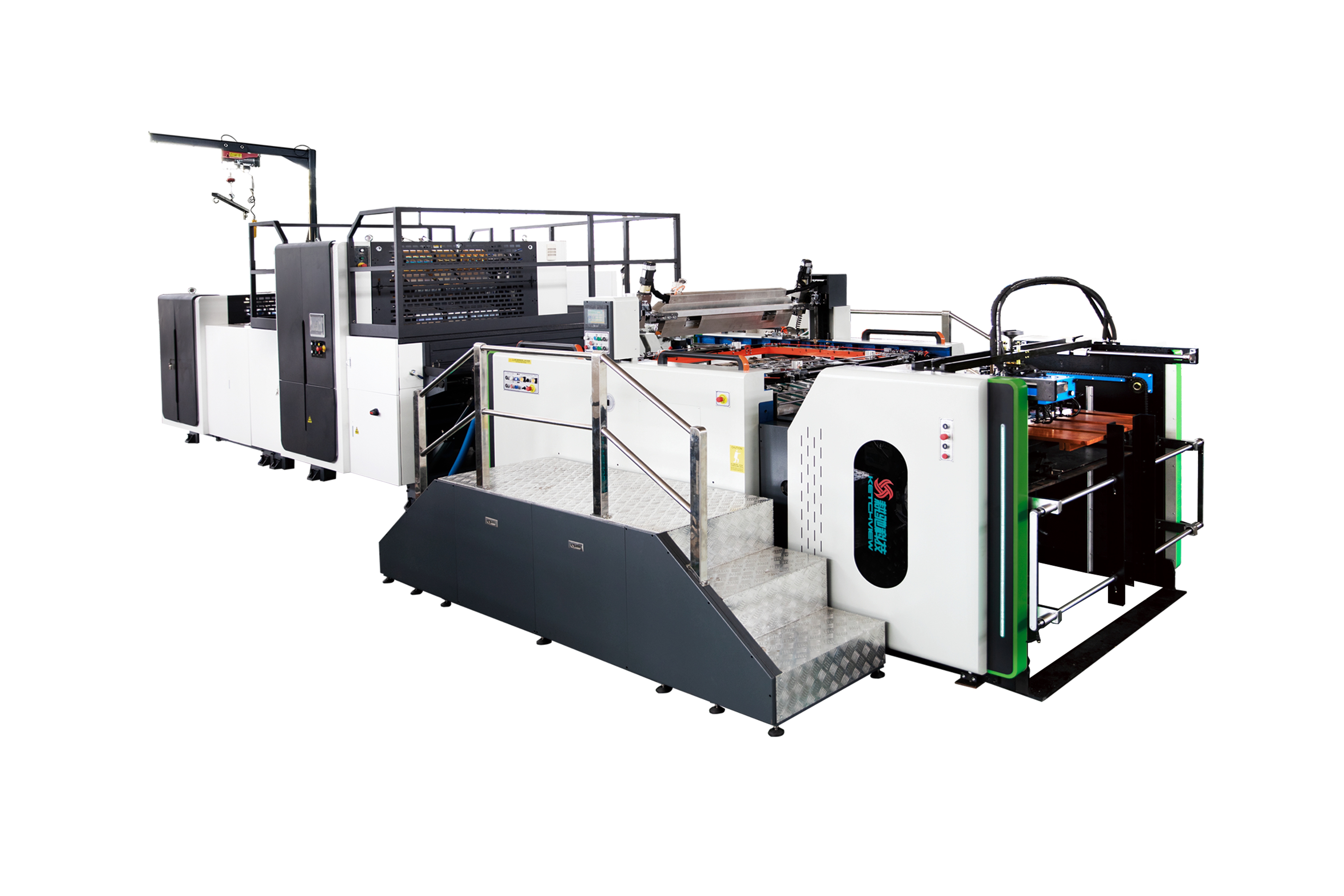

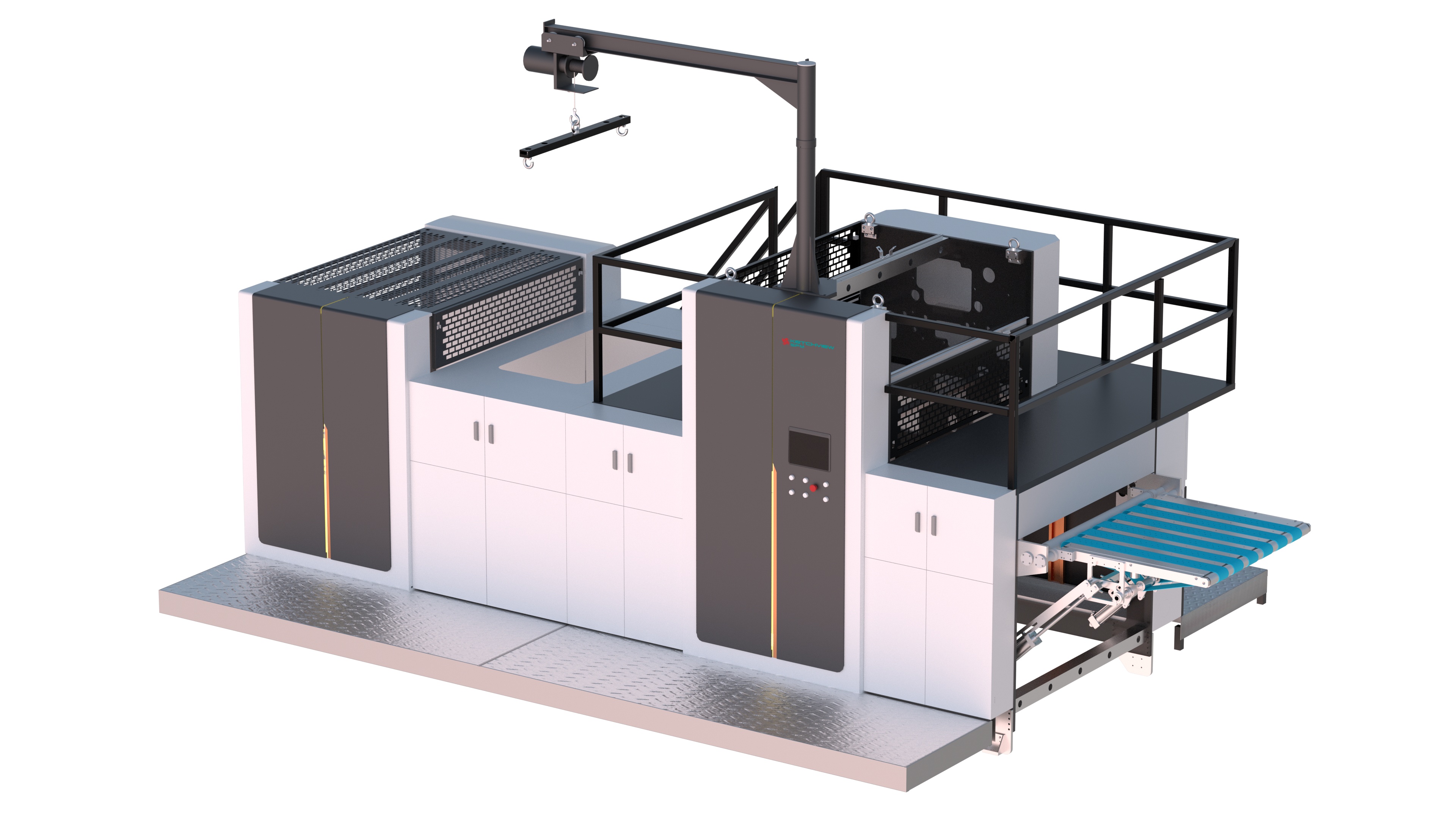

GST1060 Automatic Stop Cylinder Screen Cold Foil Line

Screen printing Spot UV varnish/ Cold foil stamping

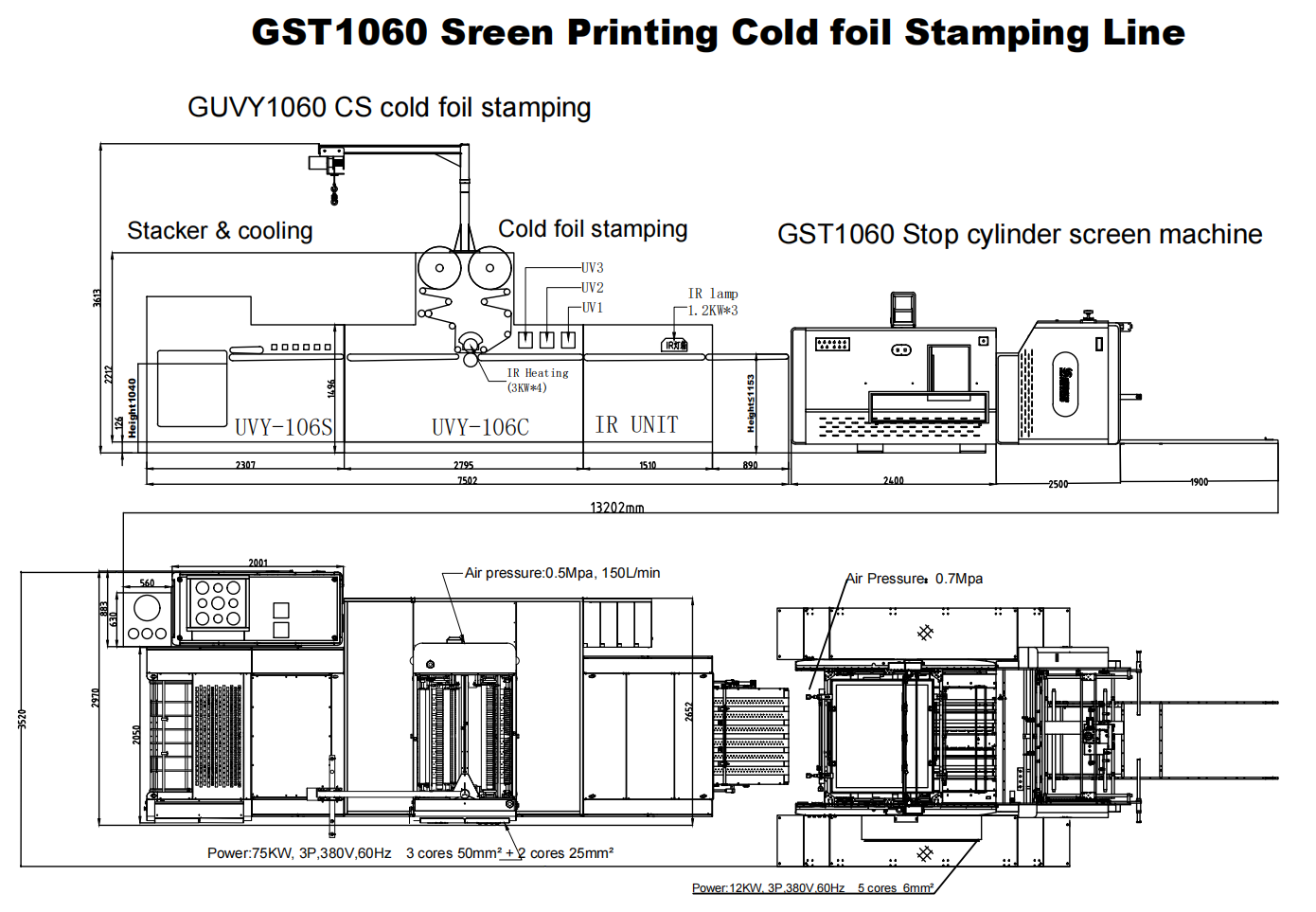

Floor Plan

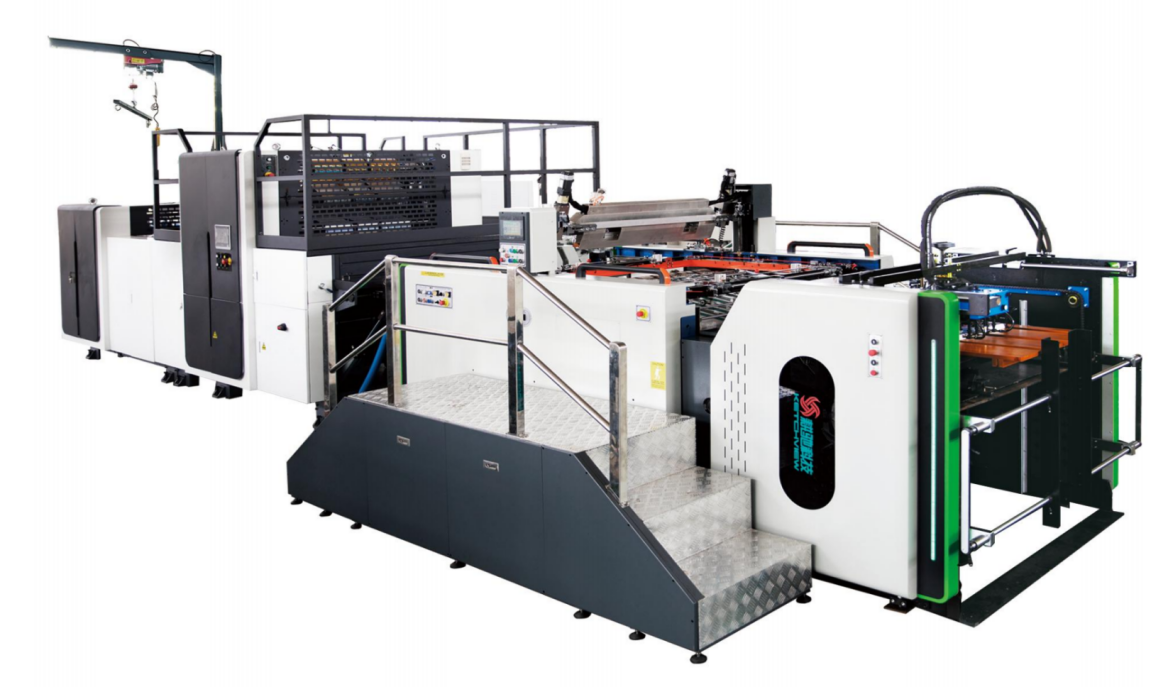

1. GST1060 Automatic stop cylinder screen printing machine

Main features

1. Driven by a special brake motor for frequency conversion, the whole machine is centrally controlled and operated by Mitsubishi PLC programmable controller, 7-inch color touch screen operation interface, displaying all functional data, printing operation is simpler and more convenient;

2. Automatic optical fiber positioning detection throughout the process, line failure, paperless, jammed scraper automatically rise and stop or not, reduce the waste of printing paper;

3. Set up a perfect alarm bell alarm system to prompt the operator to carry out targeted troubleshooting, so that maintenance is easy and fast;

4. The main electrical components are imported products from international brand, which greatly improves the stability of the electrical system and reduces the frequency and difficulty of maintenance and overhaul;

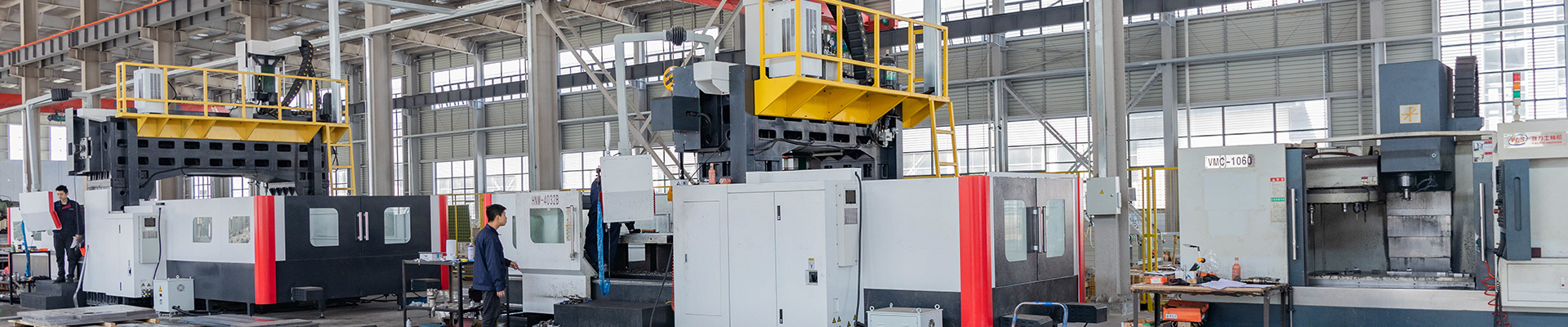

5. The cast iron frame and some components precision processed by the CNC "machining center" ensure the accuracy of key parts and ensure the stable and long-term rapid operation of the machine;

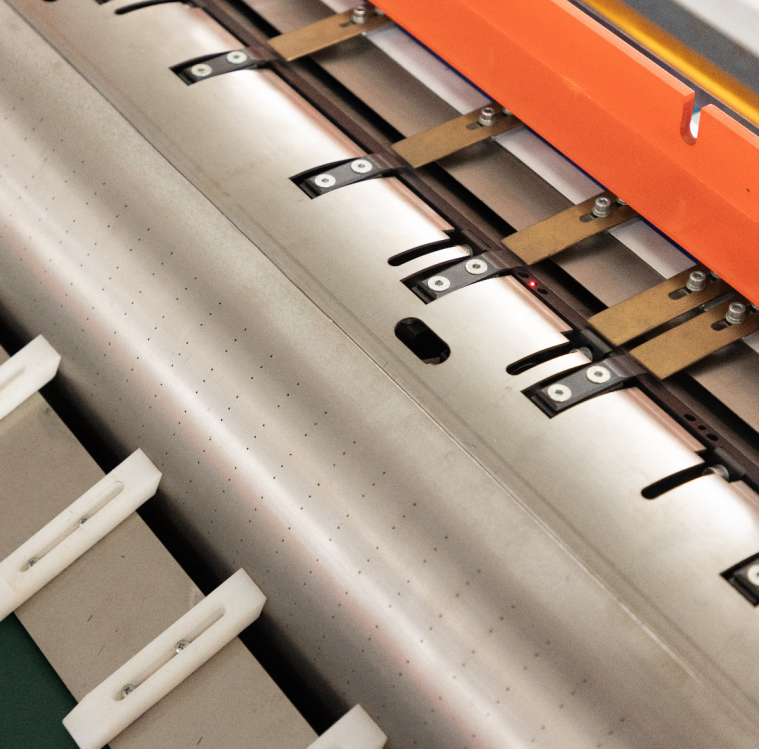

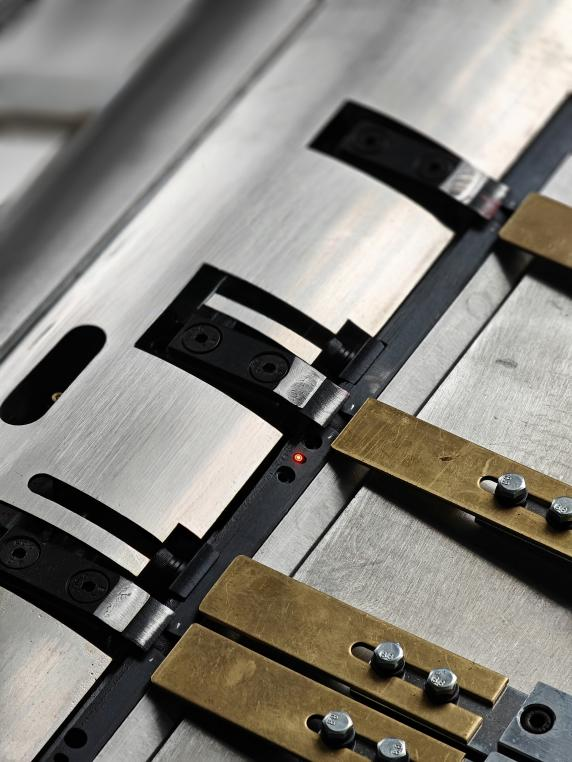

6. The printing cylinder is made of stainless steel 316L material, which is precise and durable; The flexible range of the paper tooth is designed to be flexible, which is convenient to adjust at any time when printing on different thicknesses and thin papers;

7. The paper output table that can be flipped 90 degrees, double conveying adjustable speed belt, practical size paper, convenient for screen cleaning, loading and unloading; Screen plate fine-tuning device, which can be adjusted in all directions up and down, front and back, left and right;

8. Good gray cast iron (HT250), wall plate and base cast by aluminum mold, after aging treatment, and then processed by imported large-scale three-dimensional machining center, high precision level requirements, smaller processing error, the operation of the whole machine is more stable and reliable.

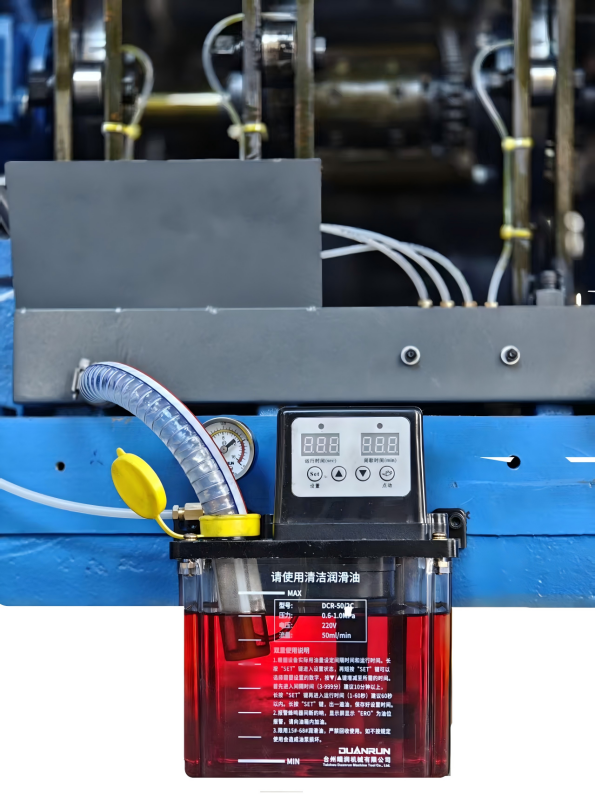

9. Centralized lubrication control system: automatic lubrication of main transmission components, effectively prolonging the use accuracy and machine life;

10. The appearance is made of environmentally friendly primer, which is carefully polished and painted, and finally the outer surface cover varnish;

11. All pneumatic components adopt Taiwan Airtac brand

12. Printing knife and feeder platform are precisely controlled by separate brakes, and the pressure is uniform;

13. One-button pneumatic switching device for pulling&pushing side lay

14. Mesh frame drawer design, can be pulled out as a whole, which is convenient for cleaning and loading and unloading of screen plates, and convenient for the calibration and adjustment of screen plates and prints.

Technical parameter

*1 Depends on the material hardness

*2 Depends on the kind of printing substrate and printing conditions, figures may be changed

Remark:

Equipped with independent single sheet paper reduction mechanism, feeding is more stable and reliable.

Front lay, pull lay Japanese Omron fiber inspection;

The paper conveying table photoelectric detection of whether there is material, deceleration and shutdown;

The latest double sheet detector

Details

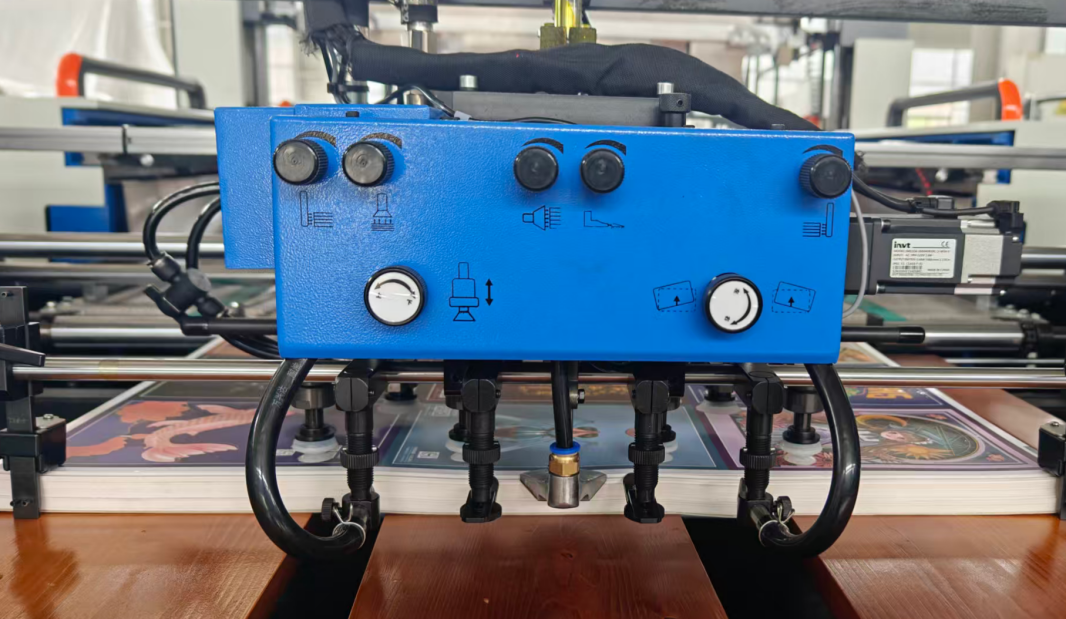

1. Feeder

The original rear pick-up feeder technology taken from the offset Press, ensures stable and smooth feeding of various types of substrate. Dependant on the substrate, overlapped or single sheet feed can be selected easily. Four suck and four delivery feeding system. Equip with servo motor to set the feeding time

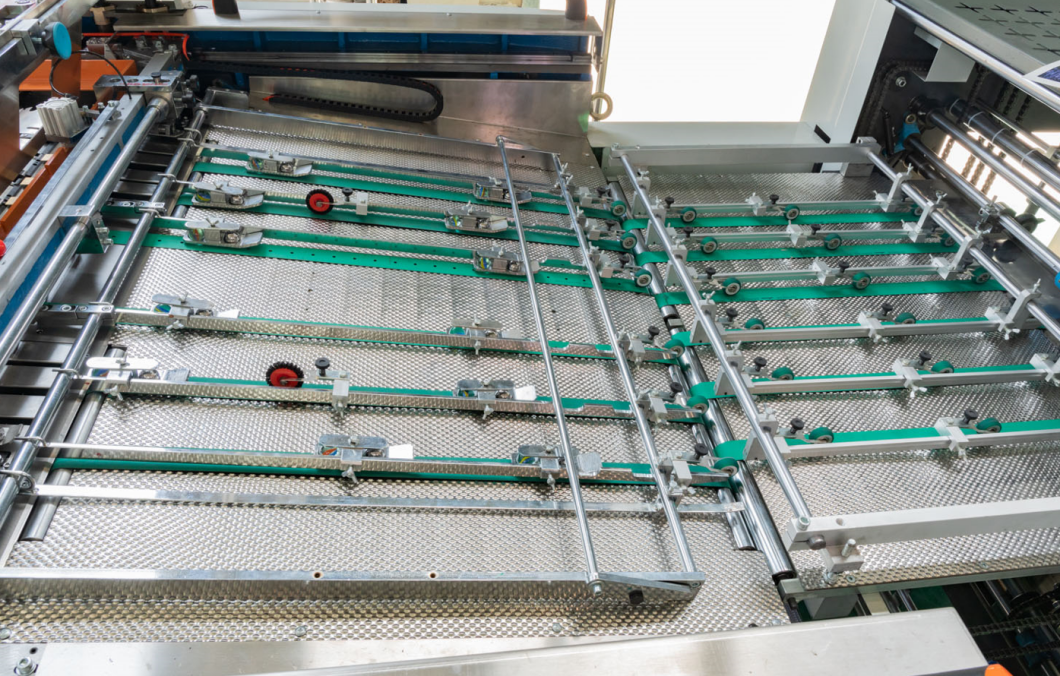

2. Delivery board

Imported stain steel delivery board, less static and friction. Rubber and the nylon wheel are suitable for the thin and thick paper adjustment

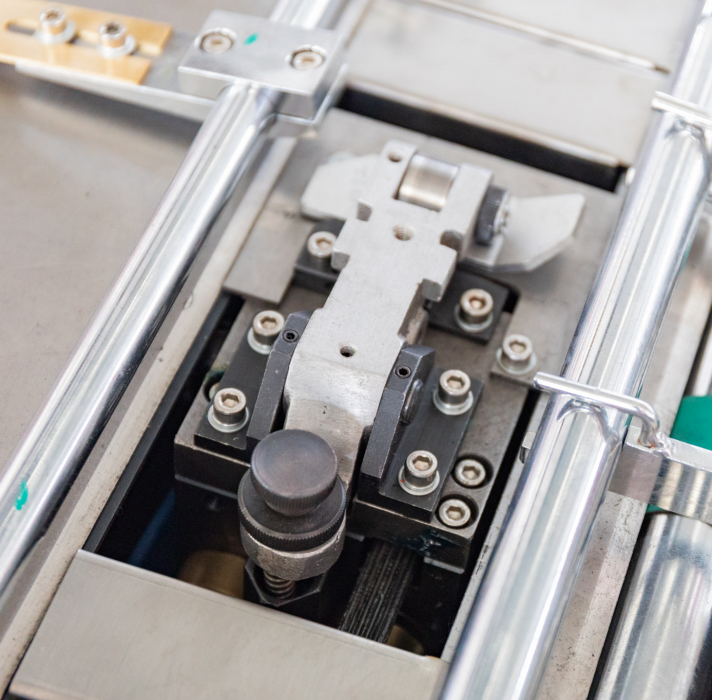

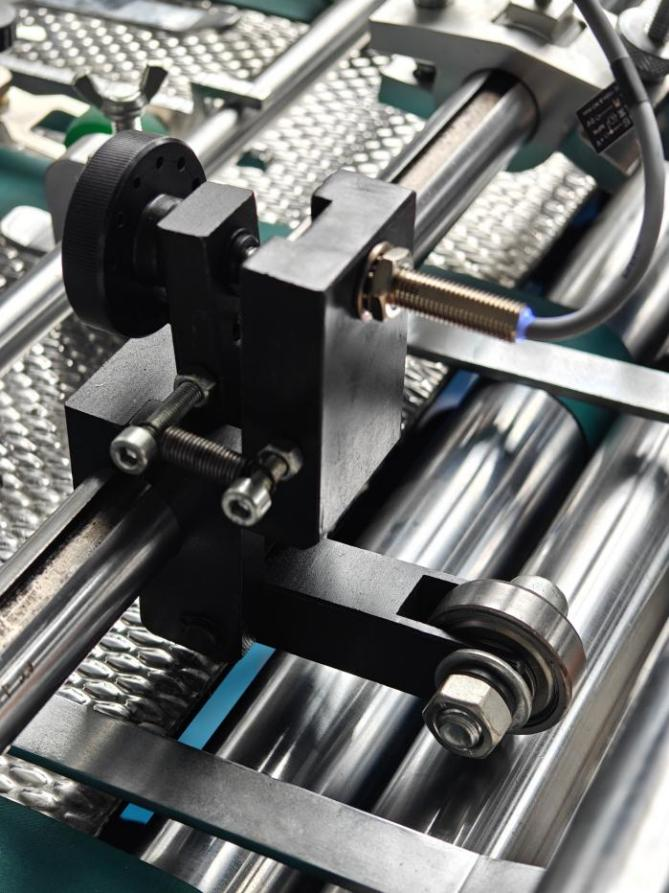

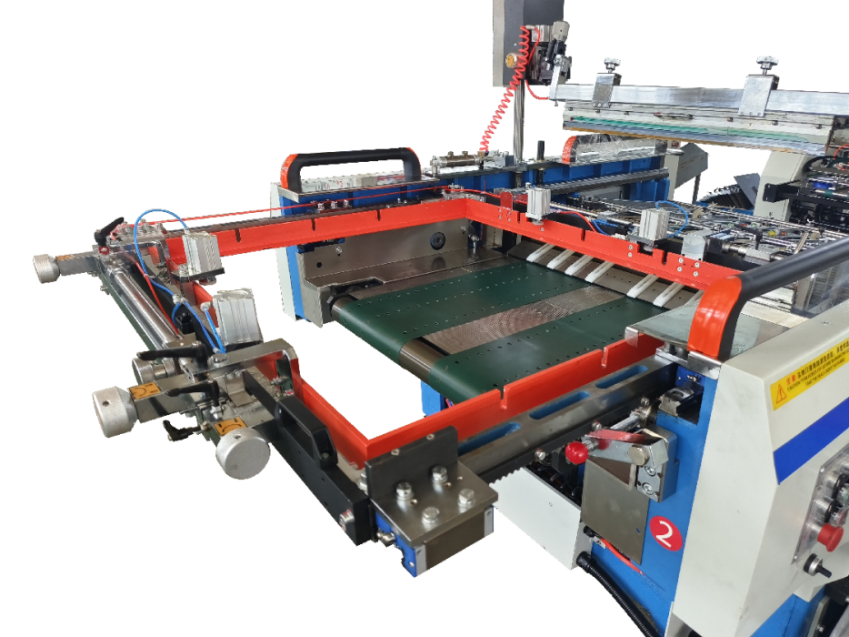

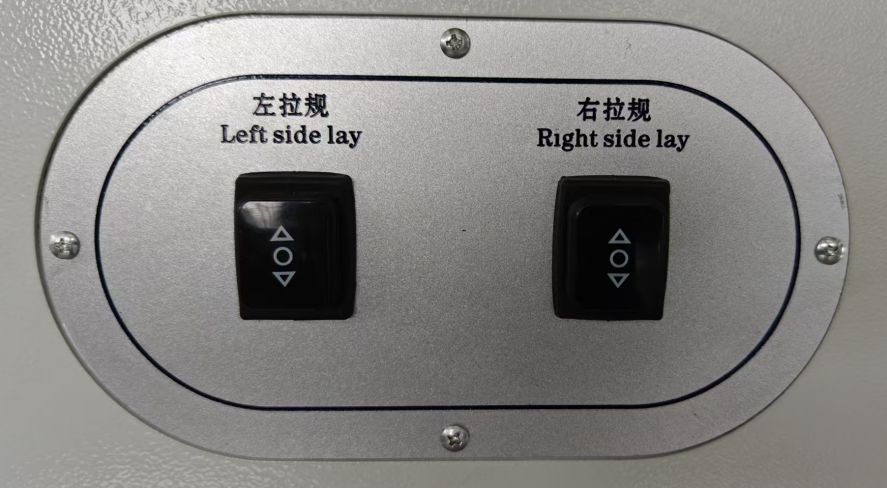

3. New designed pull and push lay

Controlled by the pneumatic switch, easy to switch the thin paper and thick paper, specially suitable for E-corrugated board printing. The side lay position is adjusted electrically.

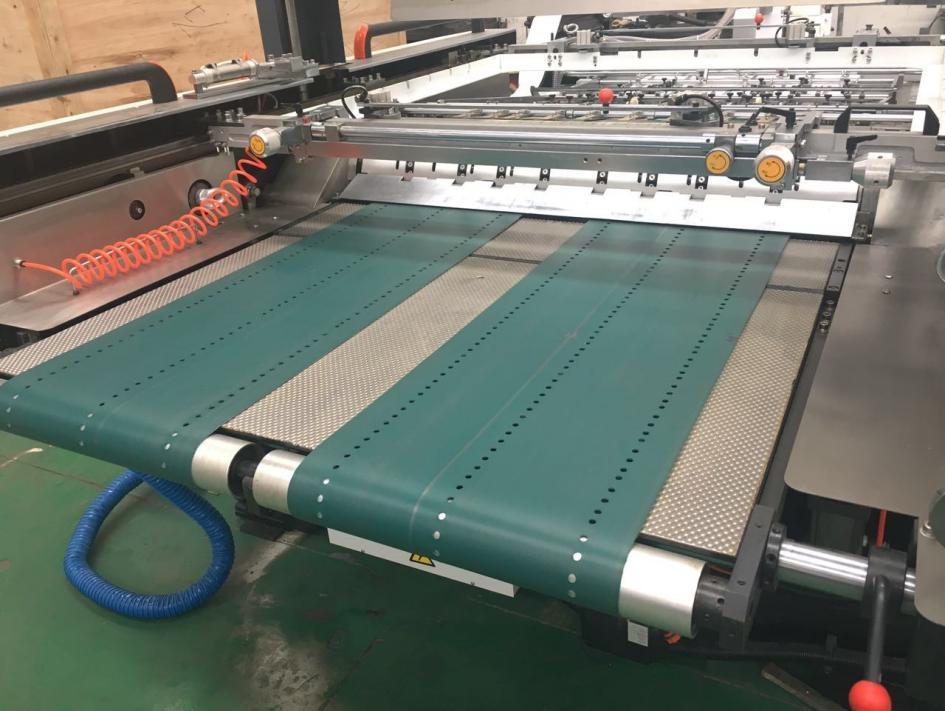

4. Paper output table

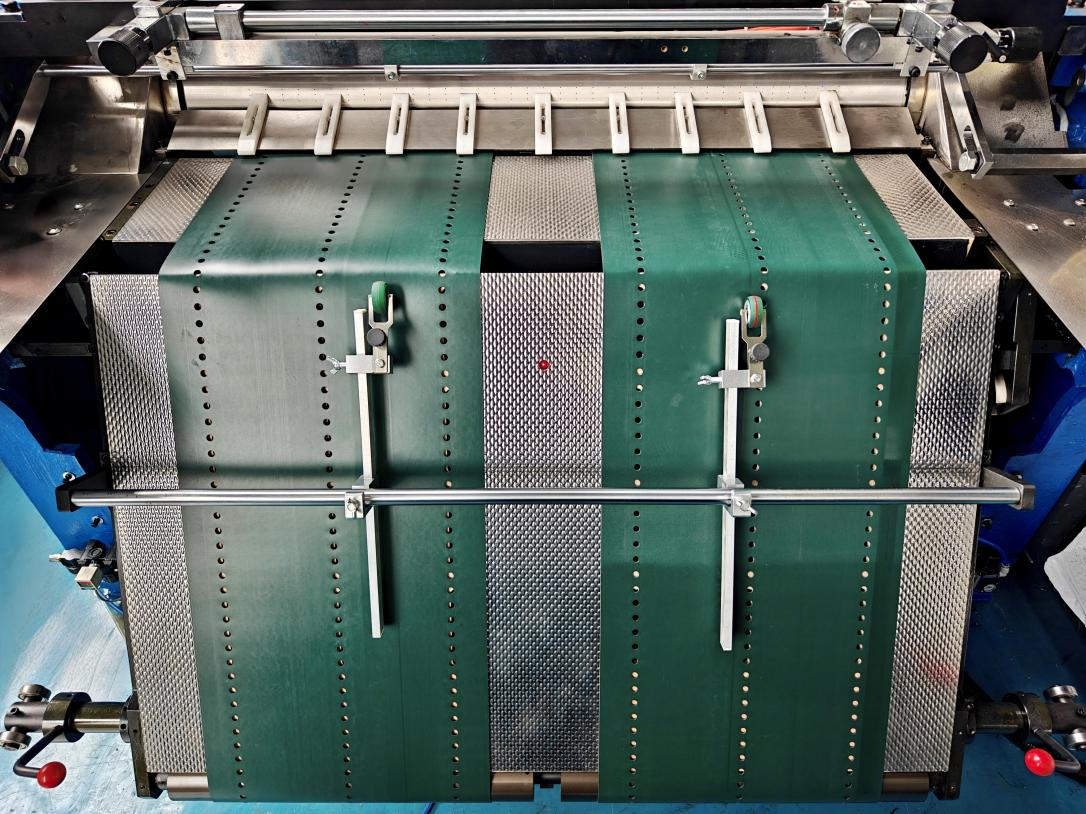

Double vacuum conveyor belt, controlled by the independent frequency. Suitable for different sheet size, avoid the damage to sheets and prevent the paper stuck,

The paper output table that can be flipped 90 degrees, convenient for screen cleaning, loading and unloading

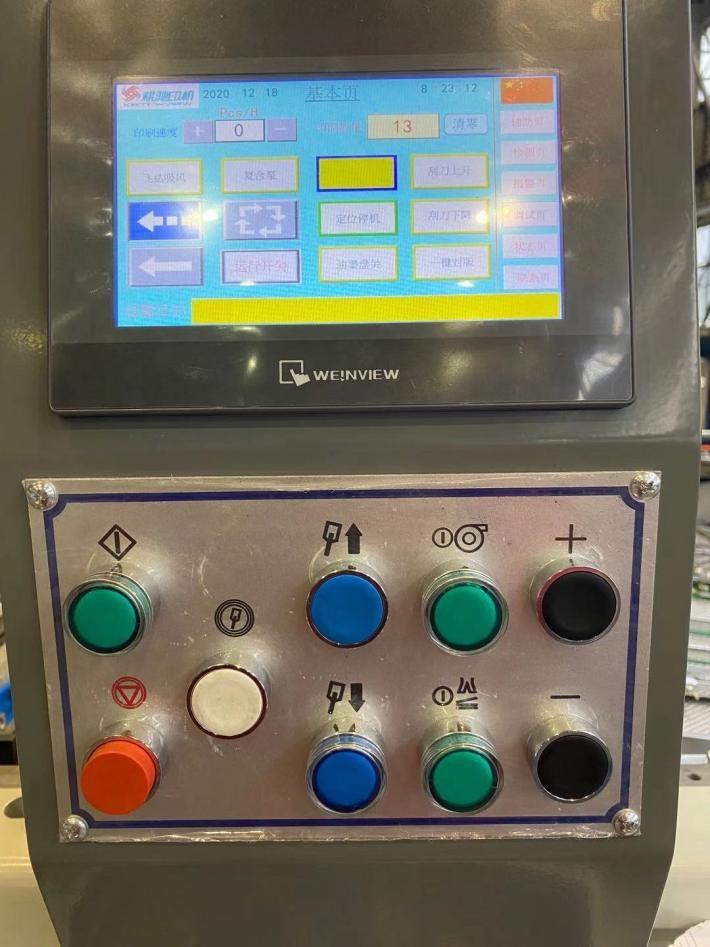

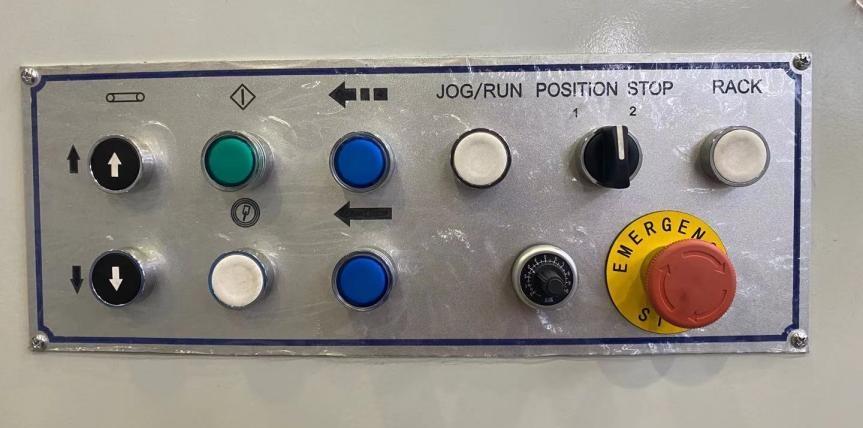

5. Mitsubishi PLC, Yaskawa Frequency components, to ensure the system reliability and stability, the redesigned operation panel operation is more convenient and humanized

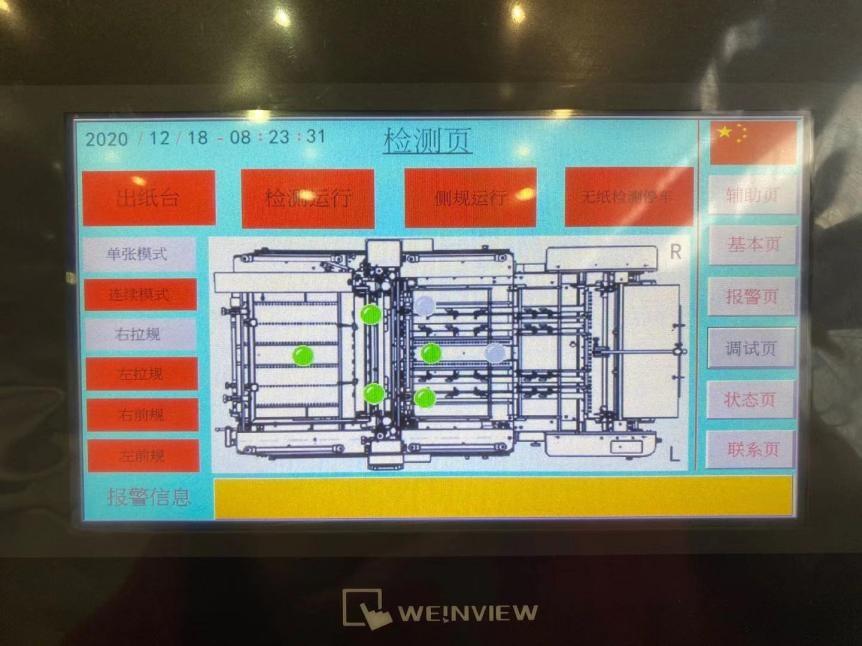

6.The operating system is equipped with a 7-inch touch screen, and the redesigned interface makes it more convenient and faster, and the operation is more intuitive.

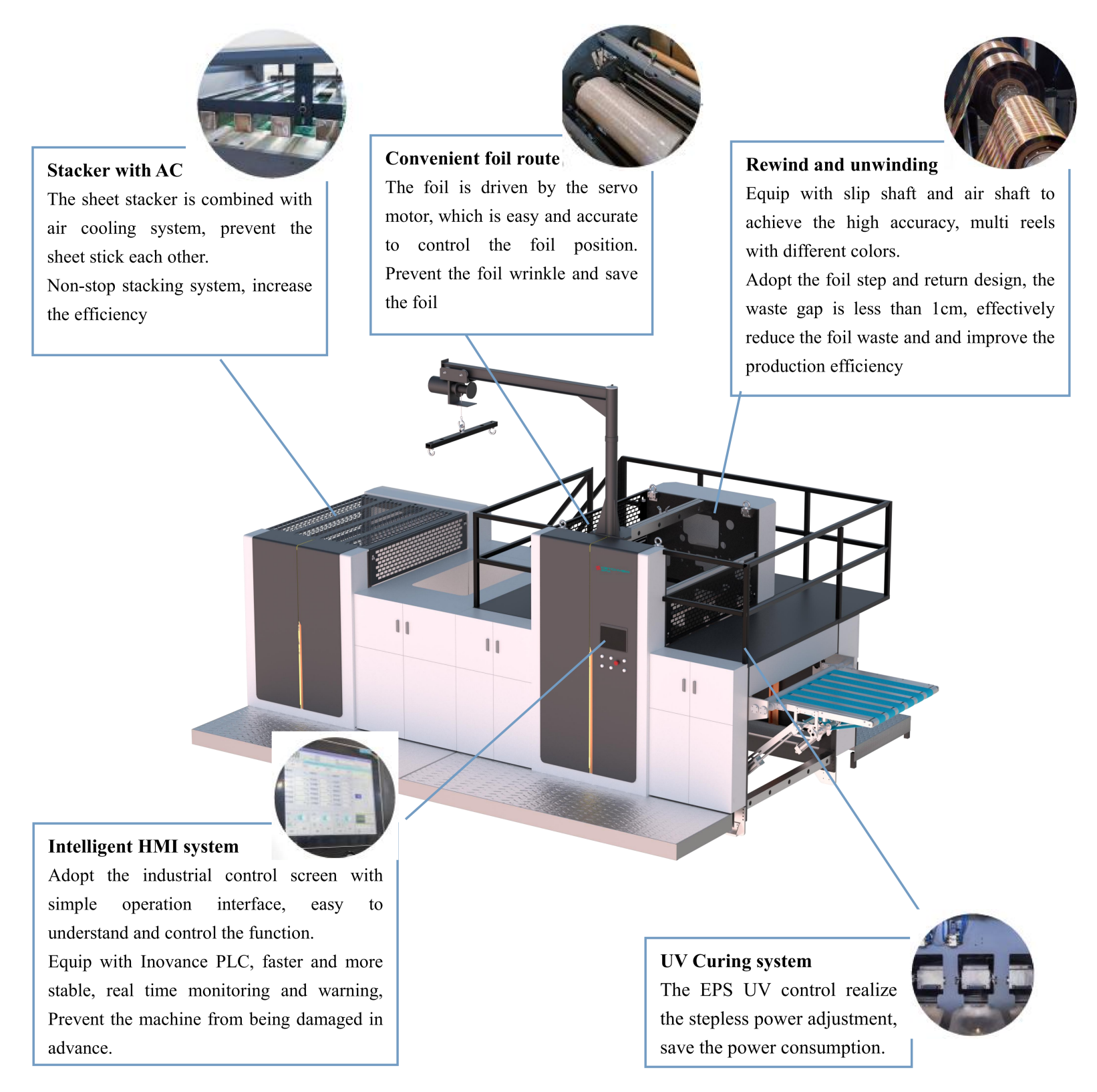

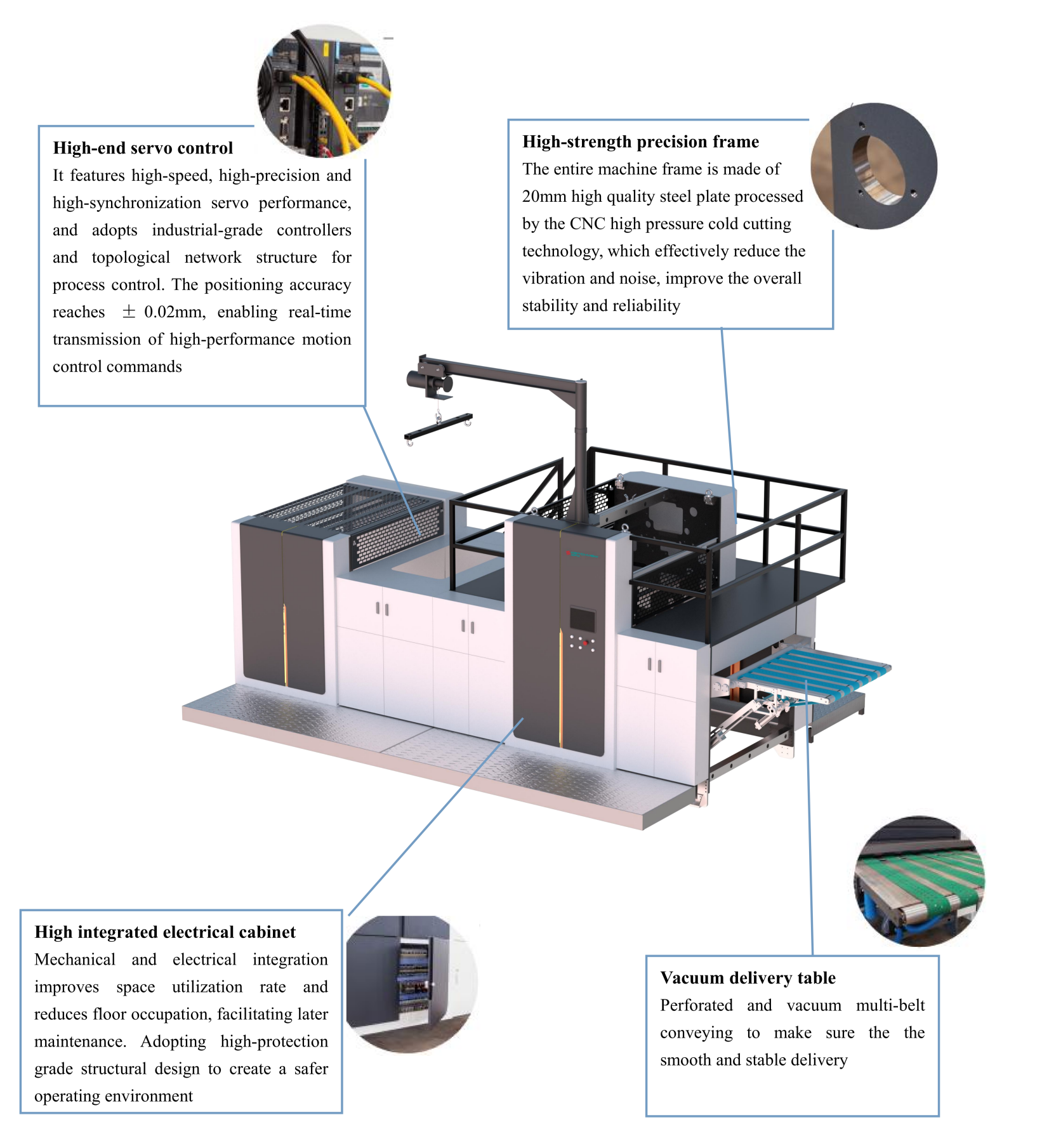

GUVY-1060CS Cold foil Stamping machine

Cold Foil Stamping+ air cooling unit + Paper stacker

This unit can be connected with full automatic screen printing machine, UV spot varnishing machine, It is widely used in high-grade anticounterfeiting printing substrate such as cigarette, wine, medicine, cosmetic, food, digital product, toys, books etc. Different types of paper sheet, plastic sheet packaging.

Functional modular splicing design

Both single machine and combination of high performance, to achieve cold foil stamping,spot UV.

The splicing design has the advantages of compact structure and strong compatibility. It can be used in single machine or multi-module combination, flexible expansion and easy maintenance on demand.

The height can be customized according to the supporting equipment and site environment to achieve the effect of superposition of process, reduce the feeding times and logistics transfer between processes, reduce operators and improve production efficiency. The machine is equipped with safety switch or sensor to ensure production safety.

Material saving

The foil has return and step function. Can achieve the min gap 2-3cm of each stamping

Can use multiple narrow foils to achieve the different effect stamping and save the foil

Technical parameter

The max speed depends on paper size, UV varnish, cold stamping glue,cold stamping film.
