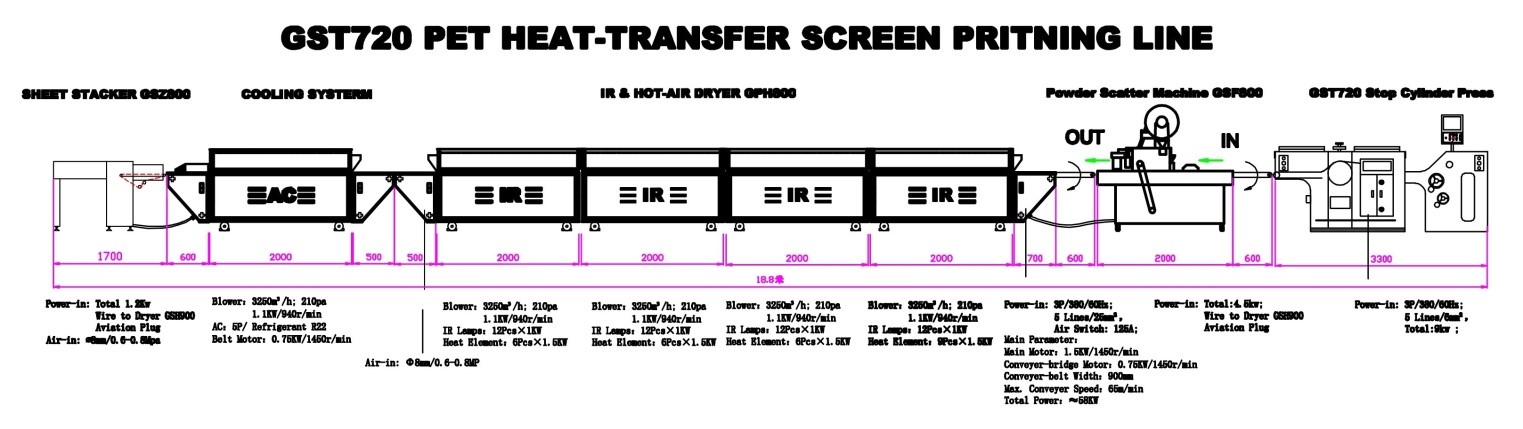

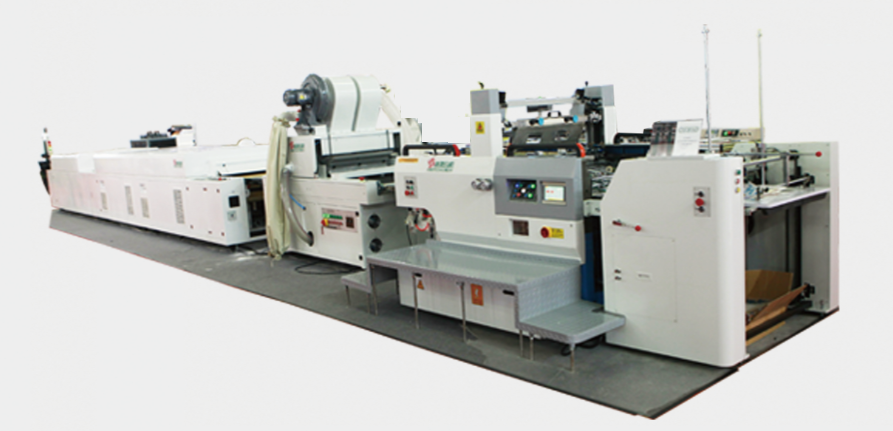

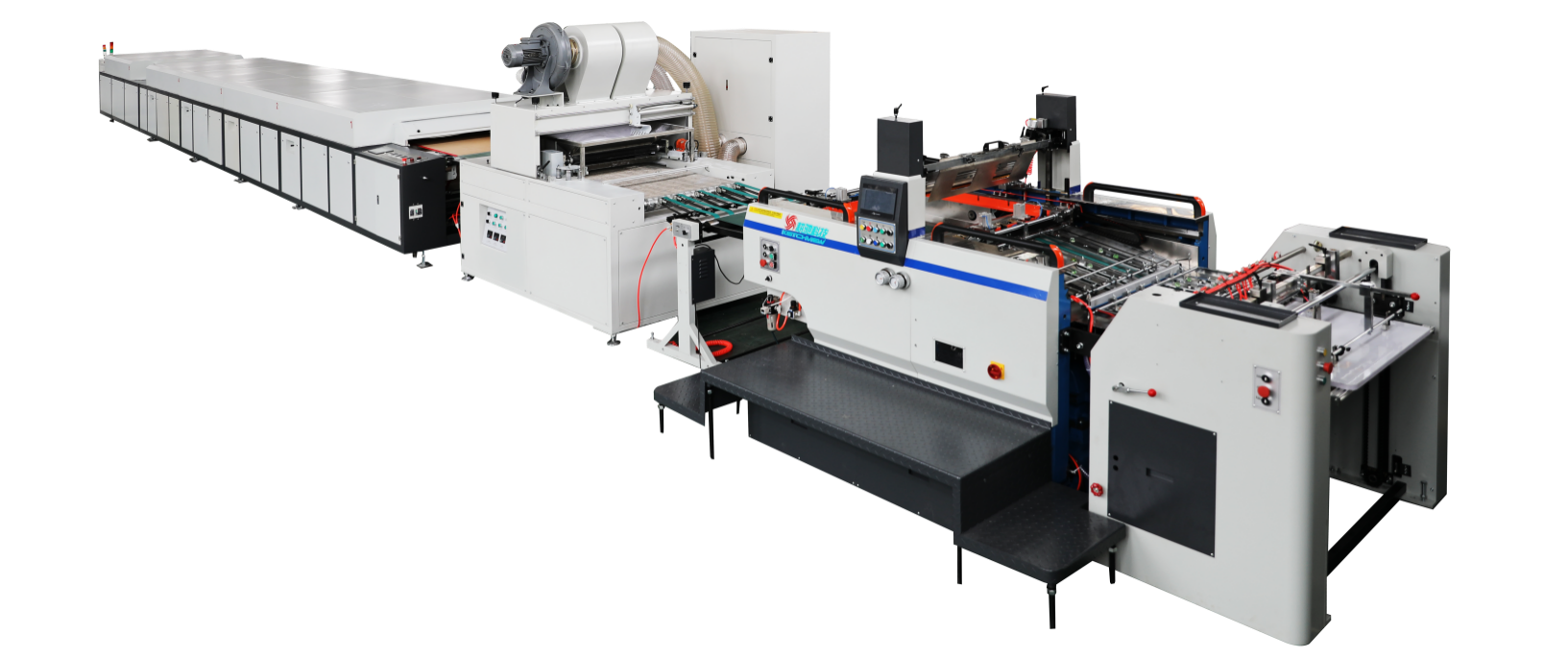

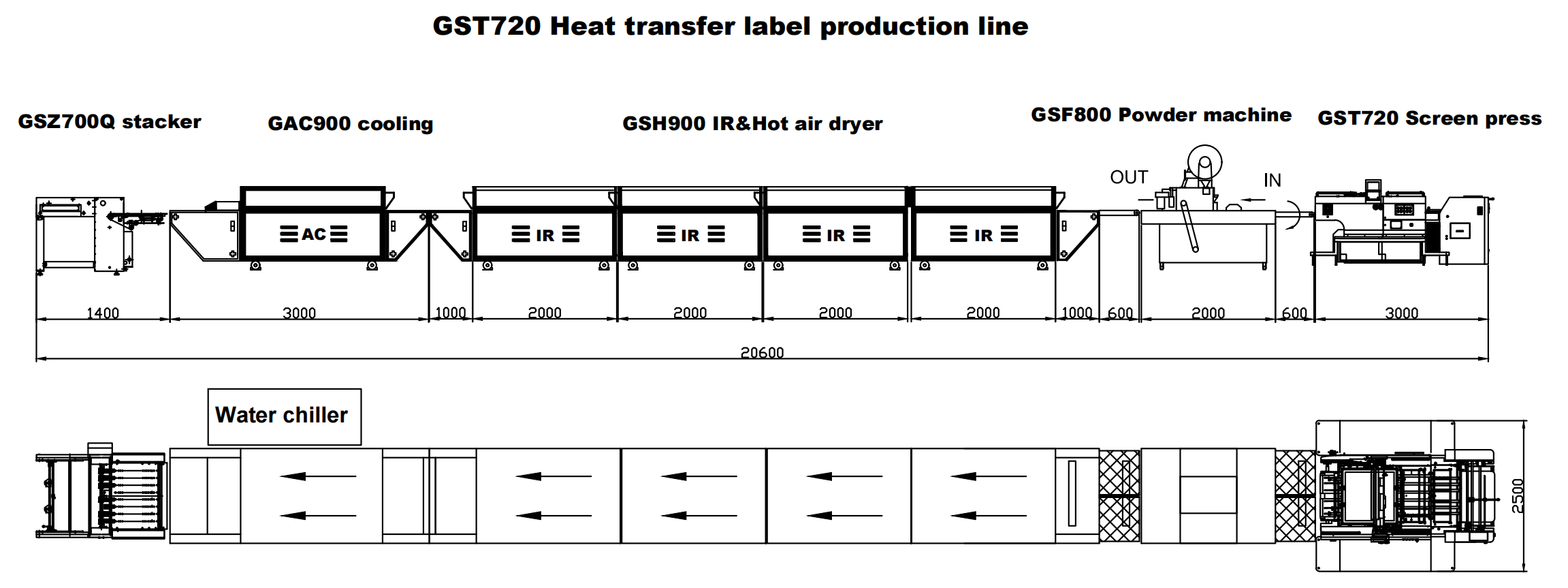

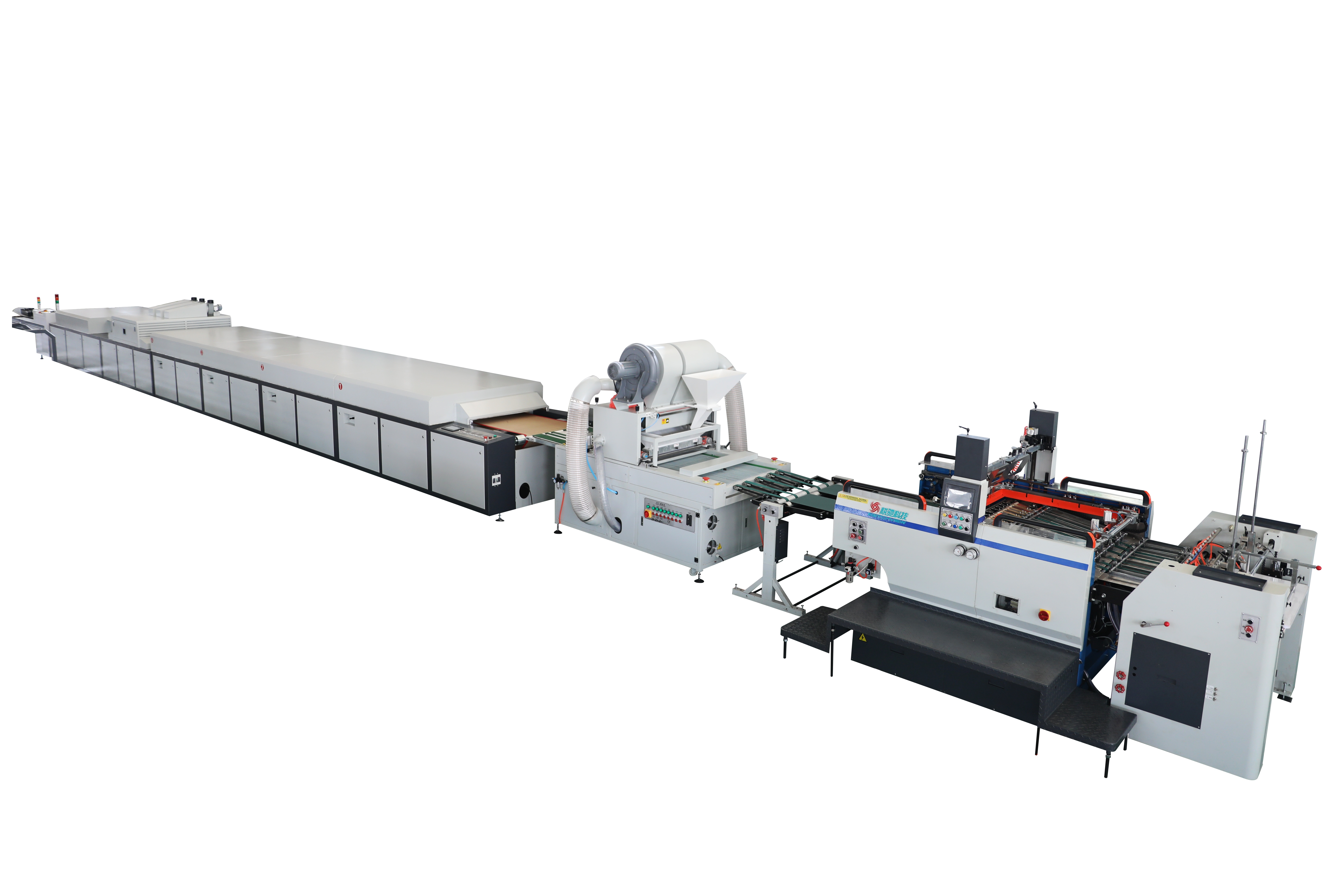

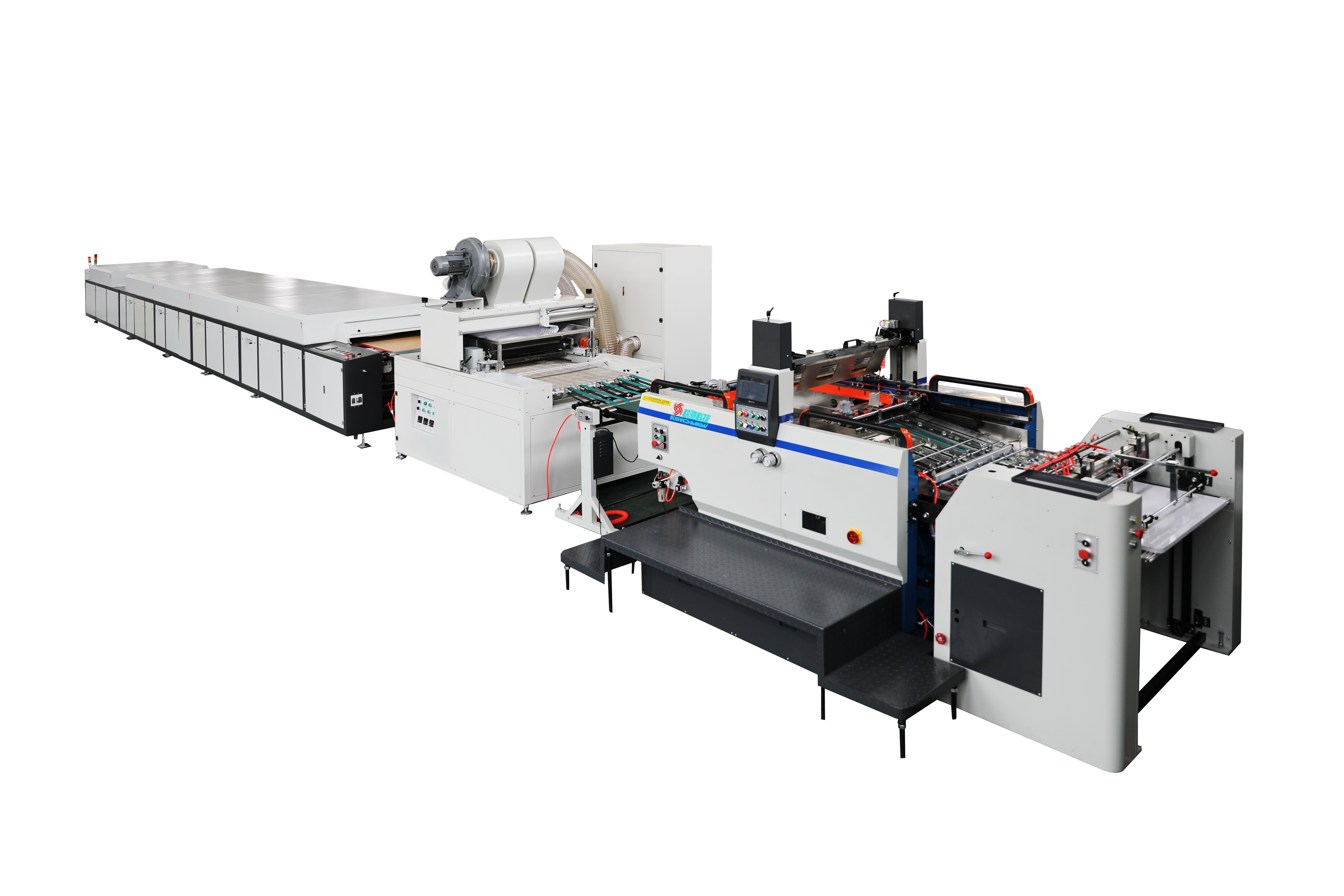

Automatic Heat Transfer Screen Printing Line
Automatic screen printing machine + Powder dusting machine + IR&Hot air dryer + Sheet stacker

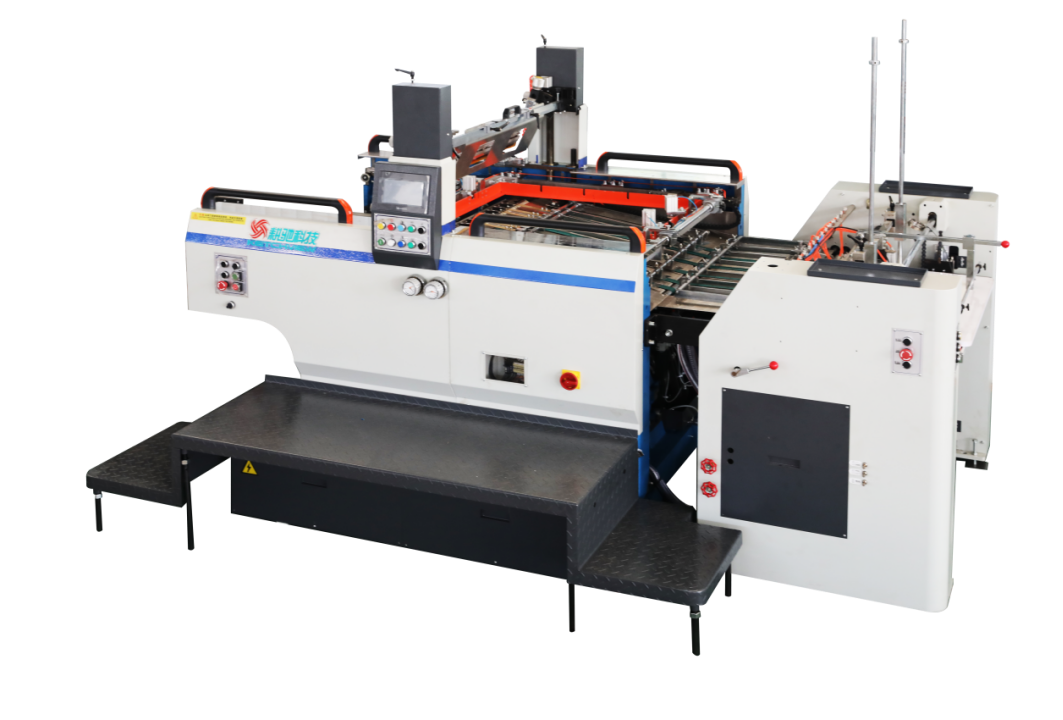

1. Automatic screen printing machine
Brief Introduction
GST Series Automatic Stop-cylinder Screen Printing Machine are upgrade models from Rotary Cylinder Printing Machine recent years. This kind of machine has adopted classical "Stop-cylinder" printing movement instead of the original "reciprocating movement". Therefore, it not only ensures the paper accurate position before scratch- print, but also reduce the producing waster rate. Besides, there is little impact with such high speeds and revolving, which also improves the register precision.
Technical Parameters
MODEL | GST-720 |
Max.Paper Size（mm） | 720×520 |
Min.Paper Size（mm） | 350×270 |
Max.Printing Size（mm） | 720×510 |
*Paper Thickness(g/m2 ) | 90-250 |
*Printing Speed(p/h) | 500--2000 |
Screen Frame Size: (mm) | 880×880 |
Total Power:(kw) | 8 |
Total Weight:(kg) | 3500 |
Dimension(mm) | 3000×2300×1700 |
Main Features
1. Driven by variable frequency brake motor, the whole machine is operated under the centralized control of Mitsubishi PLC. The WEINVIEW-touch screen operation interface displays all functional data, making printing operation more simple and convenient;
2. Adapt the Japan KEYENCE automatic optical fiber positioning detection, in case of, paperless and paper stuck, automatically rises and stops to reduce printing paper waste;
3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;
4. The whole electrical components are imported from Schneider, Mitsubishi, Omron, which greatly improves the stability of the electrical system and reduces the maintenance and overhaul
5. The printing cylinder is made of stainless steel 316L, which is precise and durable. Flexible design of the elastic range of the paper teeth, convenient for the printing of different thickness of paper at any time;
6. The exit paper board can be turned 90 degrees, which is easy to clean screen. Screen can be adjusted up and down, front and back, right and left position

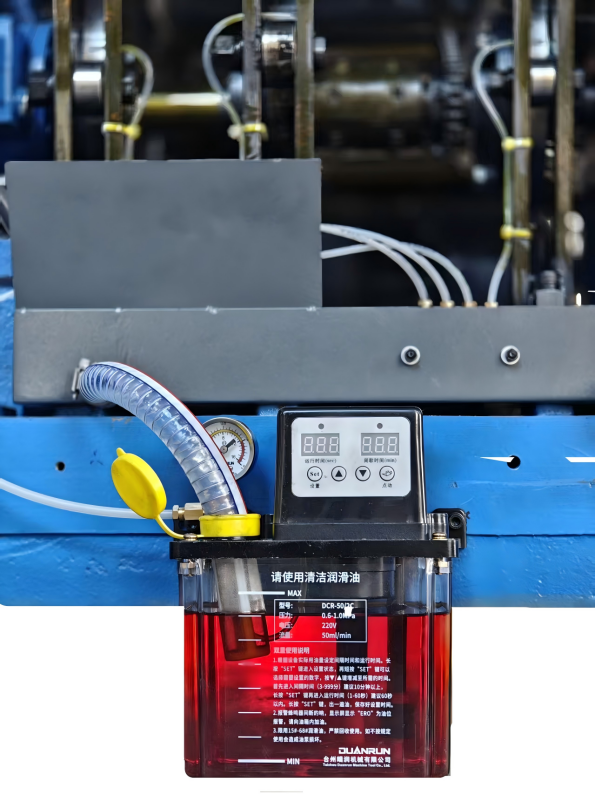

7. Centralized lubrication control system: main drive parts are lubricated automatically, which can effectively extend the service precision and machine life. Most of the bearings are used from NTN and NSK brand
Detail

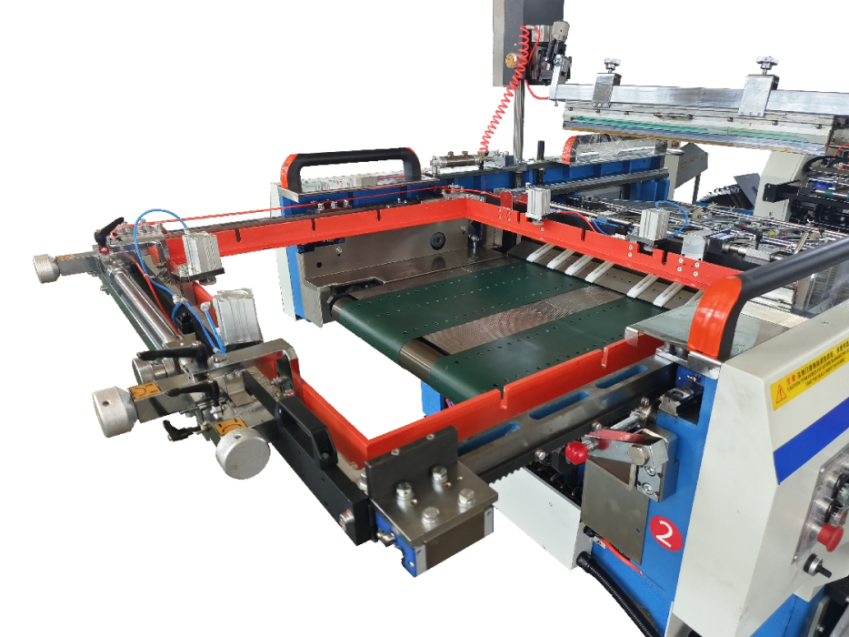

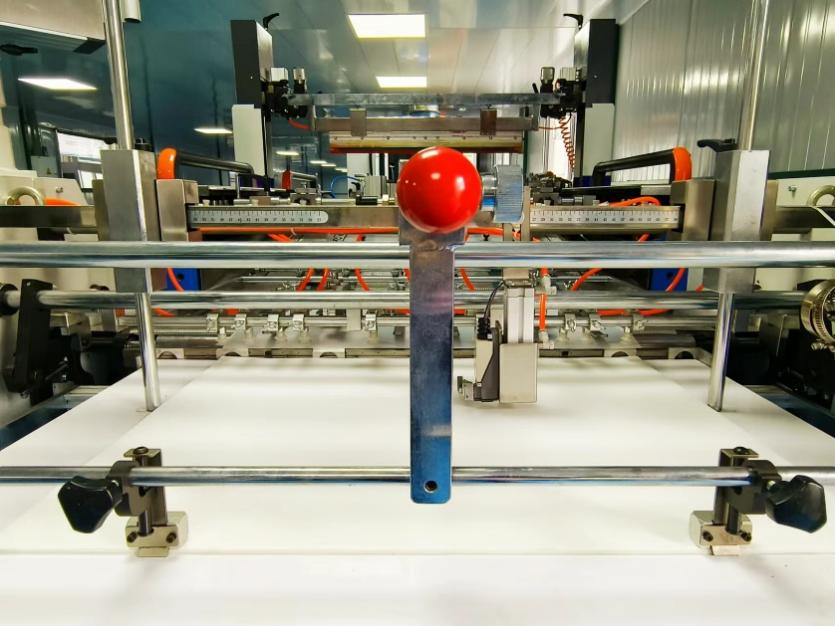

Front pickup feeder, more suitable for the film substrate delivery, smooth and stable

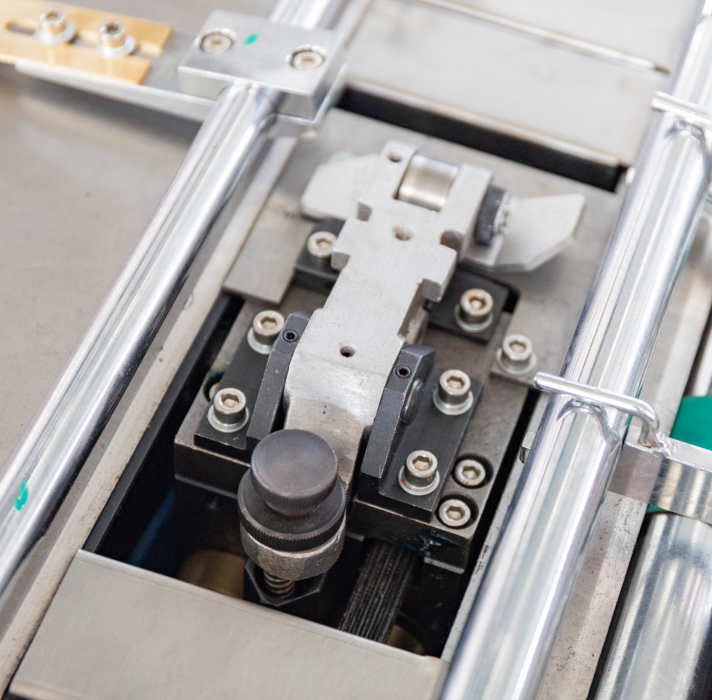

MISUMI pressure wheel, SMC Pneumatic control switch

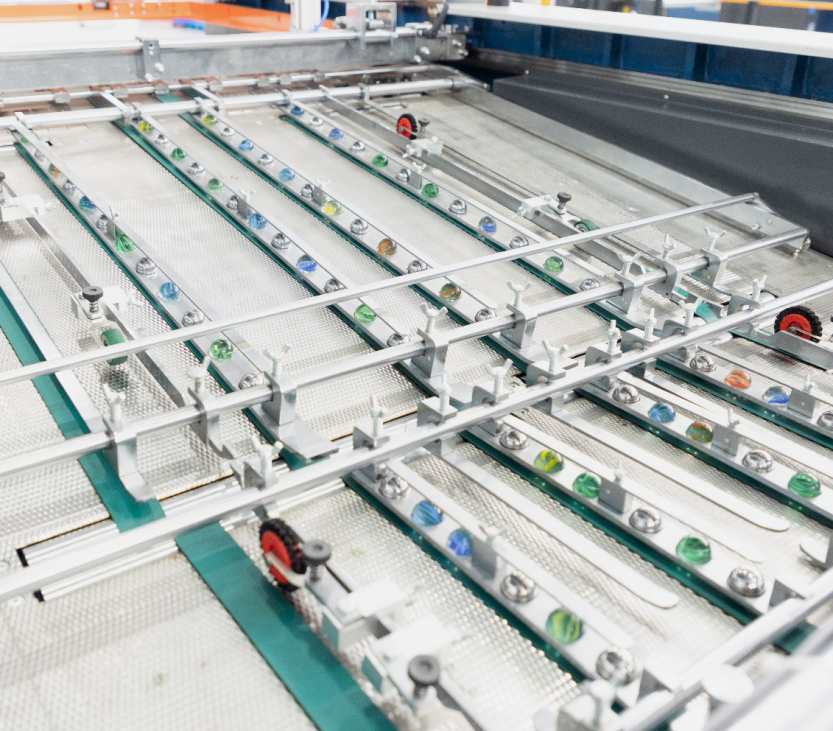

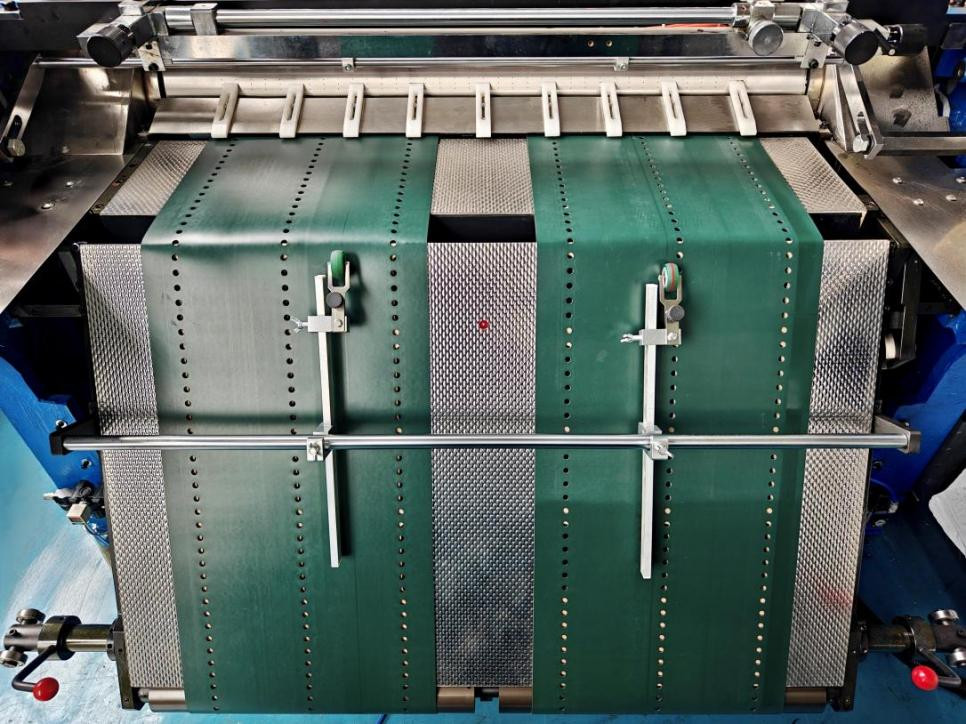

Vacuum paper delivery board, Stainless steel surface

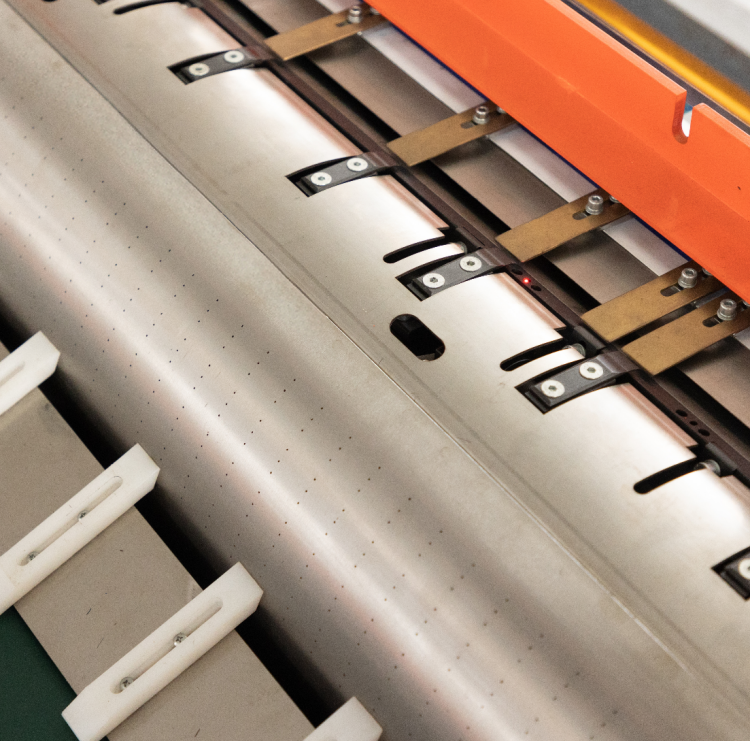

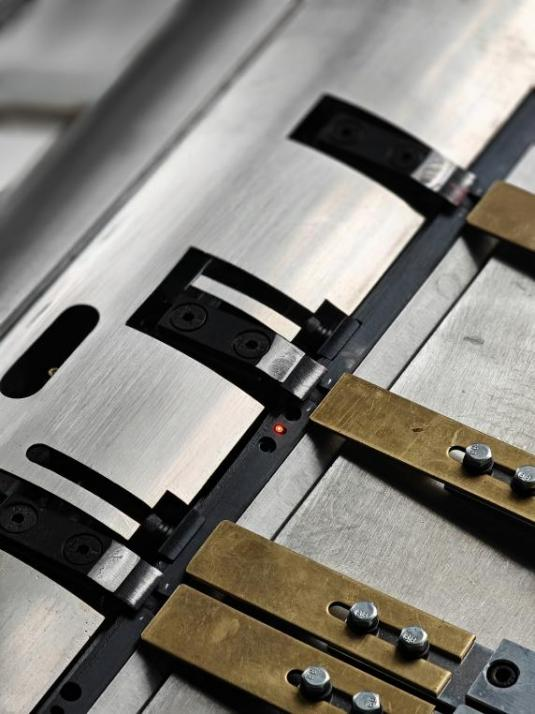

Nylon block protects the cylinder surface, paper table suction can be adjusted, suitable for thick and thin paper
German import handle. Japan THK linear guide
The screen frame can be pulled out of the structure, easy to clean
Mesh screen hook to make mesh tension more even

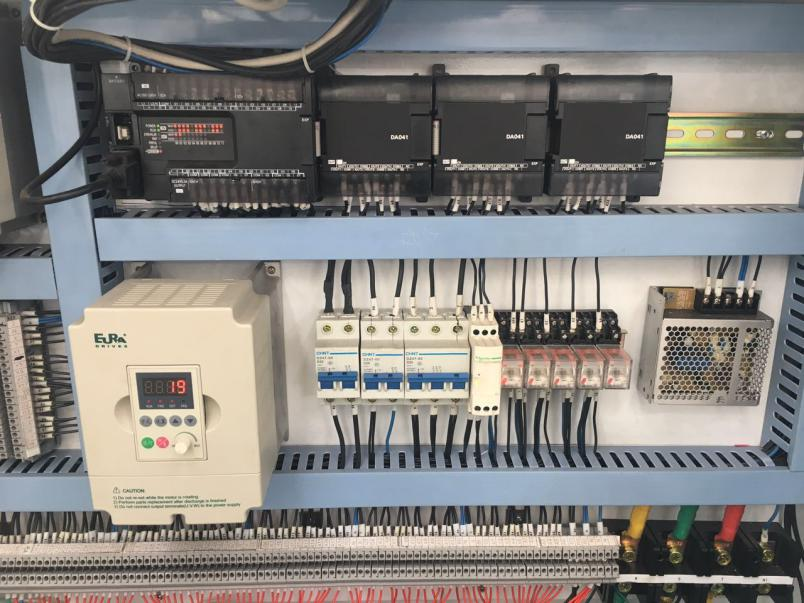

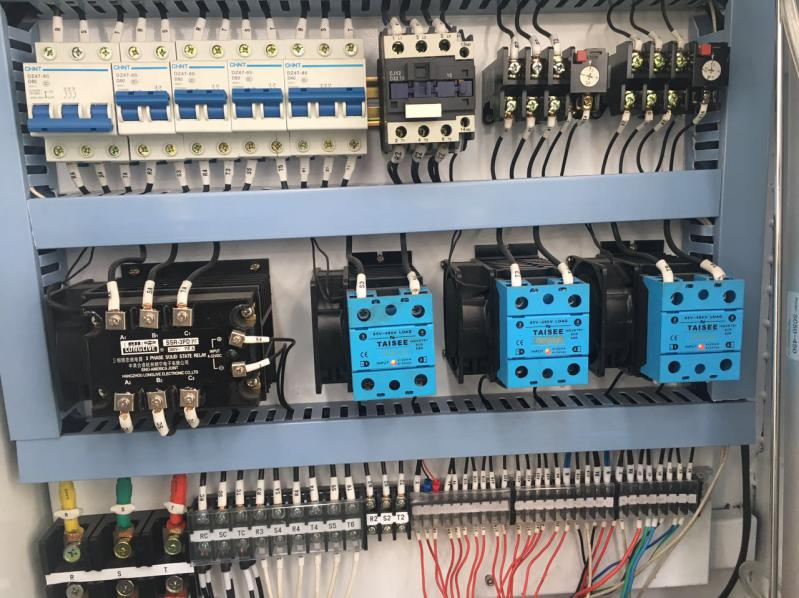

Schneider low voltage electric appliance and button switch, Mitsubishi PLC, Omron optoelectronic switch, KEYENCE fiber amplifier and other imported accessories ensure the stable operation of the system

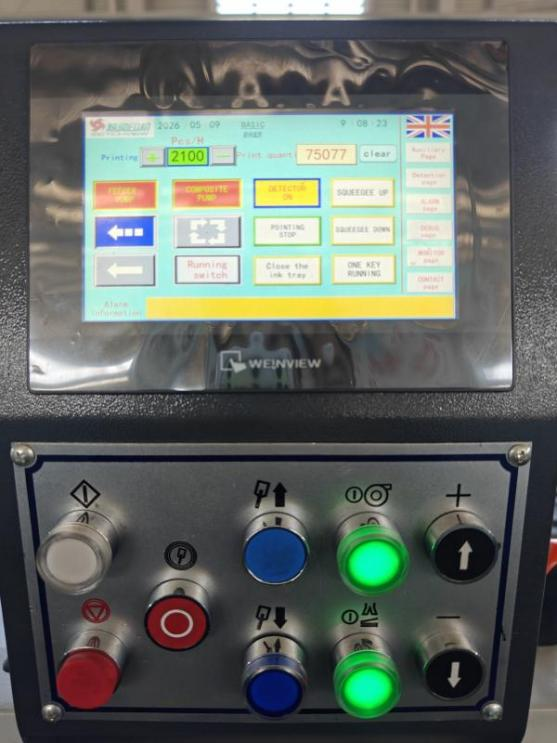

WEINVIEW-touch screen, easy operation

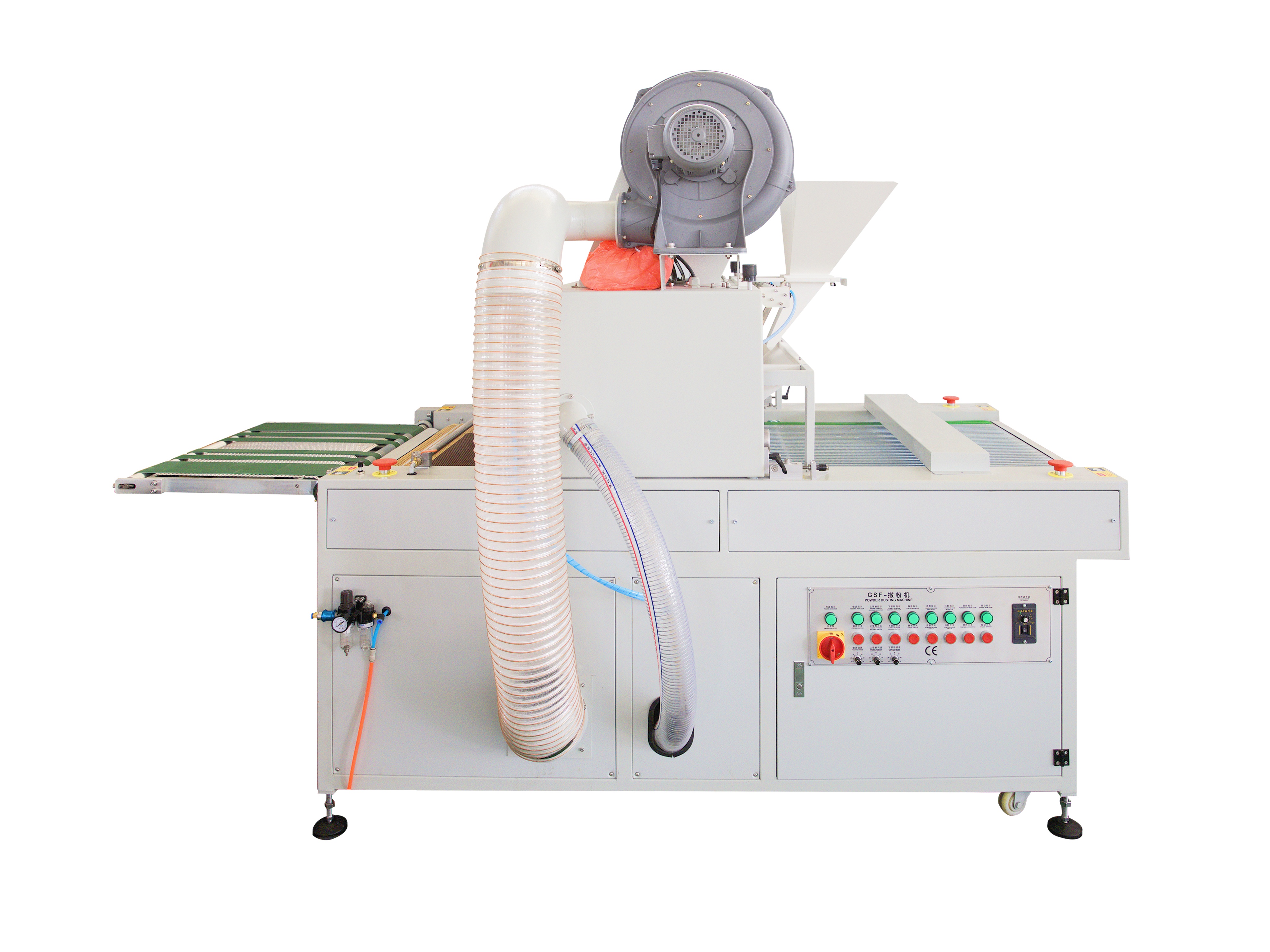

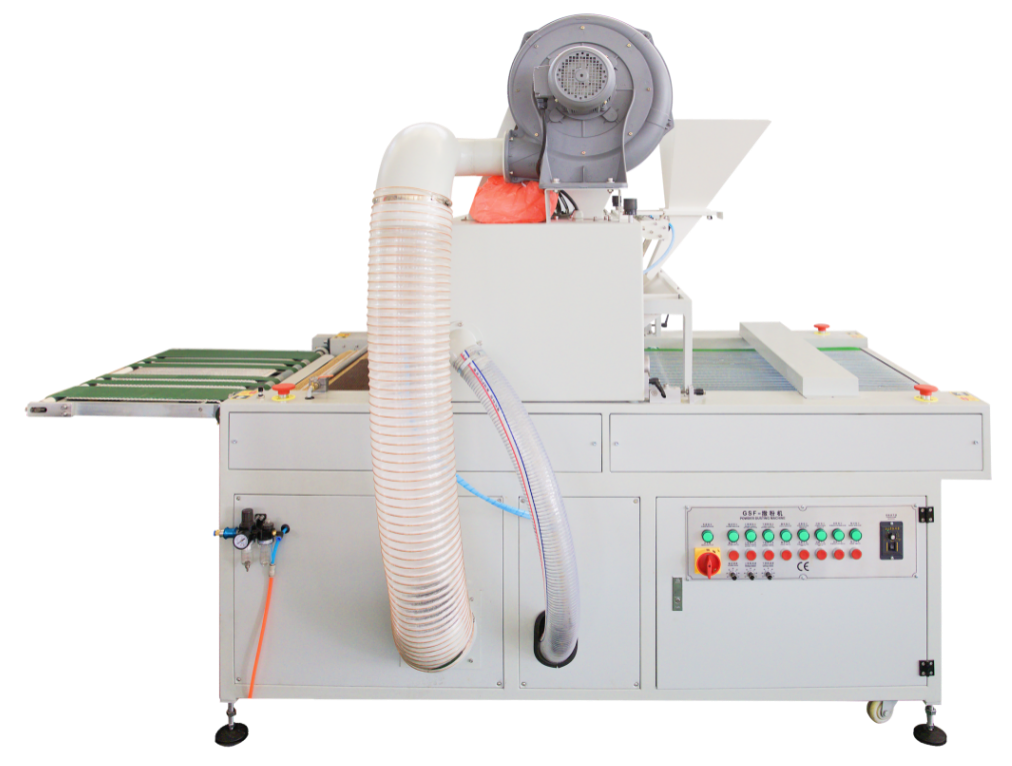

2. Powder Dusting Machine (New improved type)
GSF Series Powder Dusting Machine is specially designed for heat transfer, Plastic sheet printing, glitter decoration etc. The machine works following the screen press, after power spraying on the printing area on the sheets.it is easy to connect to the UV Dryer, IR&Hot-air oven and Wicket Dryer etc.
In our latest design, vacuum systems provide a strong cleaning function, ensuring effective cycling.

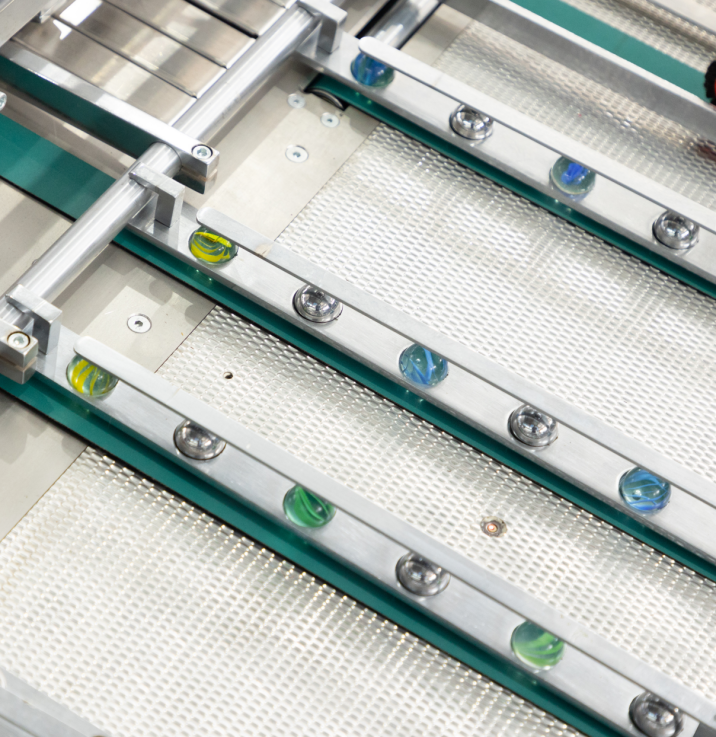

New soft conveyer belt guarantees no scratching of the substrates.
There are also new functions like sensor control feeding, air-knife isolating and stainless steel inner, surface, which guarantee the machine works for the better performance to meet or exceed customer requirements.
Technical Parameters
Model | GSF800 |
Width of Transmission Belt (mm) | 800 |
Width of Powdering (mm) | 650 |
Thickness of Paper (mm) | ≤15 |
Total Power (KW) | 4 |
Speed (pcs/hour) | 800-2500 |
Dimensions (mm) | 2200X1500X1800 |

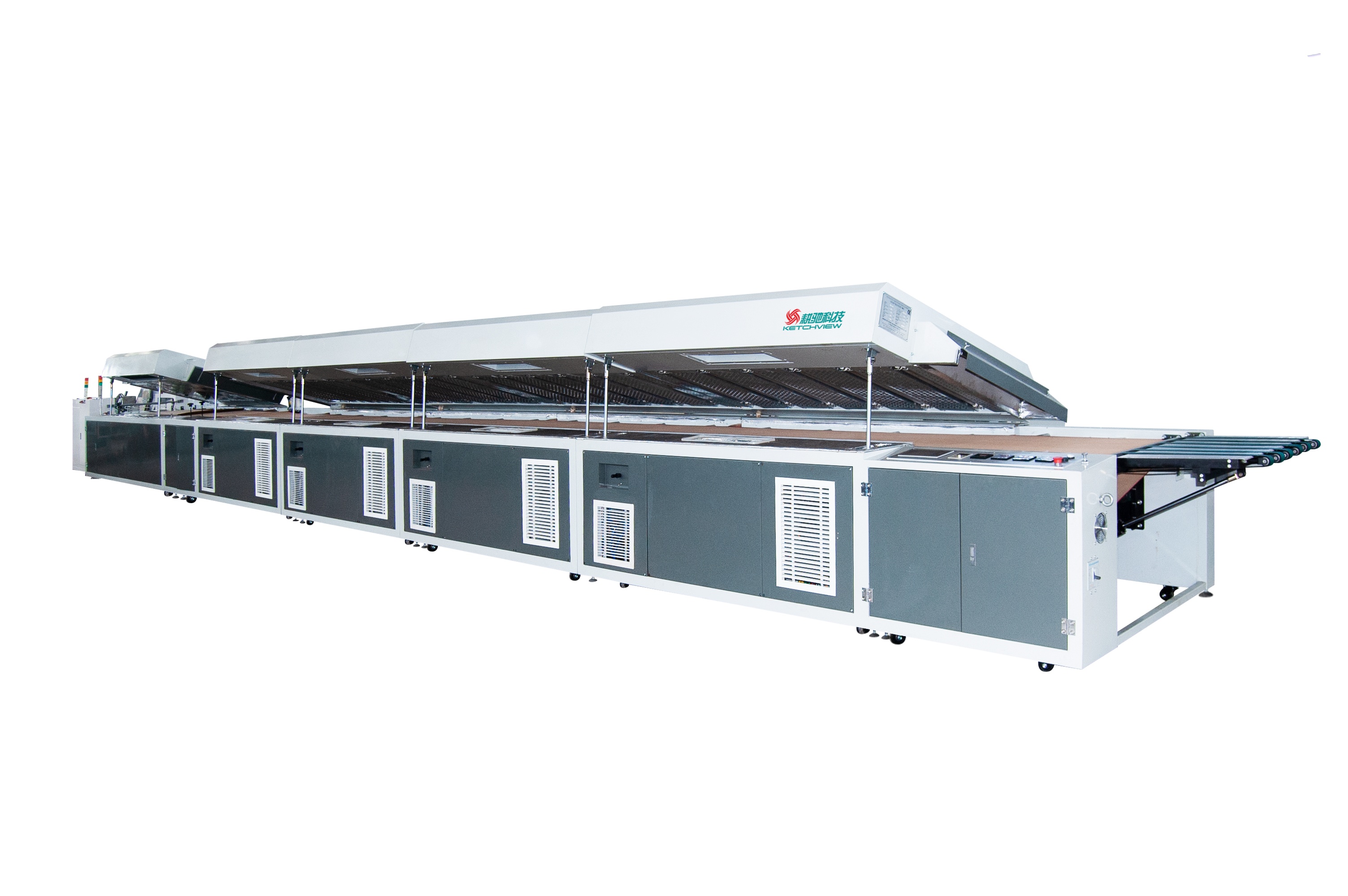

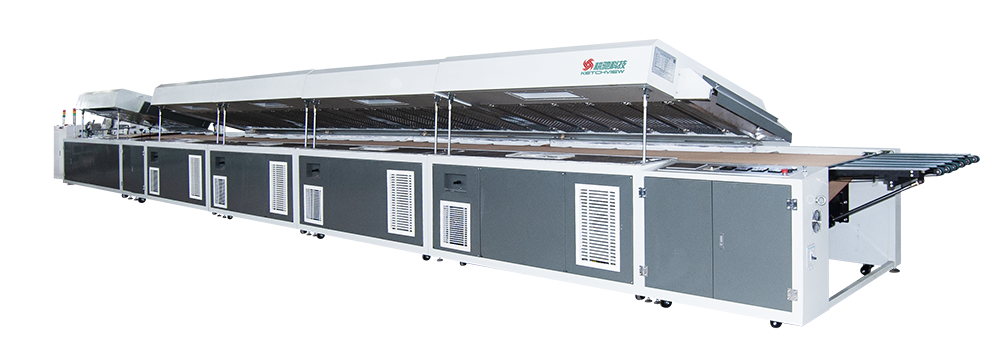

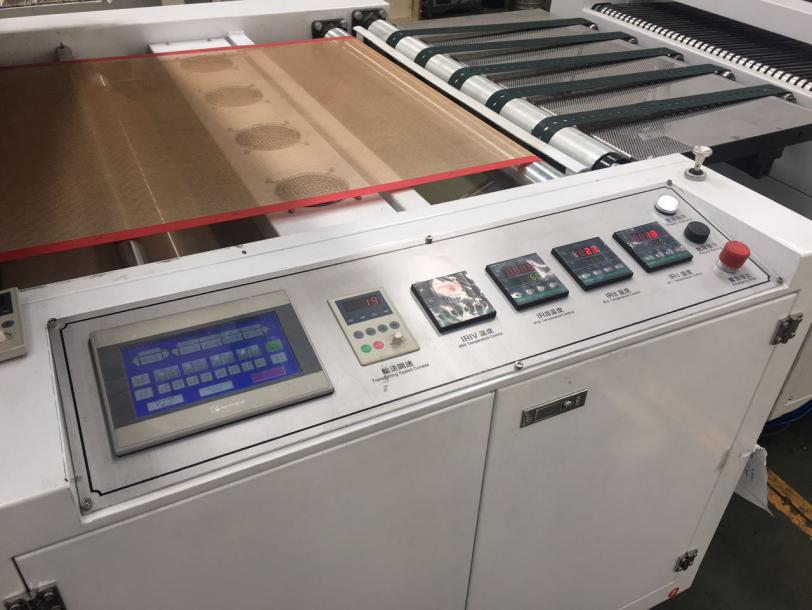

3. IR&Hot air Dryer
GSH Series Hot-air conveyor belt dryer special designed for different kinds of ink printing. It widely used in printing paper, plastic etc.
New insulating layer, inside temperature can be Max.150℃，
hot air cycle is more homogeneous.
New air suction and exhaust system, sheet will move forward more steadily.
Features:

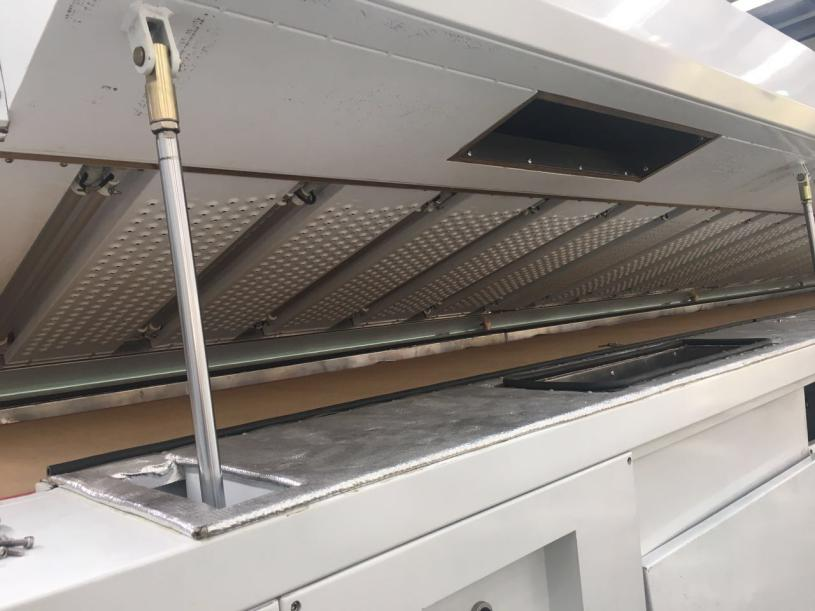

1. Hot-air(IR) and Cooling Air spray down through holes of insulating board.
Winds press the paper attached to the belt tightly, uniformity temperature makes the ink drying quickly. Therefore, the paper's contractility is reduced and the register precision can be improved.
2. The frequency conversion device makes driving more steadily. The machine can be available to many printing modes' drying: handwork, semi-automatic and high-speed automatic printing.
3. The machine has tension device which can rectify automatically in conveying. And the device can be adjusted easily.
4. For the latest design, vacuum system have the strongly cleaning function, cylinder well condition. New soft conveyer belt guarantee the substrate no scratch.
5. There are also new functions like sensor control feeding, air-knife isolating, stainless steel inner, surface, which are guarantee the machine working for the better performance as per all customers requirements.
Including Industrial water in Cooling unit
Technical Parameters
Model | GSH800 |
Max Conveying width (mm) | 800 |
Max. Heating Temperature (mm) | ≤130ºC |
Speed (M/Min) | 10-50 |
IR Lamp system | 4Unitx 12pcsx1KW |
Heater | 4Unitx6pcsx1.5KW |
Cooling-air System | 1 Unit × 3100mmx5.5KW |
Total Power (KW) | 110 |
Dimension (mm) | 13000x1700x1300 |
Wight (kg) | 4500 |

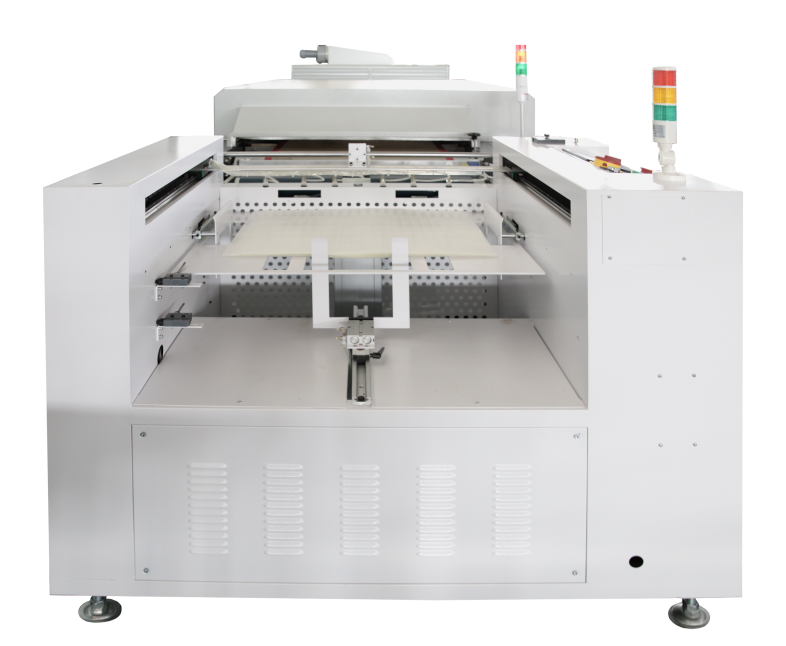

Stacker
GSZ sheet stacker is one of accessorial equipment to automatic cylinder screen printing machine, It is used to collect and pile paper which can improve you product efficiency.
Features:
1. This machine is made up of input-bracket mechanism, pushing-paper mechanism, piling-board up-down mechanism and electric control system.
2. Input-bracket mechanism contains conveyor belts and blowing device. The conveyor belts are drove by motor, which speed is adjusted by transducer.
3. The blowing device is used to blow-up the paper to move a distance after leave from the belt. The paper will continue to go ahead by the air flow. Then the blowing is shut off, the paper drop down to the piling-board.
4. The pushing mechanism is drove by pneumatic cylinder. The position of the cylinder is adjusted easily, so as to suit for different size papers.
5. Piling-board up-down mechanism is drove by four synchronous chains from electromagnetic motor. The board can be stopped accurately with a certain level.
6. Electric control system is controlled by PLC. The system is convenient and safety.
Technical Parameters
Model | GSZ800 |
Max paper size (mm) | 800X600 |
Min paper size (mm) | 400X300 |
Max Pilling height (mm) | 600 |
Total power (KW) | 1 |
Total weight (Kg) | 600 |
Dimension (mm) | 2000x1900x1200 |
