WPT
I. Introduction

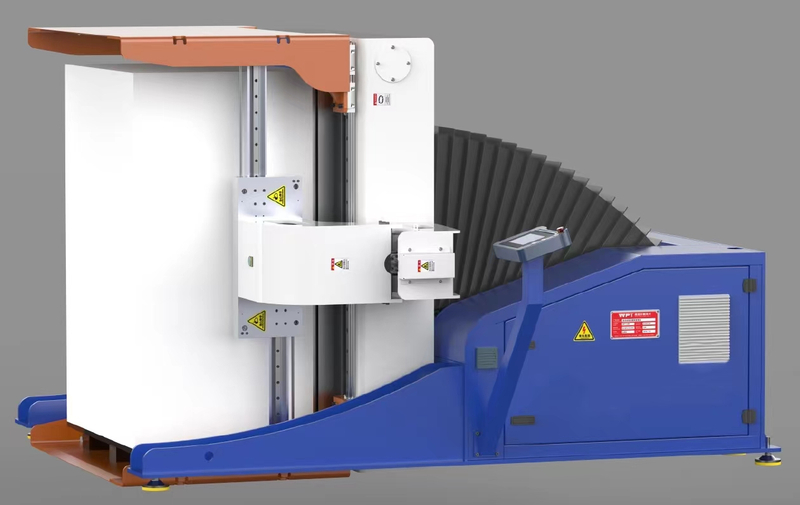

WPT-127A Automatic Paper Stack Flipping Machine is to loosen the single sheet paper pile before press and post-press to remove dust and reduce ink Odor. The edge of the paper is 90 degrees, change the special tray, the paper pile is automatically turned over when printing on both sides.
This equipment adopts automatic one-button start operation, thereby reducing labor intensity and saving labor, and improving production efficiency rate and printing quality, reduce the chance of double sheet downtime of printing and post-processing equipment.
II. Features and configuration
1. Equipped with 4 automatic operation program modes
2. Equipped with 3-channel independent blowing system
3. Equipped with side gauge automatic movement system
4. Equipped with man-machine interface test and parameter debugging system
5. Equipped with tray centering function
6. Equipped with wireless remote control operating system
7. Equipped with operation warning system
8. Equipped with blowing non-winding coupling system
9. Equipped with vibration stepless frequency modulation system
10. Equipped with blowing stepless pressure regulation system
11. Equipped with oil pressure non-winding coupling system
12. Equipped with digital clamping pressure control system
13. Equipped with stepless speed regulation system for blowing speed
14. Equipped with upper and lower pallet removal system
15. Equipped with power-off automatic program memory system
16. Equipped with side gauge automatic paper detection system
17. Adopt PCB integrated wiring system
III.Technical Parameter:
Maximum paper size | 1270*870mm |
Maximum pallet size | 1300*900mm |
Minimum paper size | 500*400mm |
Maximum stack height | 1500mm (including tray) |
Minimum stack height | 750mm (including tray) |
Number of blowers | 3pcs |
Wind pressure | 43kpa |
Total Power | AC380V 3P 50HZ 12kw |
Noise | 65-75db |
Rate of flow | 1530m3/h |
Maximum load | 1500kg |
Total weight | 3000kg |
Flip method: 180 degrees flip from the complex positioning accuracy of 0.08 degrees
