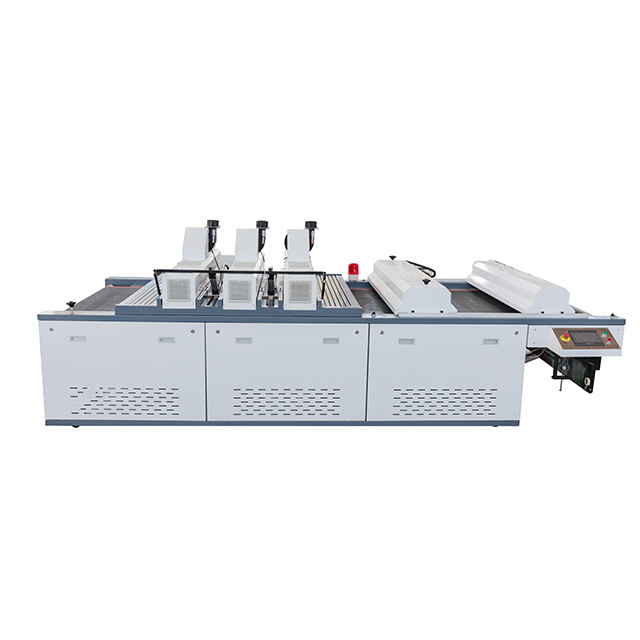

GUV(GUV/IR) series UV Dryer
The dryer is widely used for drying UV ink printed on paper, PCB. PEC and nameplate of instrument printing etc.
Availability: | |
---|---|
Quantity: | |
Features
1. It uses special wave length to solidify the UV ink. Through this reacting, it can give the printing surface high hardness, brightness, anti-attrition and anti-solvent
2. The convey or belt is made of TEFLON imported from American; it can endure high temperature, attrition and radiation.
3. The stepless speed-adjusting device makes driving more steadily. It can be available to many printing modes whatever handwork, semi-automatic and, high-speed automatic printing.
4. Through two sets of air-blower system, the paper can adhere to the belt firmly.
5. The machine can work in many modes: single-lamp, multi-lamps or half-power solidifying etc, which can save electric power and extend the lamp’s life.
6. The machine has stretching device and automatic rectifying device.
7. They can be adjusted easily.
8· There are 4 foot-wheels fixed under the machine which can move the machine easily.
Model | GUV/IR900 | GUV/IR 1050 |
Max conveying width(mm) | 900 | 1150 |
Conveyor Belt Speed(m/min) | 0-65 | 0-65 |
UV Lamp’sxQTY(kw xpcs) | 8x3 | 10x3 |
IR Lamp’s xQTY(kw xpcs) | 1x3 | 1x3 |
Total power(kw) | 33 | 39 |
Total weight(kg) | 1000 | 1200 |
Dimension | 50000x1600x1300 | 50000x1800x1300 |
Features
1. It uses special wave length to solidify the UV ink. Through this reacting, it can give the printing surface high hardness, brightness, anti-attrition and anti-solvent
2. The convey or belt is made of TEFLON imported from American; it can endure high temperature, attrition and radiation.
3. The stepless speed-adjusting device makes driving more steadily. It can be available to many printing modes whatever handwork, semi-automatic and, high-speed automatic printing.
4. Through two sets of air-blower system, the paper can adhere to the belt firmly.
5. The machine can work in many modes: single-lamp, multi-lamps or half-power solidifying etc, which can save electric power and extend the lamp’s life.
6. The machine has stretching device and automatic rectifying device.
7. They can be adjusted easily.
8· There are 4 foot-wheels fixed under the machine which can move the machine easily.
Model | GUV/IR900 | GUV/IR 1050 |
Max conveying width(mm) | 900 | 1150 |
Conveyor Belt Speed(m/min) | 0-65 | 0-65 |
UV Lamp’sxQTY(kw xpcs) | 8x3 | 10x3 |
IR Lamp’s xQTY(kw xpcs) | 1x3 | 1x3 |
Total power(kw) | 33 | 39 |
Total weight(kg) | 1000 | 1200 |
Dimension | 50000x1600x1300 | 50000x1800x1300 |
