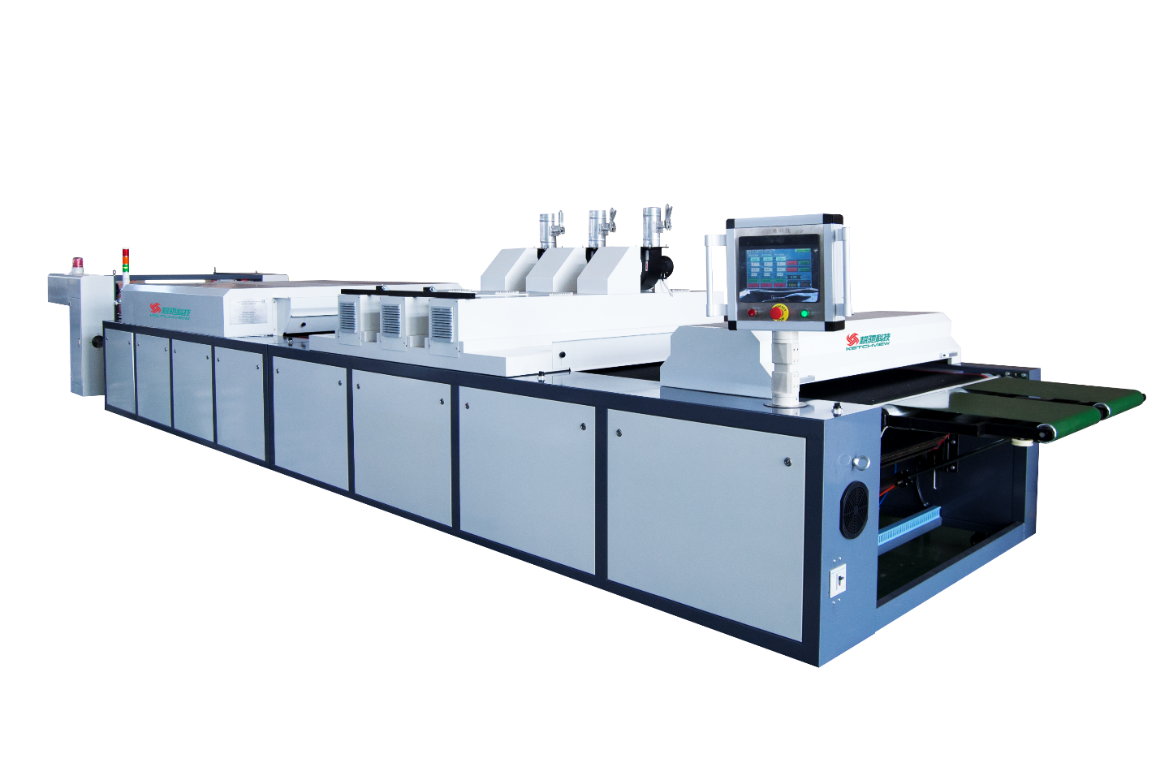

GUV/IR Multi-function IR and UV Dryer

GUV/IR Multi-function IR and UV Dryer

The dryer is widely used for drying UV ink printed on paper, PCB. PEC and nameplate of instrument printing etc.

It uses special wave length to solidify the UV ink. Through this reacting, it can give the printing surface high hardness, brightness, anti-attrition and anti-solvent

Main features:

1. The convey or belt is made of Teflon, it can endure high temperature, attrition and radiation.

2. The stepless speed-adjusting device makes driving more steadily. It can be available to many printing modes whatever handwork, semi-automatic and, high-speed automatic printing.

3. Through two sets of air-blower system, the paper can adhere to the belt firmly.

4. The machine can work in many modes: single-lamp, multi-lamps or half-power solidifying etc, which can save electric power and extend the lamp’s life.

5. The machine has stretching device and automatic rectifying device.

6. There are 4 foot-wheels fixed under the machine which can move the machine easily.

7. Electronic-transformer with stepless power-adjustment

8. UV lamp exhaust, conveyor belt under air suction, conveyor light box exhaust

9. The height of the lamp is adjustable, and the wire grid is pulled down to prevent the burning of jammed paper

10. Equipped with light box opening alarm, paper jam alarm, light box high temperature protection and other safety protection;

Technical parameter

Details

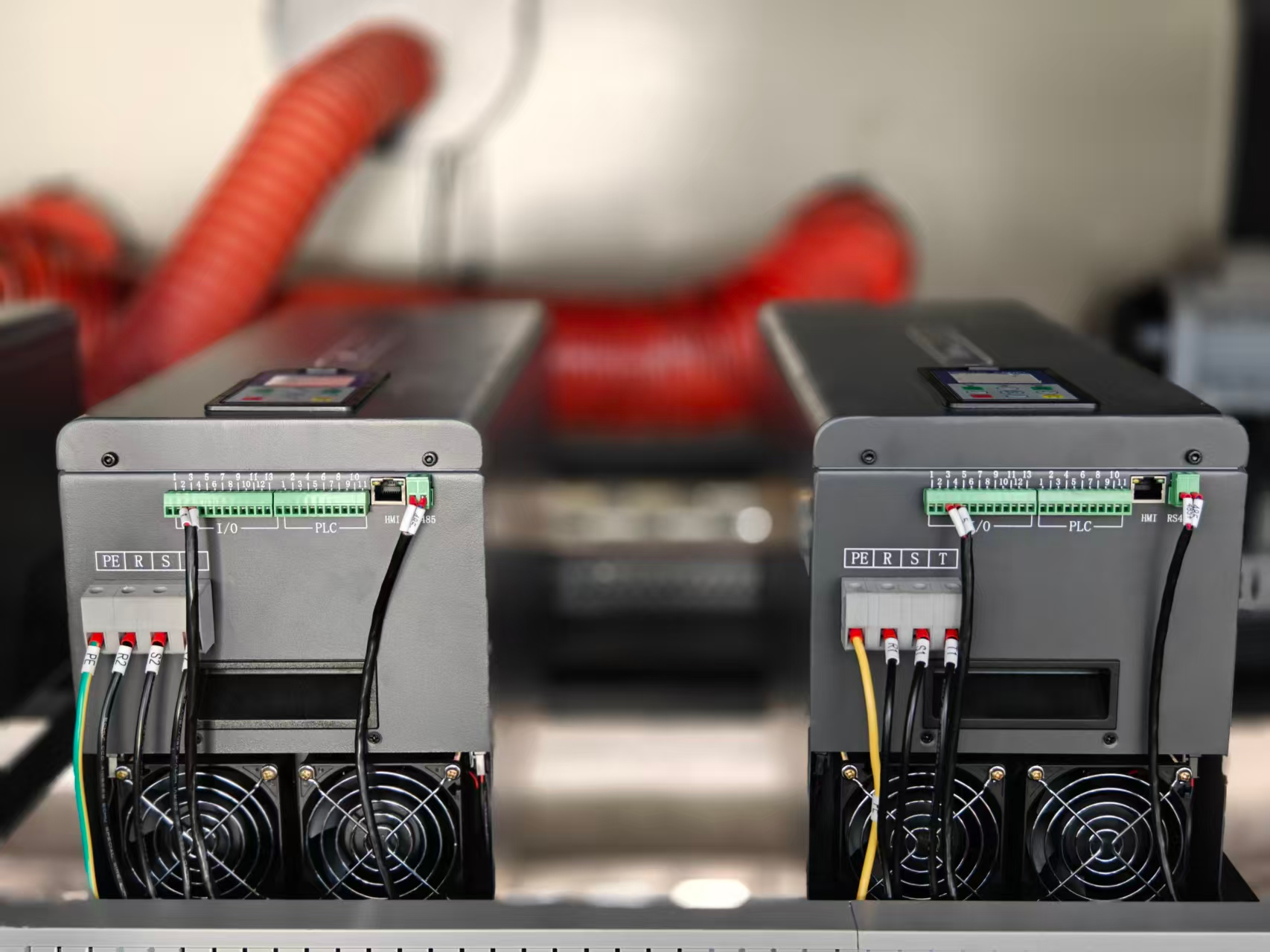

1. Electric power supply with stepless power-adjustment

2.The convey belt is made of Teflon; it can endure high temperature, attrition and radiation.

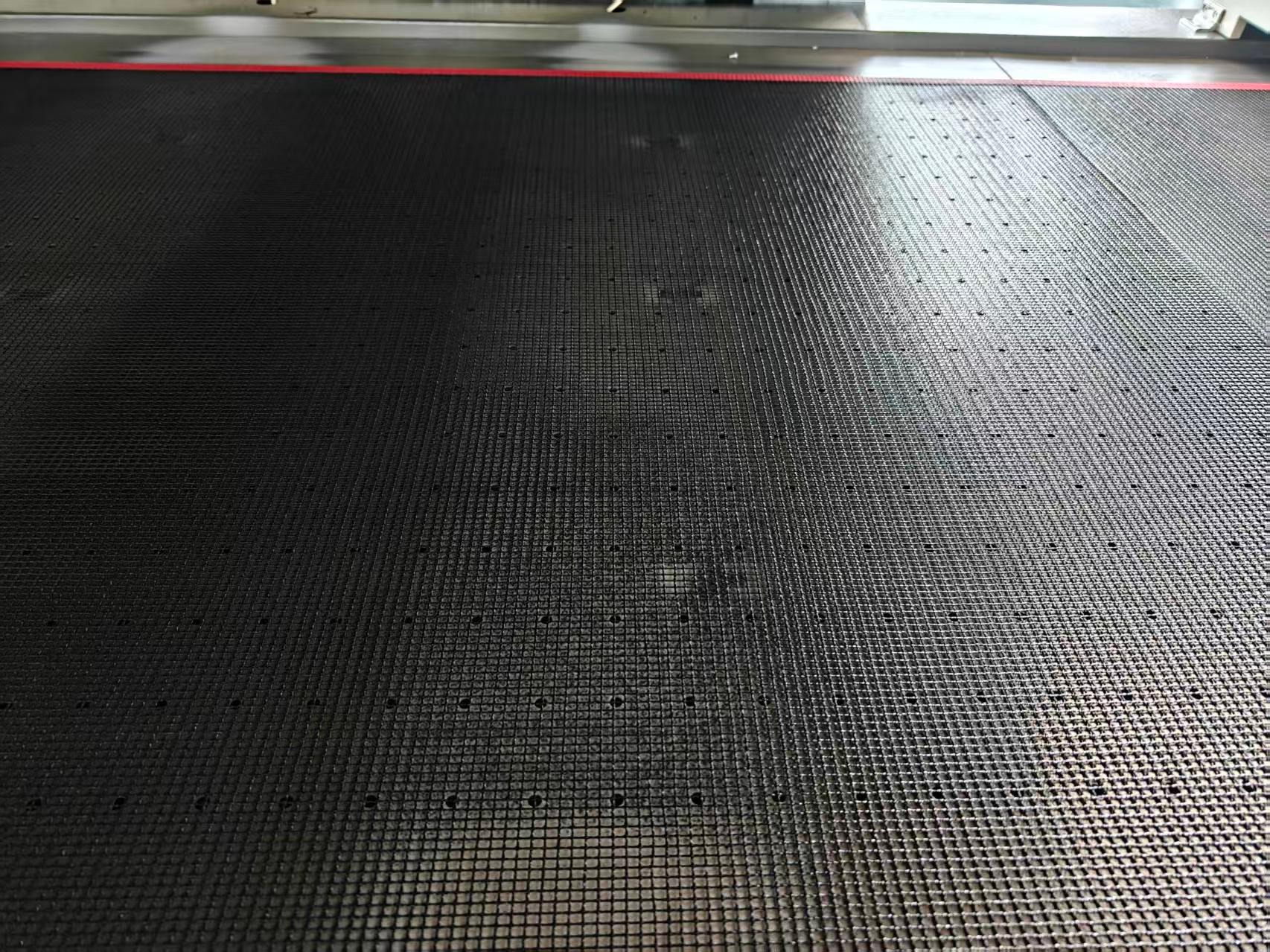

The vacuum table with the holes to make the sheet delivery more stable on the belt

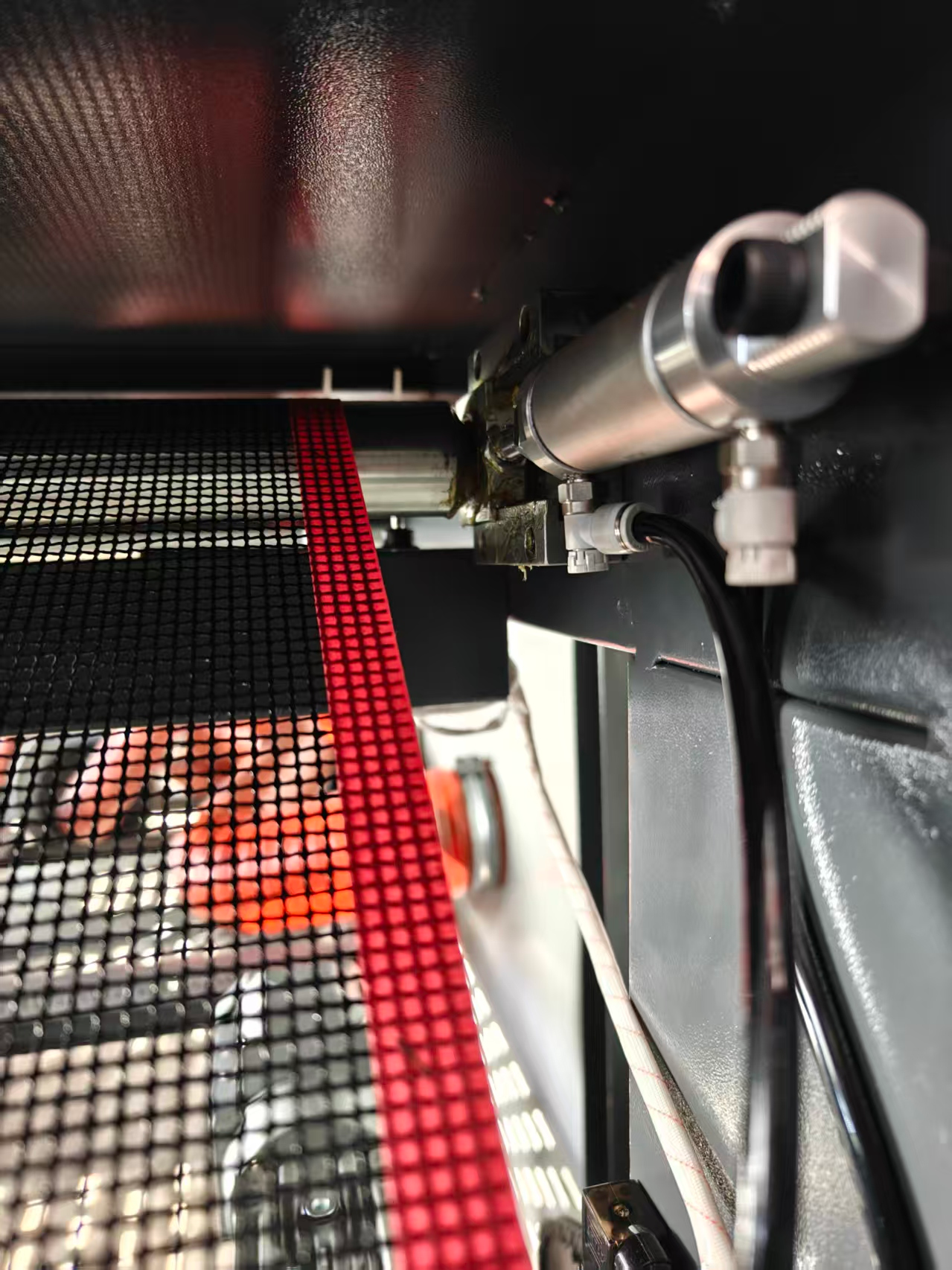

The moving shaft is controlled by the cylinder, to make the belt always keep in the middle, prevent the belt get damaged
