Features

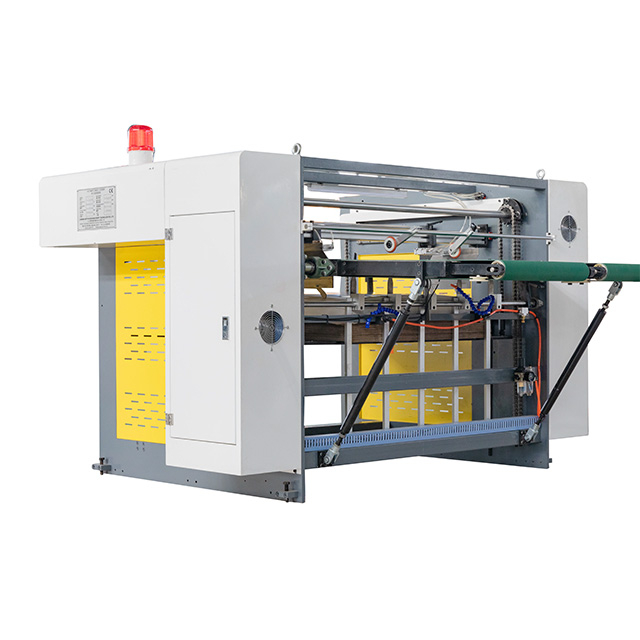

1. This machine is made up of input-bracket mechanism, pushing-paper mechanism, piling-board up-down mechanism and electric control system.
2. Input-bracket mechanism contains conveyor belts and blowing device. The conveyor belts are droved by motor, which speed is adjusted by transducer.
3.The blowing device is used to blow-up the paper to move a distance after leave from the belt. The paper will continue to go ahead by the air flow. Then the blowing is shut off, the paper drop down to the piling-board.
4. The pushing mechanism is drove by pneumatic cylinder. The position of the cylinder is adjusted easily, so as to suit for different size papers.
5.Piling-board up-down mechanism is drove by four synchronous chains from electromagnetic motor. The board can be stopped accurately with a certain level.
6. Electric control system is controlled by PLC. The system is convenient and safety.
Technical Parameters
| Model | GSZ900 | GSZ1050 |
| Max paper size (mm) | 900X650 | 1050X740 |
| Min paper size (mm) | 400X300 | 550X350 |
| Max Pilling height (mm) | 600 | 600 |
| Total power (KW) | 1 | 1 |
| Total weight (Kg) | 600 | 700 |
| Dimension (mm) | 2000x1900x1200 | 2400X2100X1200 |
