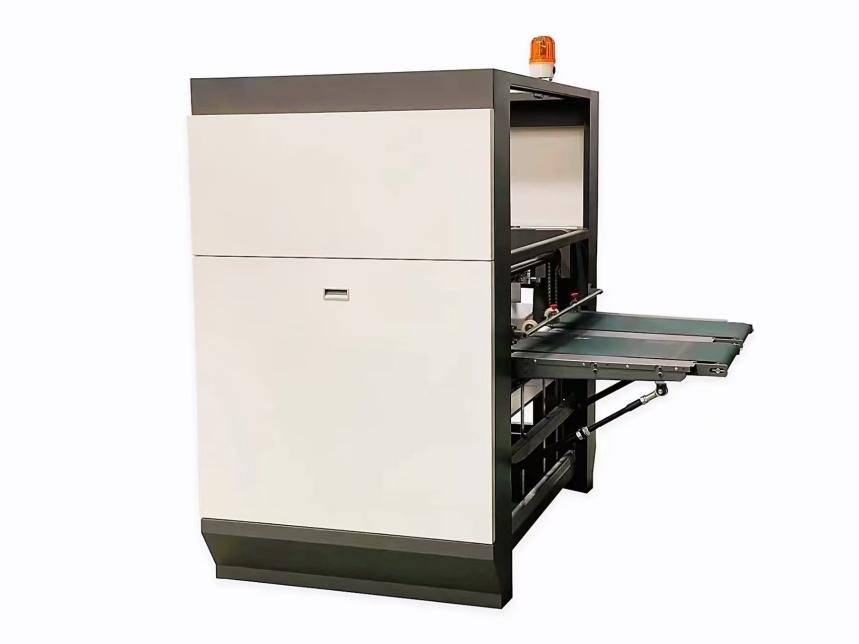

GSZ Automatic sheet Stacker
GSZ sheet stacker is one of accessorial equipment to automatic cylinder screen printing machine, It is used to collect and pile paper which can improve you product efficiency
Features
1. The conveyor belt speed is infinitely adjusted by the frequency converter
2. The paper falling table automatically descends according to the material stacking, and can land directly to the ground, which is convenient for the forklift to load and unload the material
3. The whole paper mechanism adopts double-shaft cylinder to work, which is stable and reliable
4. The electrical control system of the whole machine adopts Chint and Delta control
5. With counting function, can record the receiving number
Technical parameters
Model | GSZ900 | GSZ 1050 | GSZ1300 | GSZ1450 | GSZ1650 |
Max paper size | 900x600mm | 1050x900 mm | 1300x900 mm | 1500x1100 mm | 1650x1350 mm |
Min paper size | 350x270mm | 560x350 mm | 560x350 mm | 700x500 mm | 750x500 mm |
Max speed | 3500 sheet/h | 4000 sheet/h | 4000 sheet/h | 4000 sheet/h | 2500 sheet/h |
Power | 3P 380V 50HZ 1.5KW | 3P 380V 50Hz 1.5KW | 3P 380V 50Hz 2KW | 3P 380V 50Hz 2KW | 3P 380V 50Hz 2KW |
Weight | 600kg | 650kg | 800kg | 1000kg | 1000kg |
Dimension | 1800x1900x1800mm | 2000x2000x1800 mm | 2000x2250x2100mm | 2300x2300x1200mm | 2500x2400x1600 mm |
