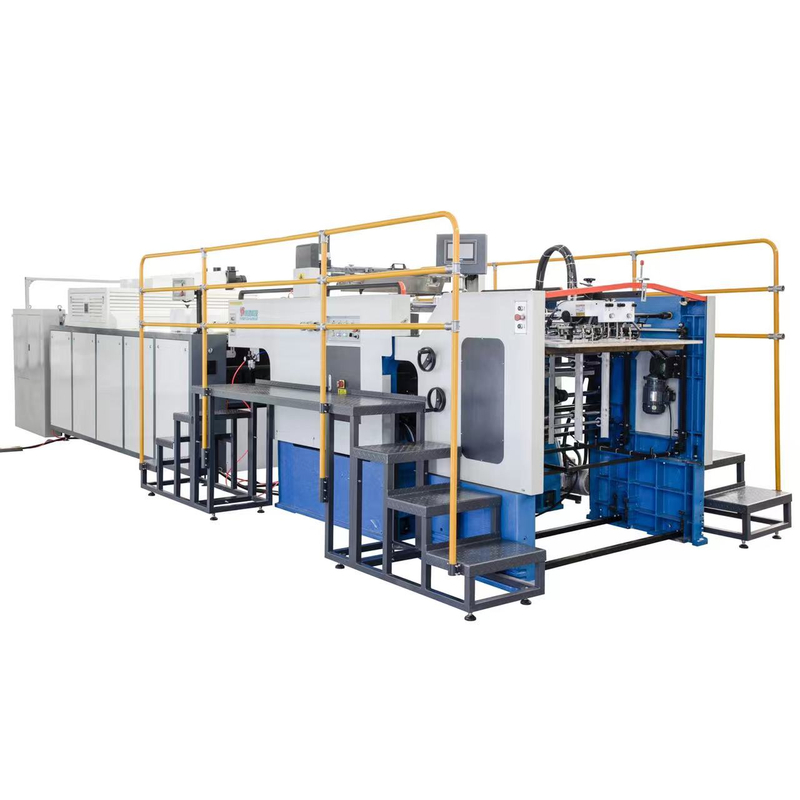

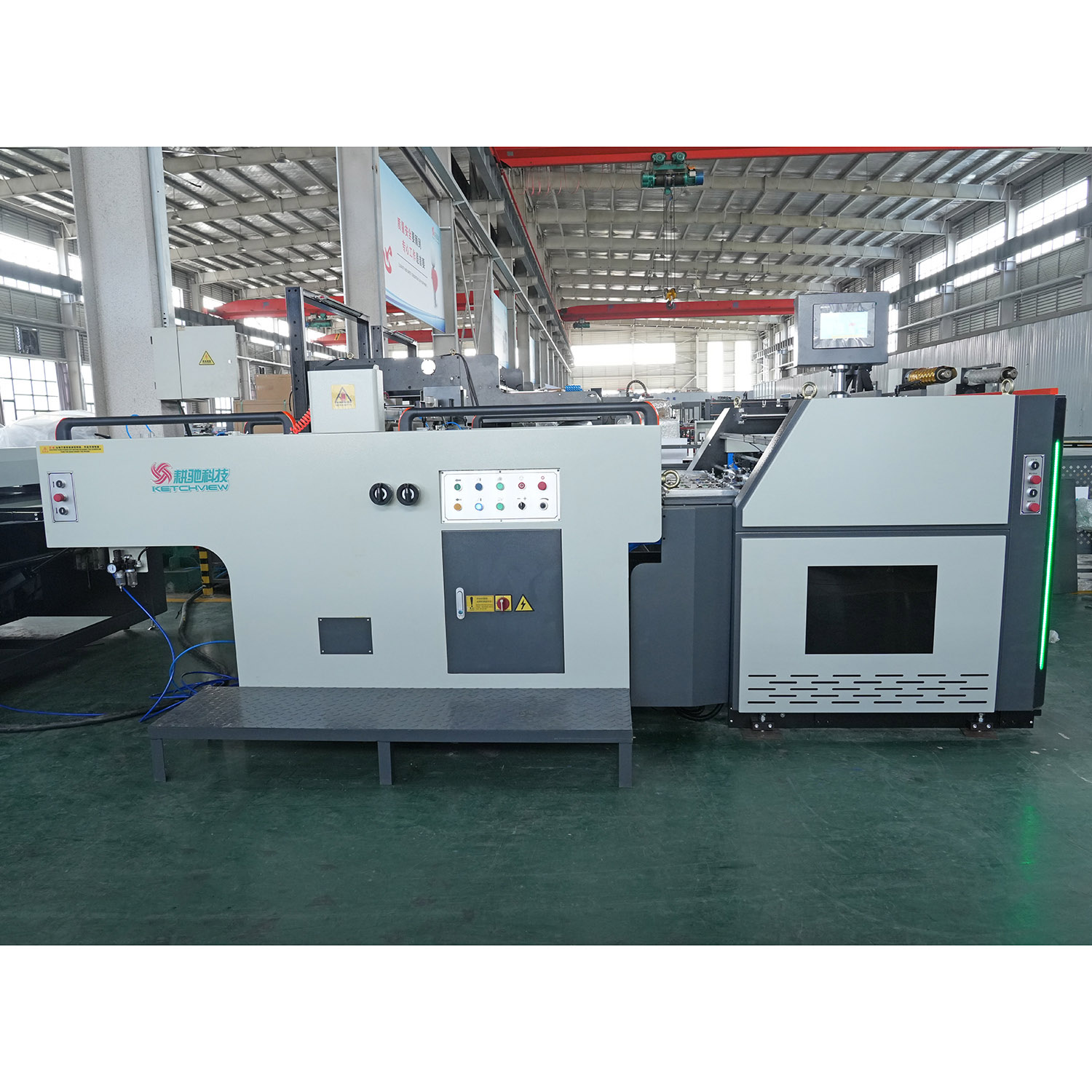

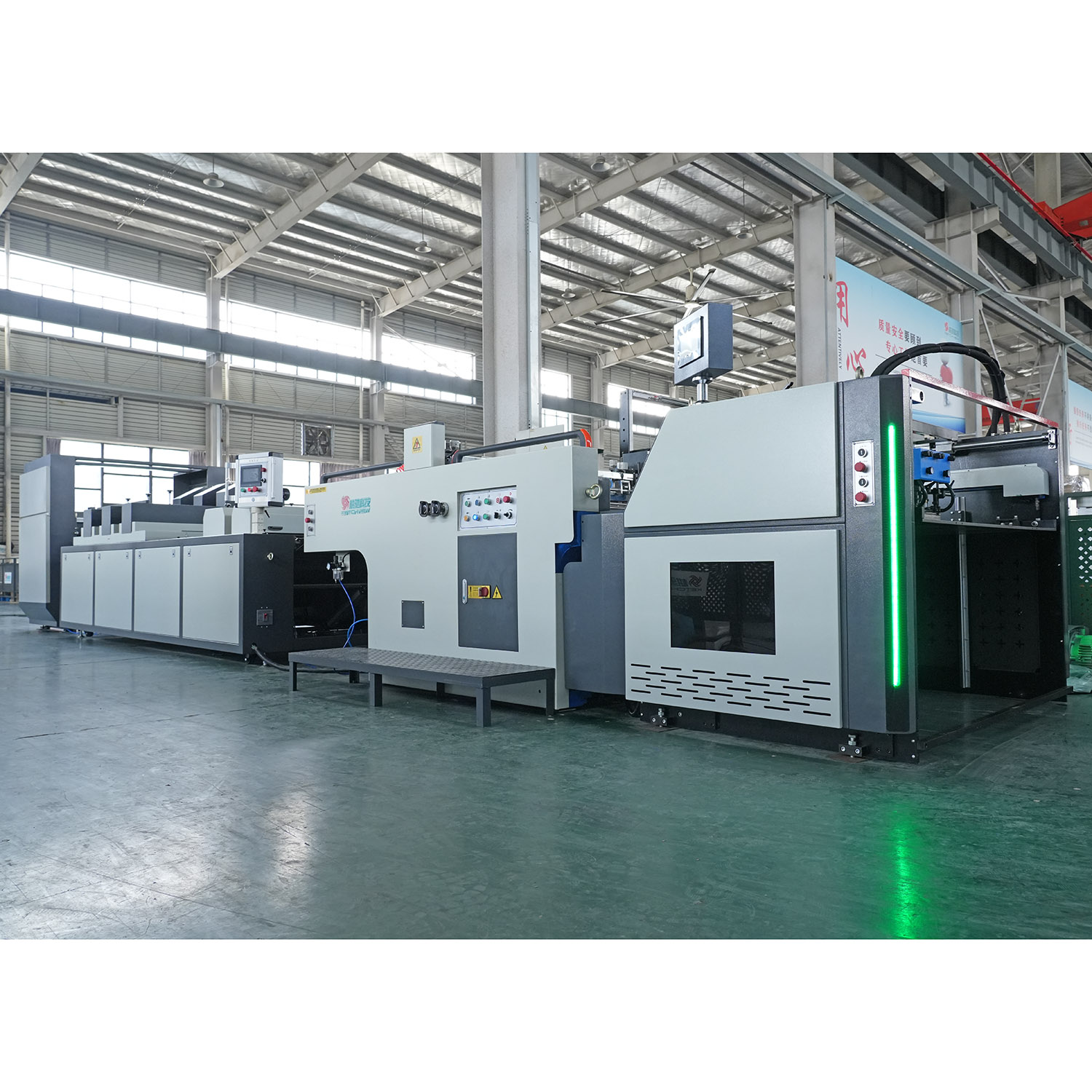

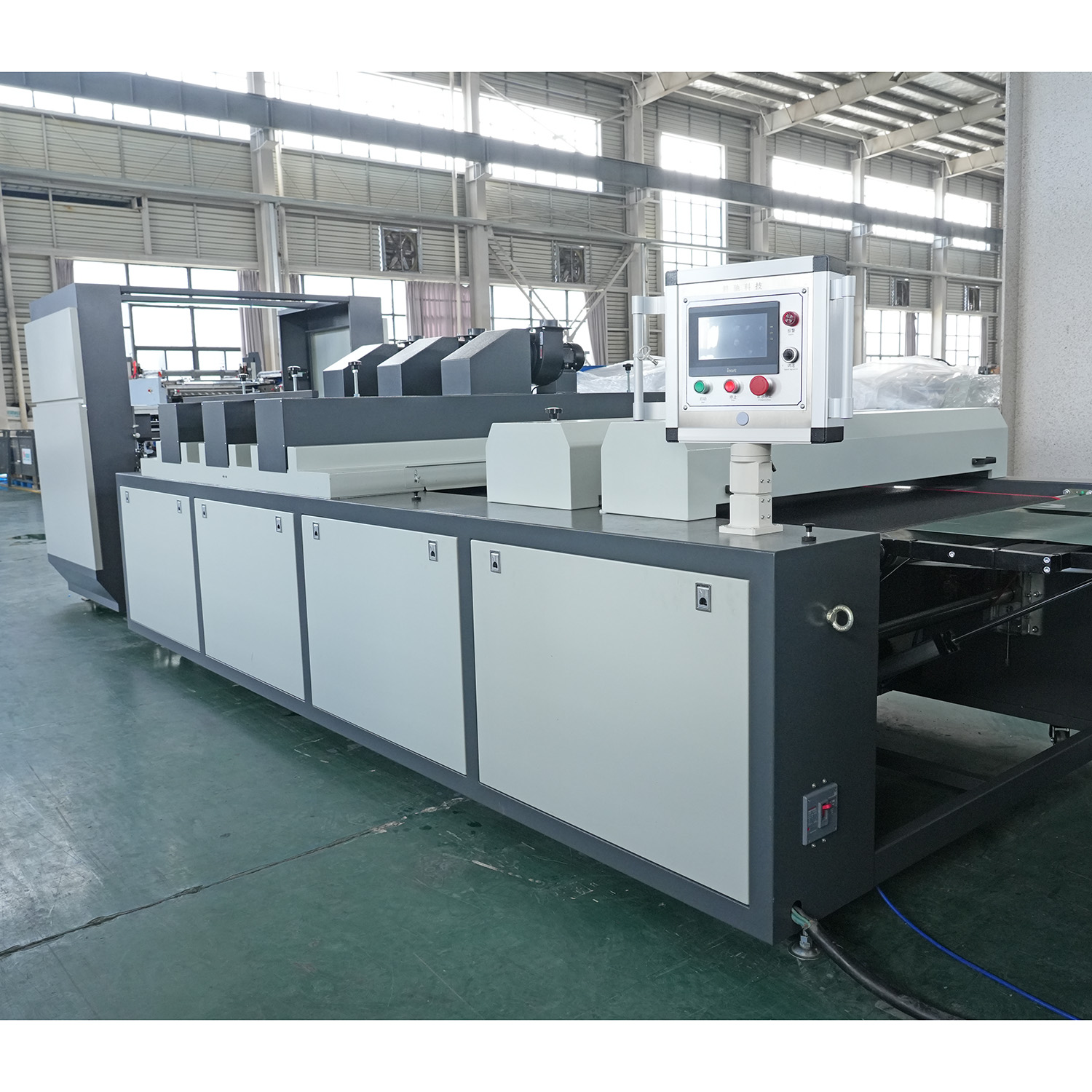

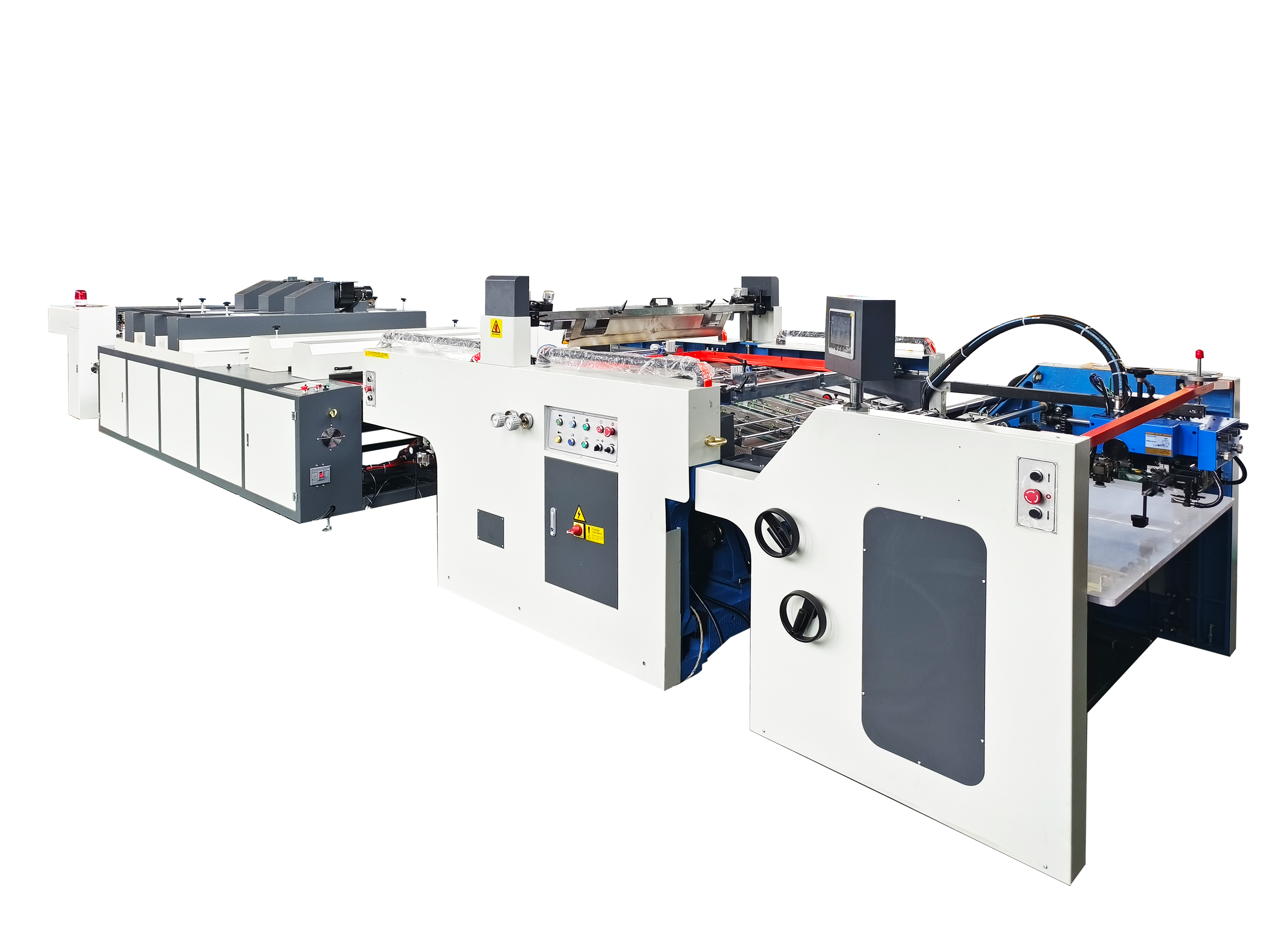

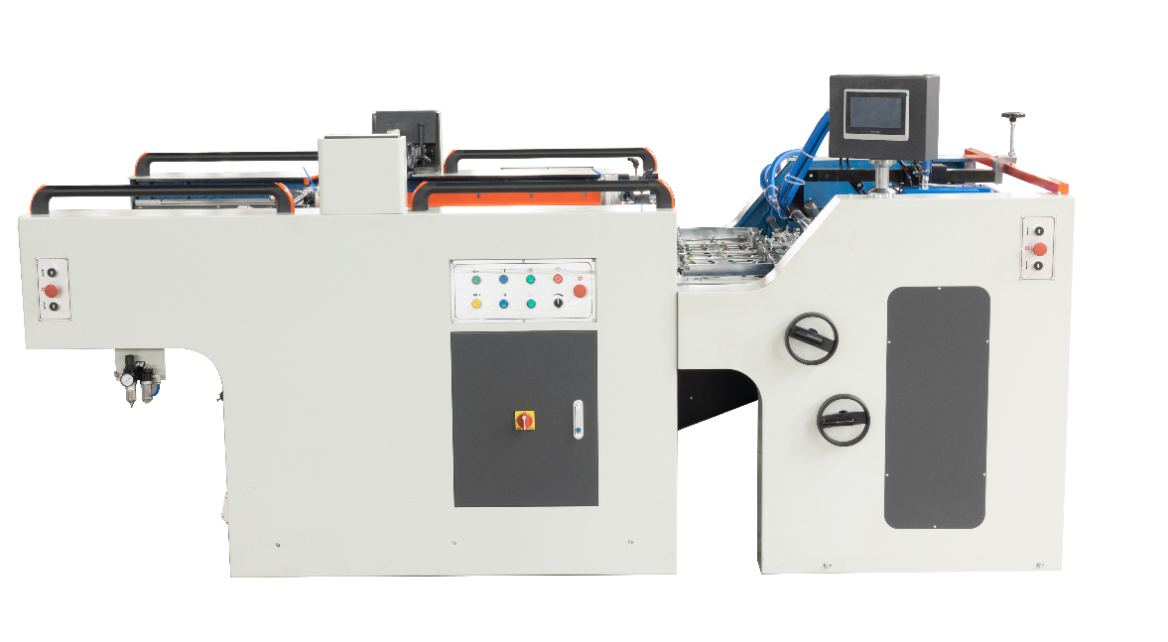

GSP Series Full Automatic Swing Cylinder Screen Printing Spot UV varnish coating line
GSP Series Automatic Swing Cylinder Screen Printing Machine are widely used in printing various semi rigid and flexible materials, such as ceramic decal, cardboard, soft PCB, transfer paper and film switch etc. Because the machine is suitable for many kinds of printings and controlled by easily operation, it wins much honor in the
market.
·The machine is equipped with Japanese MITSUBISHI Frequency Invertor and PLC, which
can control the whole running. More than 90％ imported electric components make the
machine own many prior points :high class, high integration and high stability etc.
·Best monitor system during the whole course of operating ensure the machine's good
registered precision: ≦0.15mm.
·Full and fresh ink layer is up to 30-40mm,which presents high 3D feeling and hard-coating.
·The machine has two feed modes: universal mode and stream mode; the two mode can be
switched freely depending upon different printing size.
·Delivery board can be turned down by 90°.
·The screen frame can be load or unload easily; and the position can be fine adjusted.
·The series can be combined with the dryer to make up one automatic producing-line.
The connect with UV Dryer(refer to our product: GUV Series)to print by UV ink.
| Model | GSP-780 | GSP-1020 | GSP-1450 | GSP-1650 |
| Max. Paper Size | 780X540MM | 1020X740MM | 1450X740MM | 1650X1200MM |
| Min. Paper Size | 350X270MM | 500X350MM | 700X450MM | 1000X700MM |
Max Printing Area | 780X520MM | 1020X720MM | 1450X720MM | 1650X1200MM |
| Paper thickness | 90-350GSM | 120-350GSM | 120-320GSM | 160-320GSM |
| Printing Speed | 500-3300PCS/H | 500X3000PCS/H | 600X2500PCS/H | 600X2000PCS/H |
| Screen Frame Size | 940X940MM | 1280X1140MM | 1680X1140MM | 1920×1630MM |
| Total Power | 7.8KW | 8.2KW | 15KW | 18KW |
| Total Weight | 3800KGS | 4500KGS | 4800KGS | 5800KGS |
| Exterior Dimension | 3100X2020X1270MM | 3600X2350X1320MM | 3600X2750X1320MM | 7250×2650×1700MM |
Features:
1. Driven by variable frequency brake motor, the whole machine is operated under the centralized control of Mitsubishi PLC. The WEINVIEW-touch screen operation interface displays all functional data, making printing operation more simple and convenient;
2. Adapt the automatic optical fiber positioning detection, in case of, paperless and paper stuck, automatically rises and stops to reduce printing paper waste;
3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;
4. The whole electrical components are imported from Schneider, Mitsubishi, Omron, which greatly improves the stability of the electrical system and reduces the maintenance and overhaul
5. The printing cylinder is made of stainless steel 316L, which is precise and durable. Flexible design of the elastic range of the paper teeth, convenient for the printing of different thickness of paper at any time;
6. The exit paper board can be turned 90 degrees, which is easy to clean screen. Screen can be adjusted up and down, front and back, right and left position
7. Centralized lubrication control system: main drive parts are lubricated automatically, which can effectively extend the service precision and machine life. Most of the bearings are used from NTN and NSK brand
Partial description

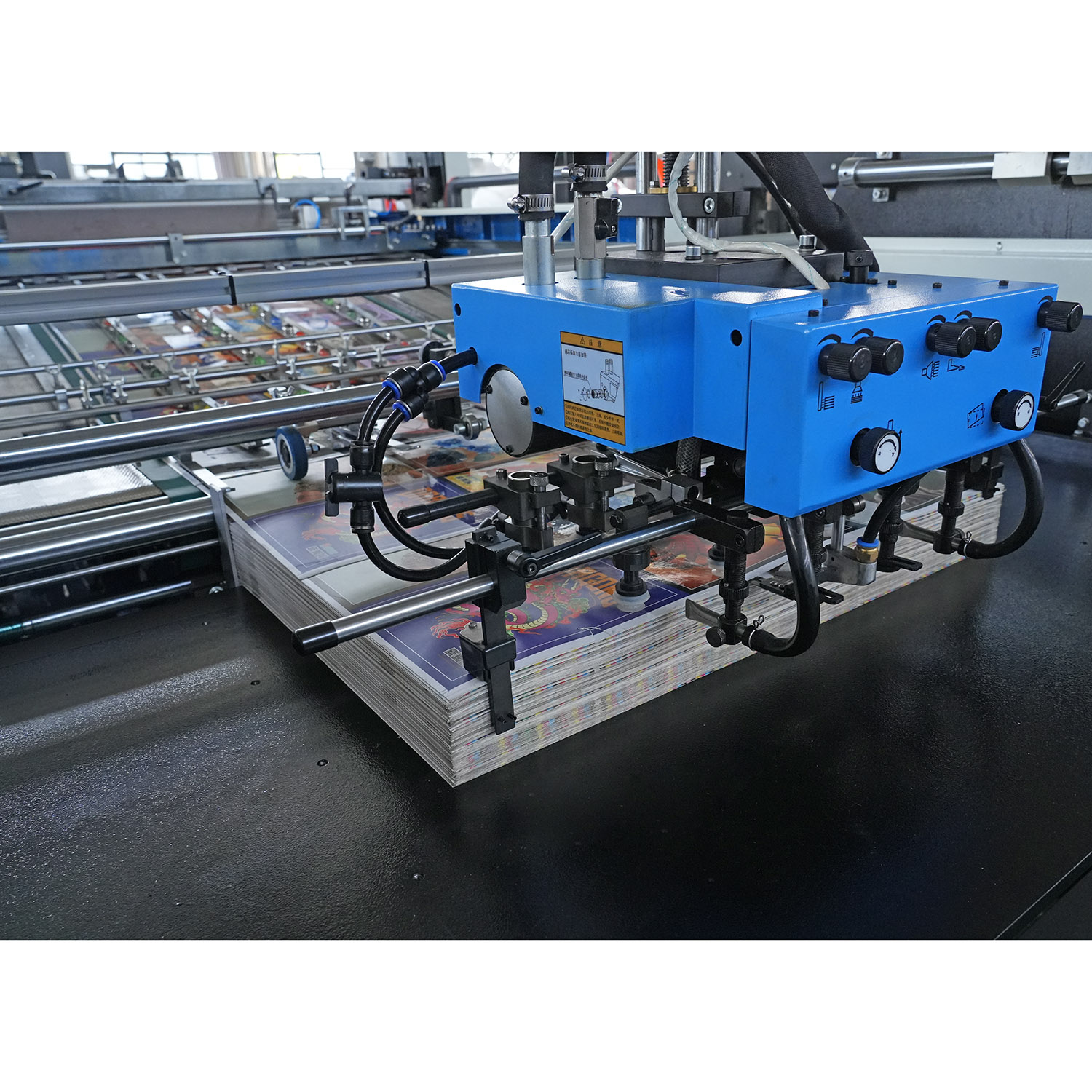

The original rear pick-up feeder technology taken from the offset Press, ensures stable and smooth feeding of various types of substrate. Dependant on the substrate, overlapped or single sheet feed can be selected easily
New designed pull and push lay, suitable for the thin paper and thick paper
Double sheet detector
GUV/IR-1050 UV Drying Machine
The dryer is widely used for drying UV ink printed on paper, PCB. PEC and nameplate of instrument printing etc.
It uses special wave length to solidify the UV ink. Through this reacting, it can give the printing surface high hardness, brightness, anti-attrition and anti-solvent
Main features:
1. The convey or belt is made of TEFLON; it can endure high temperature, attrition and radiation.
2. The stepless speed-adjusting device makes driving more steadily. It can be available to many printing modes whatever handwork, semi-automatic and, high-speed automatic printing.
3. Through two sets of air-blower system, the paper can adhere to the belt firmly.
4. The machine can work in many modes: single-lamp, multi-lamps or half-power solidifying etc, which can save electric power and extend the lamp’s life.
5. The machine has stretching device and automatic rectifying device.
6. There are 4 foot-wheels fixed under the machine which can move the machine easily.
7. Electronic-transformer with stepless power-adjustment
8. UV lamp exhaust, conveyor belt under air suction, conveyor light box exhaust
9. The height of the lamp is adjustable, and the wire grid is pulled down to prevent the burning of jammed paper
10. Equipped with light box opening alarm, paper jam alarm, light box high temperature protection and other safety protection;
Main technical parameter
Model | GUV/IR-1050 |
Convey speed | 0~65m/minute |
UV lamp power | 10 KW×3pcs |
IR lamp power | 1KW x 2pcs |
Wrinkle lamp power | 40W×4pcs |
Effective curing width | 1100 mm |
Total power | 40 KW, 3P, 380V, 50Hz |
Weight | 1200 kg |
Overall size | 4550×1350×1550mm |

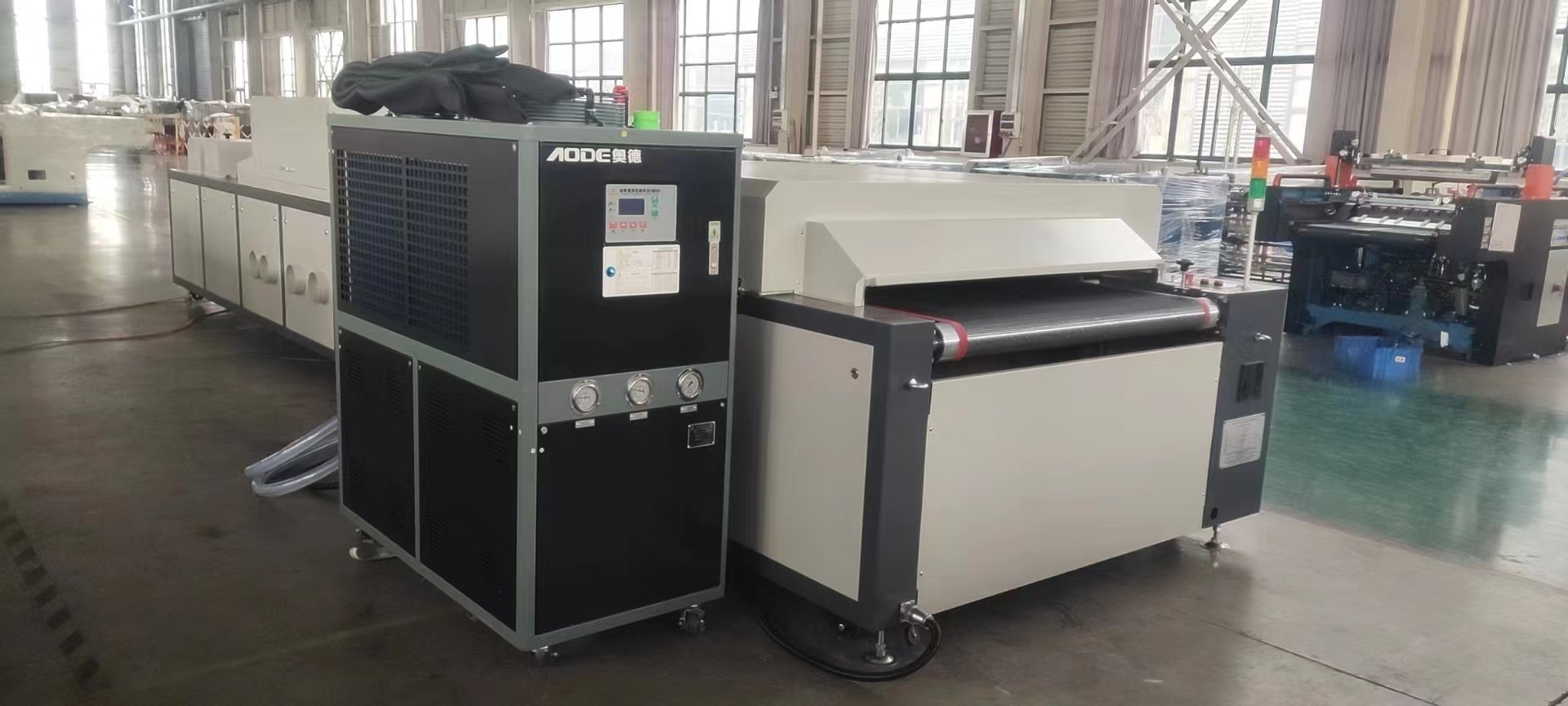

GAC-1050 Cooler
The cooling unit is used with a flat conveying drying channel or a photosolid machine to reduce the temperature of the cured material; The machine group needs to be connected to the external power supply separately, with its own frequency conversion transmission, which can be placed in the drying channel or the back of the light-solid machine for online use, or it can be used alone. The use of blower air supply, high-speed cold air pressure down, to ensure the rapid reduction of material temperature, but also conducive to the smooth transportation of tissue paper; The whole box adopts thermal insulation design to reduce the loss of air conditioning and save energy.
Main technical parameter
Maximum width | 1100mm |
Speed | 0-65 m/min |
Refrigerating medium | R22 |
Power | 5.5 KW |
External dimension | 3100*1800*1300mm |
GSZ-1050 Full Automatic Stacker
GSZ sheet stacker is one of accessorial equipment to automatic cylinder screen printing machine, It is used to collect and pile paper which can improve you product efficiency
Features
1. The conveyor belt speed is infinitely adjusted by the frequency converter
2. The paper falling table automatically descends according to the material stacking, and can land directly to the ground, which is convenient for the forklift to load and unload the material
3. The whole paper mechanism adopts double-shaft cylinder to work, which is stable and reliable
4. The electrical control system of the whole machine adopts Chint and Delta control
5. With counting function, can record the receiving number
Main technical parameters：
Model | GSZ-1050 |
Max.Paper size | 1050×850 mm |
Min.Paper size | 400×350 mm |
Top speed | 5000 sheet/h |
Power | 3P 380V 50Hz 1.5KW (5A) |
Total weight | 650kg |
Overall size | 1400×1700×1200 mm |
