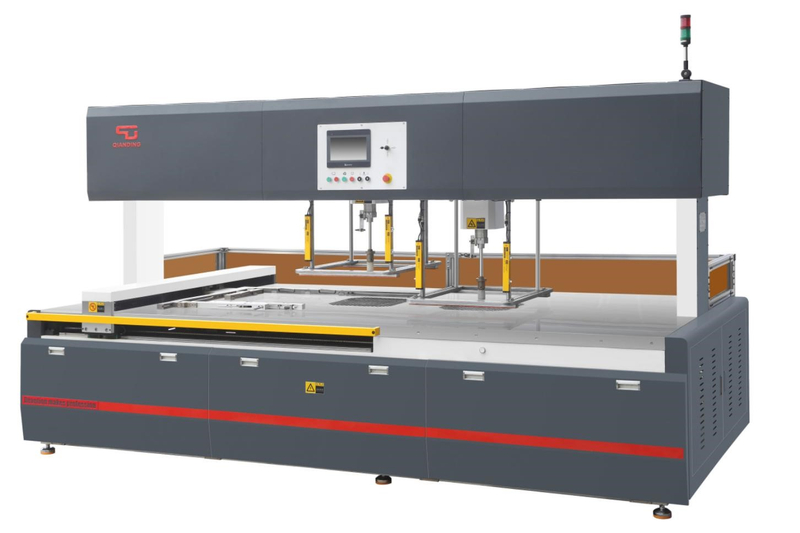

Model: HTQF-1080B
The product is a preferable choice for stripping process after die cutting, such as tags, labels, paper cups, medicine packages, wine packages, cosmetic packages and so on. It saves labor, improve the product quality, and increase the production efficiency.
Centralized lubrication system Paper gauge with hidden motor and ball screw
Adjustable hydraulic system Safety fence
Advantage and improvement
1. Comparing to traditional stripping machine which uses gantry frame as the base for installing the stripping mould, our new design adopts one-side independent standing base for installing the stripping mould; this design is space saving, and convenient for operating.
2. Hidden type servo motor and ball screw ensures a precise pile positioning.
3. Adjustable hydraulic system provides adjustable pressure for processing of different materials of different sizes and weights.
4. Stripping needles (rods) are quick and easy to change to fit differnent products formats and patterns.
5. Automatic lubricating system carries out regular lubrication, which greatlty extend the service life of the machine.
6. The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
7. Safety fence at operation side protects the safety of personnel when the machine is running.
Machine technical parameters | |
Model | HTQF-1080B（Double worktable） |
Machine floor size mm | 3790×1930×2018 |
Maximum stacking size (x) × (y) mm | 1080×780 |
Maximum stacking height mm | 100 |
Minimum stacking height mm | 40 |
Minimum stacking size (x) × (y) mm | 750×550 |
Work table height mm | 850 |
Maximum sampling mm | 450×450 |
Minimum sampling mm | 150×150 |
Fastest pick up (times / min) | 15-22 |
Max. force (bar) | 70 |
Air consumption L/min | 3 |
Maximum power | 5kw/n 380v |
Net weight | 3.5T |
Package size mm | 4000×2150×2150 |
Gross weight | 3.6T |
Three view dimension drawing of HTQF-1080B
